Represents a Mechatronics::CollisionSensor builder. More...

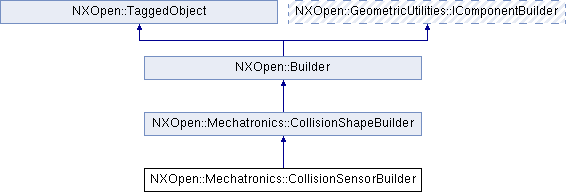

Inheritance diagram for NXOpen::Mechatronics::CollisionSensorBuilder:

Public Types
enum	CollisionShapeTypes { CollisionShapeTypesBox, CollisionShapeTypesSphere, CollisionShapeTypesLine }
	the Trigger Shape Types. More...

enum	ShapePropertiesOption { ShapePropertiesOptionAutomatic, ShapePropertiesOptionUserDefined }
	the Trigger Shape Option. More...

Public Member Functions
int	Category ()
	Returns the category.

NXOpen::Mechatronics::CollisionSensorBuilder::CollisionShapeTypes	CollisionShape ()
	Returns the collision shape type.

NXOpen::SelectNXObjectList *	Geometry ()
	Returns the geometries.

NXString	Name ()
	Returns the name.

void	SetCategory (int category)
	Sets the category.

void	SetCollisionShape (NXOpen::Mechatronics::CollisionSensorBuilder::CollisionShapeTypes collisionShape)
	Sets the collision shape type.

void	SetGeometry (const std::vector< NXOpen::NXObject * > &geometries)
	Sets the geometries.

void	SetName (const NXString &name)
	Sets the name.

void	SetName (const char *name)
	Sets the name.

void	SetShapeProperties (NXOpen::Mechatronics::CollisionSensorBuilder::ShapePropertiesOption shapeProperties)
	Sets the trigger shape option.

NXOpen::Mechatronics::CollisionSensorBuilder::ShapePropertiesOption	ShapeProperties ()
	Returns the trigger shape option.

Public Member Functions inherited from NXOpen::Mechatronics::CollisionShapeBuilder
NXOpen::Point *	CenterPoint ()
	Returns the center point.

NXOpen::Expression *	Height ()
	Returns the height.

NXOpen::Expression *	Length ()
	Returns the length.

NXOpen::CoordinateSystem *	Orientation ()
	Returns the orientation.

NXOpen::Expression *	Radius ()
	Returns the radius.

void	SetCenterPoint (NXOpen::Point *centerPoint)
	Sets the center point.

void	SetOrientation (NXOpen::CoordinateSystem *orientation)
	Sets the orientation.

NXOpen::Expression *	Width ()
	Returns the width.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::CollisionSensor builder.

To create a new instance of this class, use Mechatronics::CollisionSensorCollection::CreateCollisionSensorBuilder

Created in NX7.5.1.

Member Enumeration Documentation

enum NXOpen::Mechatronics::CollisionSensorBuilder::CollisionShapeTypes

the Trigger Shape Types.

Enumerator:

CollisionShapeTypesBox	Box.
CollisionShapeTypesSphere	Sphere.
CollisionShapeTypesLine	Line.

enum NXOpen::Mechatronics::CollisionSensorBuilder::ShapePropertiesOption

the Trigger Shape Option.

Enumerator:

ShapePropertiesOptionAutomatic	Automatic.
ShapePropertiesOptionUserDefined	UserDefined.

Member Function Documentation

int NXOpen::Mechatronics::CollisionSensorBuilder::Category ( )

Returns the category.

It should be between 0 and 16.
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Mechatronics::CollisionSensorBuilder::CollisionShapeTypes NXOpen::Mechatronics::CollisionSensorBuilder::CollisionShape ( )

Returns the collision shape type.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::SelectNXObjectList* NXOpen::Mechatronics::CollisionSensorBuilder::Geometry ( )

Returns the geometries.

This can be a Assemblies::ComponentAssembly , Point , bodies and curves.
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXString NXOpen::Mechatronics::CollisionSensorBuilder::Name ( )

Returns the name.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::CollisionSensorBuilder::SetCategory ( int category )

Sets the category.

It should be between 0 and 16.
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

category category

void NXOpen::Mechatronics::CollisionSensorBuilder::SetCollisionShape ( NXOpen::Mechatronics::CollisionSensorBuilder::CollisionShapeTypes collisionShape )

Sets the collision shape type.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

collisionShape collisionshape

void NXOpen::Mechatronics::CollisionSensorBuilder::SetGeometry ( const std::vector< NXOpen::NXObject * > & geometries )

Sets the geometries.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

geometries Input geometries

void NXOpen::Mechatronics::CollisionSensorBuilder::SetName ( const NXString & name )

Sets the name.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

name name

void NXOpen::Mechatronics::CollisionSensorBuilder::SetName ( const char * name )

Sets the name.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

name name

void NXOpen::Mechatronics::CollisionSensorBuilder::SetShapeProperties ( NXOpen::Mechatronics::CollisionSensorBuilder::ShapePropertiesOption shapeProperties )

Sets the trigger shape option.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

shapeProperties shapeproperties

NXOpen::Mechatronics::CollisionSensorBuilder::ShapePropertiesOption NXOpen::Mechatronics::CollisionSensorBuilder::ShapeProperties ( )

Returns the trigger shape option.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

The documentation for this class was generated from the following file:

Mechatronics_CollisionSensorBuilder.hxx
