NXOpen::Mechatronics::CollisionBodyBuilder Class Reference

Represents a Mechatronics::CollisionBodyBuilder . More...

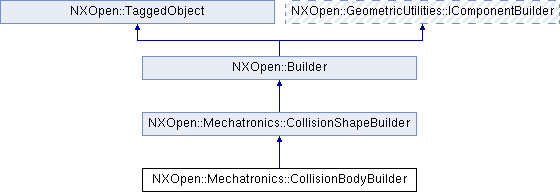

Inheritance diagram for NXOpen::Mechatronics::CollisionBodyBuilder:

Public Types
enum	CollisionShapeTypes {   CollisionShapeTypesBox, CollisionShapeTypesSphere, CollisionShapeTypesCapsule, CollisionShapeTypesConvex,   CollisionShapeTypesMultiConvex, CollisionShapeTypesMesh }
	the collide shape types. More...
enum	ShapePropertyTypes { ShapePropertyTypesAutomatic, ShapePropertyTypesUserDefined }
	the shape calculation option. More...

Public Member Functions
void	CalculateConvex ()
	The convex of the collide.
void	CalculateMesh ()
	The mesh of the collide.
void	CalculateMultiConvex ()
	The multi-convex of the collide.
int	Category ()
	Returns the category.
double	CollisionFactor ()
	Returns the collision factor.
NXOpen::Mechatronics::CollisionMaterial *	CollisionMaterial ()
	Returns the material.
NXOpen::Mechatronics::CollisionBodyBuilder::ShapePropertyTypes	CollisionProperties ()
	Returns the shape option.
NXOpen::Mechatronics::CollisionBodyBuilder::CollisionShapeTypes	CollisionShape ()
	Returns the shape type.
NXOpen::SelectNXObjectList *	Geometry ()
	Returns the geometries.
bool	HighlightOnCollision ()
	Returns the highlight on collision.
NXString	Name ()
	Returns the name.
void	SetCategory (int category)
	Sets the category.
void	SetCollisionFactor (double factor)
	Sets the collision factor.
void	SetCollisionMaterial (NXOpen::Mechatronics::CollisionMaterial *collisionMaterial)
	Sets the material.
void	SetCollisionProperties (NXOpen::Mechatronics::CollisionBodyBuilder::ShapePropertyTypes collisionProperties)
	Sets the shape option.
void	SetCollisionShape (NXOpen::Mechatronics::CollisionBodyBuilder::CollisionShapeTypes collisionShape)
	Sets the shape type.
void	SetGeometry (const std::vector< NXOpen::NXObject * > &geometries)
	Sets the geometry Created in NX7.5.1.
void	SetHighlightOnCollision (bool highlight)
	Sets the highlight on collision.
void	SetName (const NXString &name)
	Sets the name.
void	SetName (const char *name)
	Sets the name.
Public Member Functions inherited from NXOpen::Mechatronics::CollisionShapeBuilder
NXOpen::Point *	CenterPoint ()
	Returns the center point.
NXOpen::Expression *	Height ()
	Returns the height.
NXOpen::Expression *	Length ()
	Returns the length.
NXOpen::CoordinateSystem *	Orientation ()
	Returns the orientation.
NXOpen::Expression *	Radius ()
	Returns the radius.
void	SetCenterPoint (NXOpen::Point *centerPoint)
	Sets the center point.
void	SetOrientation (NXOpen::CoordinateSystem *orientation)
	Sets the orientation.
NXOpen::Expression *	Width ()
	Returns the width.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::CollisionBodyBuilder .

To create a new instance of this class, use Mechatronics::CollisionBodyCollection::CreateCollisionBodyBuilder

Created in NX7.5.1.

Member Enumeration Documentation

enum NXOpen::Mechatronics::CollisionBodyBuilder::CollisionShapeTypes

the collide shape types.

Enumerator:

CollisionShapeTypesBox	Box.
CollisionShapeTypesSphere	Sphere.
CollisionShapeTypesCapsule	Capsule.
CollisionShapeTypesConvex	Convex.
CollisionShapeTypesMultiConvex	Multi-Convex.
CollisionShapeTypesMesh	Mesh.

enum NXOpen::Mechatronics::CollisionBodyBuilder::ShapePropertyTypes

the shape calculation option.

Enumerator:

ShapePropertyTypesAutomatic	automatic
ShapePropertyTypesUserDefined	user defined

Member Function Documentation

void NXOpen::Mechatronics::CollisionBodyBuilder::CalculateConvex

(

)

The convex of the collide.

Call this function to generate convex when Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesConvex .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::CollisionBodyBuilder::CalculateMesh

(

)

The mesh of the collide.

Call this function to generate mesh when Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesMesh .
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::CollisionBodyBuilder::CalculateMultiConvex

(

)

The multi-convex of the collide.

Call this function to generate multi-convex when Mechatronics::CollisionBodyBuilder::CollisionShape is set to Mechatronics::CollisionBodyBuilder::CollisionShapeTypesMultiConvex .
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

int NXOpen::Mechatronics::CollisionBodyBuilder::Category

(

)

Returns the category.

It should be between 0 and 16.
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

double NXOpen::Mechatronics::CollisionBodyBuilder::CollisionFactor

(

)

Returns the collision factor.

It should be between 0 and 1.0.
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Mechatronics::CollisionMaterial* NXOpen::Mechatronics::CollisionBodyBuilder::CollisionMaterial

(

)

Returns the material.

This can be a CollisionMaterial .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Mechatronics::CollisionBodyBuilder::ShapePropertyTypes NXOpen::Mechatronics::CollisionBodyBuilder::CollisionProperties

(

)

Returns the shape option.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Mechatronics::CollisionBodyBuilder::CollisionShapeTypes NXOpen::Mechatronics::CollisionBodyBuilder::CollisionShape

(

)

Returns the shape type.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::SelectNXObjectList* NXOpen::Mechatronics::CollisionBodyBuilder::Geometry

(

)

Returns the geometries.

This can be a Assemblies::ComponentAssembly , Point Face , Edge , bodies and curves.
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

bool NXOpen::Mechatronics::CollisionBodyBuilder::HighlightOnCollision

(

)

Returns the highlight on collision.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXString NXOpen::Mechatronics::CollisionBodyBuilder::Name

(

)

Returns the name.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::CollisionBodyBuilder::SetCategory

(

int

category

)

Sets the category.

It should be between 0 and 16.
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

category

category

void NXOpen::Mechatronics::CollisionBodyBuilder::SetCollisionFactor

(

double

factor

)

Sets the collision factor.

It should be between 0 and 1.0.
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

factor

factor

void NXOpen::Mechatronics::CollisionBodyBuilder::SetCollisionMaterial

(

NXOpen::Mechatronics::CollisionMaterial *

collisionMaterial

)

Sets the material.

This can be a CollisionMaterial .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

collisionMaterial

collisionmaterial

void NXOpen::Mechatronics::CollisionBodyBuilder::SetCollisionProperties

(

NXOpen::Mechatronics::CollisionBodyBuilder::ShapePropertyTypes

collisionProperties

)

Sets the shape option.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

collisionProperties

collisionproperties

void NXOpen::Mechatronics::CollisionBodyBuilder::SetCollisionShape

(

NXOpen::Mechatronics::CollisionBodyBuilder::CollisionShapeTypes

collisionShape

)

Sets the shape type.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

collisionShape

collisionshape

void NXOpen::Mechatronics::CollisionBodyBuilder::SetGeometry

(

const std::vector< NXOpen::NXObject * > &

geometries

)

Sets the geometry
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

geometries

Input geometries

void NXOpen::Mechatronics::CollisionBodyBuilder::SetHighlightOnCollision

(

bool

highlight

)

Sets the highlight on collision.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

highlight

highlight

void NXOpen::Mechatronics::CollisionBodyBuilder::SetName

(

const NXString &

name

)

Sets the name.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

name

name

void NXOpen::Mechatronics::CollisionBodyBuilder::SetName

(

const char *

name

)

Sets the name.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

name

name

---

The documentation for this class was generated from the following file:

• Mechatronics_CollisionBodyBuilder.hxx
