Represents a Mechatronics::BreakingConstraint builder. More...

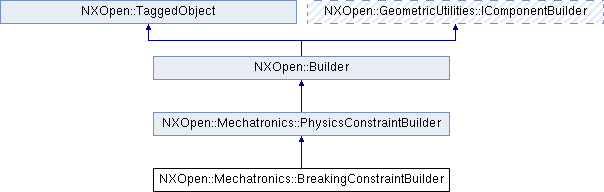

Inheritance diagram for NXOpen::Mechatronics::BreakingConstraintBuilder:

Public Types
enum	BreakingModeType { BreakingModeTypeForce, BreakingModeTypeTorque }
	Represents the breaking mode. More...

Public Member Functions
NXOpen::Mechatronics::BreakingConstraintBuilder::BreakingModeType	BreakingMode ()
	Returns the breaking mode.

NXOpen::Direction *	Direction ()
	Returns the direction.

bool	FixedDirection ()
	Returns the direction is fixed or not.

NXOpen::Mechatronics::SelectPhysicsJoint *	Joint ()
	Returns the joint object.

NXOpen::Expression *	MaximumMagnitude ()
	Returns the maximum allowable magnitude, the joint will be broken if it exceeds this value.

void	SetBreakingMode (NXOpen::Mechatronics::BreakingConstraintBuilder::BreakingModeType breakingMode)
	Sets the breaking mode.

void	SetDirection (NXOpen::Direction *direction)
	Sets the direction.

void	SetFixedDirection (bool fixedDirection)
	Sets the direction is fixed or not.

void	SetJoint (NXOpen::Mechatronics::PhysicsJoint *joint)
	Sets the joint.

Public Member Functions inherited from NXOpen::Mechatronics::PhysicsConstraintBuilder
NXString	Name ()
	Returns the name.

void	SetName (const NXString &name)
	Sets the name.

void	SetName (const char *name)
	Sets the name.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::BreakingConstraint builder.

To create a new instance of this class, use Mechatronics::BreakingConstraintCollection::CreateBreakingConstraintBuilder

Created in NX7.5.1.

Member Enumeration Documentation

enum NXOpen::Mechatronics::BreakingConstraintBuilder::BreakingModeType

Represents the breaking mode.

Enumerator:

BreakingModeTypeForce	Force.
BreakingModeTypeTorque	Torque.

Member Function Documentation

NXOpen::Mechatronics::BreakingConstraintBuilder::BreakingModeType NXOpen::Mechatronics::BreakingConstraintBuilder::BreakingMode ( )

Returns the breaking mode.
