NXOpen::MeasureAngleBuilder Class Reference

Represents a MeasureAngleBuilder
To create a new instance of this class, use MeasureManager::CreateMeasureAngleBuilder

Created in NX5.0.0. More...

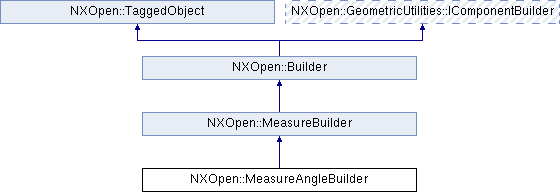

Inheritance diagram for NXOpen::MeasureAngleBuilder:

Public Types
enum	AngleType { AngleTypeThreePoints, AngleTypeTwoObjects, AngleTypeScreenPoints }
	Represents the angle type. More...
enum	ObjectType { ObjectTypeObject, ObjectTypeFeature, ObjectTypeVector }
	Represents the object type. More...
enum	OrientationType { OrientationTypeInnerAngle, OrientationTypeOuterAngle }
	Represents the orientation type. More...
enum	ProjectionType { ProjectionTypeAngle3d, ProjectionTypeAngleXy, ProjectionTypeTrueAngle }
	Represents the projection type. More...
Public Types inherited from NXOpen::MeasureBuilder
enum	AnnotationType { AnnotationTypeNone, AnnotationTypeShowDimension, AnnotationTypeCreateLine, AnnotationTypeCreateCsys }
	Represents the annotation type. More...
enum	RequirementType { RequirementTypeNone, RequirementTypeNew, RequirementTypeExisting }
	Represents the requirement type. More...

Public Member Functions
NXOpen::Point *	BaseEnd ()
	Returns the end point Created in NX5.0.0.
NXOpen::Point *	BasePoint ()
	Returns the base point Created in NX5.0.0.
NXOpen::SelectDisplayableObject *	Feature1 ()
	Returns the feature1 Created in NX5.0.0.
NXOpen::SelectDisplayableObject *	Feature2 ()
	Returns the feature2 Created in NX5.0.0.
bool	IsExact ()
	Returns the exact flag Created in NX7.5.0.
NXOpen::SelectDisplayableObject *	Object1 ()
	Returns the object1 Created in NX5.0.0.
NXOpen::SelectDisplayableObject *	Object2 ()
	Returns the object2 Created in NX5.0.0.
NXOpen::MeasureAngleBuilder::ObjectType	Objtype1 ()
	Returns the otype1 Created in NX5.0.0.
NXOpen::MeasureAngleBuilder::ObjectType	Objtype2 ()
	Returns the otype2 Created in NX5.0.0.
NXOpen::MeasureAngleBuilder::OrientationType	Orientation ()
	Returns the orientation Created in NX5.0.0.
NXOpen::Point *	ProtractorEnd ()
	Returns the protractor end point Created in NX5.0.0.
NXOpen::MeasureAngleBuilder::ProjectionType	Ptype ()
	Returns the ptype Created in NX5.0.0.
void	SetBaseEnd (NXOpen::Point *baseEnd)
	Sets the end point Created in NX5.0.0.
void	SetBasePoint (NXOpen::Point *basePoint)
	Sets the base point Created in NX5.0.0.
void	SetExact (bool isExact)
	Sets the exact flag Created in NX7.5.0.
void	SetObjtype1 (NXOpen::MeasureAngleBuilder::ObjectType objtype)
	Sets the otype1 Created in NX5.0.0.
void	SetObjtype2 (NXOpen::MeasureAngleBuilder::ObjectType objtype)
	Sets the otype2 Created in NX5.0.0.
void	SetOrientation (NXOpen::MeasureAngleBuilder::OrientationType mtype)
	Sets the orientation Created in NX5.0.0.
void	SetProtractorEnd (NXOpen::Point *protractorEnd)
	Sets the protractor end point Created in NX5.0.0.
void	SetPtype (NXOpen::MeasureAngleBuilder::ProjectionType mtype)
	Sets the ptype Created in NX5.0.0.
void	SetVector1 (NXOpen::Direction *vector1)
	Sets the vector1 Created in NX5.0.0.
void	SetVector2 (NXOpen::Direction *vector2)
	Sets the vector2 Created in NX5.0.0.
NXOpen::Direction *	Vector1 ()
	Returns the vector1 Created in NX5.0.0.
NXOpen::Direction *	Vector2 ()
	Returns the vector2 Created in NX5.0.0.
Public Member Functions inherited from NXOpen::MeasureBuilder
NXOpen::MeasureBuilder::AnnotationType	AnnotationMode ()
	Returns the annotation mode Created in NX5.0.0.
bool	InfoWindow ()
	Returns the info window Created in NX5.0.0.
NXOpen::MeasureBuilder::RequirementType	RequirementMode ()
	Returns the requirement mode Created in NX5.0.0.
void	SetAnnotationMode (NXOpen::MeasureBuilder::AnnotationType atype)
	Sets the annotation mode Created in NX5.0.0.
void	SetInfoWindow (bool infoWindow)
	Sets the info window Created in NX5.0.0.
void	SetRequirementMode (NXOpen::MeasureBuilder::RequirementType rtype)
	Sets the requirement mode Created in NX5.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a MeasureAngleBuilder
To create a new instance of this class, use MeasureManager::CreateMeasureAngleBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::MeasureAngleBuilder::AngleType

Represents the angle type.

Enumerator:

AngleTypeThreePoints	three points
AngleTypeTwoObjects	two objects
AngleTypeScreenPoints	screen points

enum NXOpen::MeasureAngleBuilder::ObjectType

Represents the object type.

Enumerator:

ObjectTypeObject	object
ObjectTypeFeature	feature
ObjectTypeVector	vector

enum NXOpen::MeasureAngleBuilder::OrientationType

Represents the orientation type.

Enumerator:

OrientationTypeInnerAngle	inner angle
OrientationTypeOuterAngle	outer angle

enum NXOpen::MeasureAngleBuilder::ProjectionType

Represents the projection type.

Enumerator:

ProjectionTypeAngle3d	angle3d
ProjectionTypeAngleXy	angle xy
ProjectionTypeTrueAngle	true angle

Member Function Documentation

NXOpen::Point* NXOpen::MeasureAngleBuilder::BaseEnd

(

)

Returns the end point
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

NXOpen::Point* NXOpen::MeasureAngleBuilder::BasePoint

(

)

Returns the base point
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

NXOpen::SelectDisplayableObject* NXOpen::MeasureAngleBuilder::Feature1

(

)

Returns the feature1
Created in NX5.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::MeasureAngleBuilder::Feature2

(

)

Returns the feature2
Created in NX5.0.0.

License requirements : None

bool NXOpen::MeasureAngleBuilder::IsExact

(

)

Returns the exact flag
Created in NX7.5.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::MeasureAngleBuilder::Object1

(

)

Returns the object1
Created in NX5.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::MeasureAngleBuilder::Object2

(

)

Returns the object2
Created in NX5.0.0.

License requirements : None

NXOpen::MeasureAngleBuilder::ObjectType NXOpen::MeasureAngleBuilder::Objtype1

(

)

Returns the otype1
Created in NX5.0.0.

License requirements : None

NXOpen::MeasureAngleBuilder::ObjectType NXOpen::MeasureAngleBuilder::Objtype2

(

)

Returns the otype2
Created in NX5.0.0.

License requirements : None

NXOpen::MeasureAngleBuilder::OrientationType NXOpen::MeasureAngleBuilder::Orientation

(

)

Returns the orientation
Created in NX5.0.0.

License requirements : None

NXOpen::Point* NXOpen::MeasureAngleBuilder::ProtractorEnd

(

)

Returns the protractor end point
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

NXOpen::MeasureAngleBuilder::ProjectionType NXOpen::MeasureAngleBuilder::Ptype

(

)

Returns the ptype
Created in NX5.0.0.

License requirements : None

void NXOpen::MeasureAngleBuilder::SetBaseEnd

(

NXOpen::Point *

baseEnd

)

Sets the end point
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

baseEnd

baseend

void NXOpen::MeasureAngleBuilder::SetBasePoint

(

NXOpen::Point *

basePoint

)

Sets the base point
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

basePoint

basepoint

void NXOpen::MeasureAngleBuilder::SetExact

(

bool

isExact

)

Sets the exact flag
Created in NX7.5.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

isExact

isexact

void NXOpen::MeasureAngleBuilder::SetObjtype1

(

NXOpen::MeasureAngleBuilder::ObjectType

objtype

)

Sets the otype1
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

objtype

objtype

void NXOpen::MeasureAngleBuilder::SetObjtype2

(

NXOpen::MeasureAngleBuilder::ObjectType

objtype

)

Sets the otype2
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

objtype

objtype

void NXOpen::MeasureAngleBuilder::SetOrientation

(

NXOpen::MeasureAngleBuilder::OrientationType

mtype

)

Sets the orientation
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

mtype

mtype

void NXOpen::MeasureAngleBuilder::SetProtractorEnd

(

NXOpen::Point *

protractorEnd

)

Sets the protractor end point
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

protractorEnd

protractorend

void NXOpen::MeasureAngleBuilder::SetPtype

(

NXOpen::MeasureAngleBuilder::ProjectionType

mtype

)

Sets the ptype
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

mtype

mtype

void NXOpen::MeasureAngleBuilder::SetVector1

(

NXOpen::Direction *

vector1

)

Sets the vector1
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

vector1

vector1

void NXOpen::MeasureAngleBuilder::SetVector2

(

NXOpen::Direction *

vector2

)

Sets the vector2
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

vector2

vector2

NXOpen::Direction* NXOpen::MeasureAngleBuilder::Vector1

(

)

Returns the vector1
Created in NX5.0.0.

License requirements : None

NXOpen::Direction* NXOpen::MeasureAngleBuilder::Vector2

(

)

Returns the vector2
Created in NX5.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• MeasureAngleBuilder.hxx
