Represents a GeometricUtilities::TriangularFrameBuilder. More...

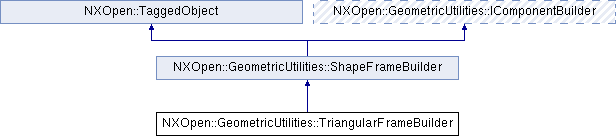

Inheritance diagram for NXOpen::GeometricUtilities::TriangularFrameBuilder:
Public Types | |
| enum | Subtypes { SubtypesArbitrary, SubtypesIsosceles, SubtypesEquilateral, SubtypesRightangle } |
| Represents the triangular frame subtypes. More... | |
 Public Types inherited from NXOpen::GeometricUtilities::ShapeFrameBuilder | |
| enum | AnchorAttachmentType { AnchorAttachmentTypeNone, AnchorAttachmentTypeCenter, AnchorAttachmentTypeVertex1, AnchorAttachmentTypeVertex2, AnchorAttachmentTypeVertex3, AnchorAttachmentTypeVertex4 } |
| Represents the anchor attachment type. More... | |
Public Member Functions | |
| void | SetSubtype (NXOpen::GeometricUtilities::TriangularFrameBuilder::Subtypes subtype) |
| Sets the subtype Created in NX6.0.0. | |
| NXOpen::GeometricUtilities::TriangularFrameBuilder::Subtypes | Subtype () |
| Returns the subtype Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::GeometricUtilities::ShapeFrameBuilder | |
| NXOpen::GeometricUtilities::AnchorLocatorBuilder * | Anchor () |
| Returns the anchor of the frame Created in NX6.0.0. | |
| NXOpen::GeometricUtilities::ShapeFrameBuilder::AnchorAttachmentType | AnchorAttachment () |
| Returns the anchor attachment Created in NX6.0.0. | |
| NXOpen::Point2d | GetMidpointCoords (int index) |
| Gets the coordinates of the i-th midpoint of the frame with respect to the plane. | |
| NXOpen::Point2d | GetVertexCoords (int index) |
| Gets the coordinates of the i-th vertex of the frame with respect to the plane. | |
| int | NumberVertices () |
| Returns the number of vertices of the frame Created in NX6.0.0. | |
| void | SetAnchorAttachment (NXOpen::GeometricUtilities::ShapeFrameBuilder::AnchorAttachmentType anchorAttachment) |
| Sets the anchor attachment Created in NX6.0.0. | |
| void | SetMidpointCoords (int index, const NXOpen::Point2d &coords) |
| Sets the coordinates of the i-th midpoint of the frame with respect to the plane Created in NX6.0.0. | |
| void | SetVertexCoords (int index, const NXOpen::Point2d &coords) |
| Sets the coordinates of the i-th vertex of the frame with respect to the plane Created in NX6.0.0. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a GeometricUtilities::TriangularFrameBuilder.
Created in NX6.0.0.
Member Enumeration Documentation
Member Function Documentation
| void NXOpen::GeometricUtilities::TriangularFrameBuilder::SetSubtype | ( | NXOpen::GeometricUtilities::TriangularFrameBuilder::Subtypes | subtype | ) |
Sets the subtype
Created in NX6.0.0.
License requirements : None
- Parameters
-
subtype subtype
| NXOpen::GeometricUtilities::TriangularFrameBuilder::Subtypes NXOpen::GeometricUtilities::TriangularFrameBuilder::Subtype | ( | ) |
Returns the subtype
Created in NX6.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- GeometricUtilities_TriangularFrameBuilder.hxx
