NXOpen::GeometricUtilities::ShapeFrameBuilder Class Reference

Represents a GeometricUtilities::ShapeFrameBuilder
Created in NX6.0.0. More...

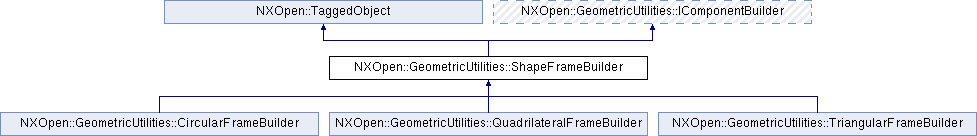

Inheritance diagram for NXOpen::GeometricUtilities::ShapeFrameBuilder:

Public Types
enum	AnchorAttachmentType {   AnchorAttachmentTypeNone, AnchorAttachmentTypeCenter, AnchorAttachmentTypeVertex1, AnchorAttachmentTypeVertex2,   AnchorAttachmentTypeVertex3, AnchorAttachmentTypeVertex4 }
	Represents the anchor attachment type. More...

Public Member Functions
NXOpen::GeometricUtilities::AnchorLocatorBuilder *	Anchor ()
	Returns the anchor of the frame Created in NX6.0.0.
NXOpen::GeometricUtilities::ShapeFrameBuilder::AnchorAttachmentType	AnchorAttachment ()
	Returns the anchor attachment Created in NX6.0.0.
NXOpen::Point2d	GetMidpointCoords (int index)
	Gets the coordinates of the i-th midpoint of the frame with respect to the plane.
NXOpen::Point2d	GetVertexCoords (int index)
	Gets the coordinates of the i-th vertex of the frame with respect to the plane.
int	NumberVertices ()
	Returns the number of vertices of the frame Created in NX6.0.0.
void	SetAnchorAttachment (NXOpen::GeometricUtilities::ShapeFrameBuilder::AnchorAttachmentType anchorAttachment)
	Sets the anchor attachment Created in NX6.0.0.
void	SetMidpointCoords (int index, const NXOpen::Point2d &coords)
	Sets the coordinates of the i-th midpoint of the frame with respect to the plane Created in NX6.0.0.
void	SetVertexCoords (int index, const NXOpen::Point2d &coords)
	Sets the coordinates of the i-th vertex of the frame with respect to the plane Created in NX6.0.0.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a GeometricUtilities::ShapeFrameBuilder
Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricUtilities::ShapeFrameBuilder::AnchorAttachmentType

Represents the anchor attachment type.

Enumerator:

AnchorAttachmentTypeNone	Anchor is not attached to the frame.
AnchorAttachmentTypeCenter	Anchor is attached to the center of the frame.
AnchorAttachmentTypeVertex1	Anchor is attached to the first vertex of the frame.
AnchorAttachmentTypeVertex2	Anchor is attached to the second vertex of the frame.
AnchorAttachmentTypeVertex3	Anchor is attached to the third vertex of the frame.
AnchorAttachmentTypeVertex4	Anchor is attached to the fourth vertex of the frame.

Member Function Documentation

NXOpen::GeometricUtilities::AnchorLocatorBuilder* NXOpen::GeometricUtilities::ShapeFrameBuilder::Anchor

(

)

Returns the anchor of the frame
Created in NX6.0.0.

License requirements : None

NXOpen::GeometricUtilities::ShapeFrameBuilder::AnchorAttachmentType NXOpen::GeometricUtilities::ShapeFrameBuilder::AnchorAttachment

(

)

Returns the anchor attachment
Created in NX6.0.0.

License requirements : None

NXOpen::Point2d NXOpen::GeometricUtilities::ShapeFrameBuilder::GetMidpointCoords

(

int

index

)

Gets the coordinates of the i-th midpoint of the frame with respect to the plane.

Returns

coordinates of midpoint relative with respect to plane
Created in NX6.0.0.

License requirements : None

Parameters

index

index of midpoint

NXOpen::Point2d NXOpen::GeometricUtilities::ShapeFrameBuilder::GetVertexCoords

(

int

index

)

Gets the coordinates of the i-th vertex of the frame with respect to the plane.

Returns

coordinates of vertex relative with respect to plane
Created in NX6.0.0.

License requirements : None

Parameters

index

index of vertex

int NXOpen::GeometricUtilities::ShapeFrameBuilder::NumberVertices

(

)

Returns the number of vertices of the frame
Created in NX6.0.0.

License requirements : None

void NXOpen::GeometricUtilities::ShapeFrameBuilder::SetAnchorAttachment

(

NXOpen::GeometricUtilities::ShapeFrameBuilder::AnchorAttachmentType

anchorAttachment

)

Sets the anchor attachment
Created in NX6.0.0.

License requirements : None

Parameters

anchorAttachment

anchorattachment

void NXOpen::GeometricUtilities::ShapeFrameBuilder::SetMidpointCoords	(	int	index,
		const NXOpen::Point2d &	coords
	)

Sets the coordinates of the i-th midpoint of the frame with respect to the plane
Created in NX6.0.0.

License requirements : None

Parameters

index	index of midpoint
coords	coordinates of midpoint relative with respect to plane

void NXOpen::GeometricUtilities::ShapeFrameBuilder::SetVertexCoords	(	int	index,
		const NXOpen::Point2d &	coords
	)

Sets the coordinates of the i-th vertex of the frame with respect to the plane
Created in NX6.0.0.

License requirements : None

Parameters

index	index of vertex
coords	coordinates of vertex relative with respect to plane

virtual bool NXOpen::GeometricUtilities::ShapeFrameBuilder::Validate ( )

virtual

Validate whether the inputs to the component are sufficient for commit to be called.

If the component is not in a state to commit then an exception is thrown. For example, if the component requires you to set some property, this method will throw an exception if you haven't set it. This method throws a not-yet-implemented NXException for some components.

Returns

Was self validation successful
Created in NX3.0.1.

License requirements : None

Implements NXOpen::GeometricUtilities::IComponentBuilder.

---

The documentation for this class was generated from the following file:

• GeometricUtilities_ShapeFrameBuilder.hxx
