Represents a law node with transition type. More...

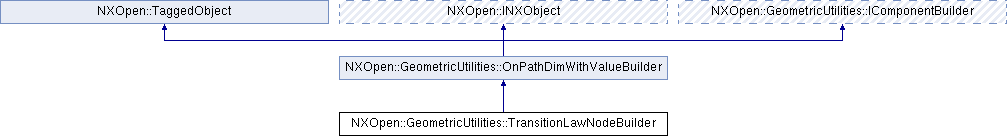

Inheritance diagram for NXOpen::GeometricUtilities::TransitionLawNodeBuilder:

Public Types
enum	TransitionType { TransitionTypeUnknown, TransitionTypeConstant, TransitionTypeLinear, TransitionTypeBlend, TransitionTypeMinmax }
	Represents a transition type at a law node. More...

Public Member Functions
void	SetTransition (NXOpen::GeometricUtilities::TransitionLawNodeBuilder::TransitionType transition)
	Sets the transition type Created in NX6.0.0.

NXOpen::GeometricUtilities::TransitionLawNodeBuilder::TransitionType	Transition ()
	Returns the transition type Created in NX6.0.0.

Public Member Functions inherited from NXOpen::GeometricUtilities::OnPathDimWithValueBuilder
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	InheritLocation (NXOpen::GeometricUtilities::OnPathDimWithValueBuilder *sourceBuilder)
	Inherits location data of a GeometricUtilities::OnPathDimWithValueBuilder object Created in NX8.0.0.

void	InheritValue (NXOpen::GeometricUtilities::OnPathDimWithValueBuilder *sourceBuilder)
	Inherits value of a GeometricUtilities::OnPathDimWithValueBuilder object Created in NX8.0.0.

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

NXOpen::GeometricUtilities::OnPathDimensionBuilder *	Location ()
	Returns the location on path Created in NX5.0.0.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

NXOpen::Expression *	Value ()
	Returns the value expression Created in NX5.0.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents a law node with transition type.

   This class extends @link GeometricUtilities::OnPathDimWithValueBuilder GeometricUtilities::OnPathDimWithValueBuilder@endlink  such
   that apart from specifying a value at a location on spine, it allows specification of transition type.
   This class represents a law node in @link GeometricUtilities::MultiTransitionLawBuilder GeometricUtilities::MultiTransitionLawBuilder@endlink

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricUtilities::TransitionLawNodeBuilder::TransitionType

Represents a transition type at a law node.

Transition type is a type of interpolation used to evaluate intermediate values from one law node to the next law node. The transition is applied in the direction of the spine on which the law nodes reside. Not all nodes support all types of transitions. Consult the referencing law class documentation to see which transition types are supported by which law nodes.

Enumerator:

TransitionTypeUnknown	No interpolation type.
TransitionTypeConstant	Constant transition.
TransitionTypeLinear	Linear transition.
TransitionTypeBlend	Smooth blended transition.
TransitionTypeMinmax	Minimum-Maximum type transition.

Member Function Documentation

void NXOpen::GeometricUtilities::TransitionLawNodeBuilder::SetTransition ( NXOpen::GeometricUtilities::TransitionLawNodeBuilder::TransitionType transition )

Sets the transition type
Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR free_form_modeling ("FREE-FORM MODELING") OR studio_free_form ("STUDIO FREE FORM")

Parameters

transition transition

NXOpen::GeometricUtilities::TransitionLawNodeBuilder::TransitionType NXOpen::GeometricUtilities::TransitionLawNodeBuilder::Transition ( )

Returns the transition type
Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR free_form_modeling ("FREE-FORM MODELING") OR studio_free_form ("STUDIO FREE FORM")

The documentation for this class was generated from the following file:

GeometricUtilities_TransitionLawNodeBuilder.hxx
