enables the ability to apply delta transforms on individual instances of a pattern within the pattern feature <br> To create a new instance of this class, use @link GeometricUtilities::PatternDefinition::CreateClockingBuilder GeometricUtilities::PatternDefinition::CreateClockingBuilder @endlink <br>
Default values. More...
Public Types | |
| enum | ClockingType { ClockingTypeWithinPatternDefinitionLinear, ClockingTypeWithinPatternDefinitionCircular, ClockingTypeUserDefined } |
| type of pattern clocking to transform individual instances More... | |
Public Member Functions | |
| void | AddInstance (int index1, int index2) |
| Adds an instance that will get this clocking Created in NX8.0.0. | |
| NXOpen::Expression * | AngularDelta () |
| Returns the angular delta for circular clocking Created in NX8.0.0. | |
| NXOpen::GeometricUtilities::PatternClockingBuilder::ClockingType | ClockType () |
| Returns the clocking enum to determine if linear or angular clocking Created in NX8.0.0. | |
| NXOpen::Expression * | Direction1Delta () |
| Returns the x direction delta for linear clocking Created in NX8.0.0. | |
| NXOpen::Expression * | Direction2Delta () |
| Returns the y direction delta for linear clocking Created in NX8.0.0. | |
| NXOpen::GeometricUtilities::ModlMotion * | Motion () |
| Returns the user defined transform motion Created in NX8.0.0. | |
| NXOpen::Expression * | RadialDelta () |
| Returns the radial delta for circular clocking Created in NX8.0.0. | |
| void | RemoveInstance (int index1, int index2) |
| Removes an instance from this clocking Created in NX8.0.0. | |
| void | SetClockType (NXOpen::GeometricUtilities::PatternClockingBuilder::ClockingType clockType) |
| Sets the clocking enum to determine if linear or angular clocking Created in NX8.0.0. | |

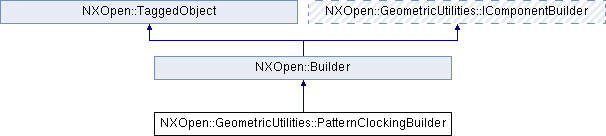

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
enables the ability to apply delta transforms on individual instances of a pattern within the pattern feature <br> To create a new instance of this class, use @link GeometricUtilities::PatternDefinition::CreateClockingBuilder GeometricUtilities::PatternDefinition::CreateClockingBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
Motion.DeltaEnum |
ReferenceWcsWorkPart |
|
Motion.DeltaXc.Value |
0.0 |
|
Motion.DeltaYc.Value |
0.0 |
|
Motion.DeltaZc.Value |
0.0 |
Created in NX8.0.0.
Member Enumeration Documentation
Member Function Documentation
| void NXOpen::GeometricUtilities::PatternClockingBuilder::AddInstance | ( | int | index1, |
| int | index2 | ||
| ) |
Adds an instance that will get this clocking
Created in NX8.0.0.
License requirements : None
- Parameters
-
index1 first index into the instance array to add clocking index2 second index into the instance array to add clocking
| NXOpen::Expression* NXOpen::GeometricUtilities::PatternClockingBuilder::AngularDelta | ( | ) |
Returns the angular delta for circular clocking
Created in NX8.0.0.
License requirements : None
| NXOpen::GeometricUtilities::PatternClockingBuilder::ClockingType NXOpen::GeometricUtilities::PatternClockingBuilder::ClockType | ( | ) |
Returns the clocking enum to determine if linear or angular clocking
Created in NX8.0.0.
License requirements : None
| NXOpen::Expression* NXOpen::GeometricUtilities::PatternClockingBuilder::Direction1Delta | ( | ) |
Returns the x direction delta for linear clocking
Created in NX8.0.0.
License requirements : None
| NXOpen::Expression* NXOpen::GeometricUtilities::PatternClockingBuilder::Direction2Delta | ( | ) |
Returns the y direction delta for linear clocking
Created in NX8.0.0.
License requirements : None
| NXOpen::GeometricUtilities::ModlMotion* NXOpen::GeometricUtilities::PatternClockingBuilder::Motion | ( | ) |
Returns the user defined transform motion
Created in NX8.0.0.
License requirements : None
| NXOpen::Expression* NXOpen::GeometricUtilities::PatternClockingBuilder::RadialDelta | ( | ) |
Returns the radial delta for circular clocking
Created in NX8.0.0.
License requirements : None
| void NXOpen::GeometricUtilities::PatternClockingBuilder::RemoveInstance | ( | int | index1, |
| int | index2 | ||
| ) |
Removes an instance from this clocking
Created in NX8.0.0.
License requirements : None
- Parameters
-
index1 first index into the instance array to drop this clocking index2 second index into the instance array to drop this clocking
| void NXOpen::GeometricUtilities::PatternClockingBuilder::SetClockType | ( | NXOpen::GeometricUtilities::PatternClockingBuilder::ClockingType | clockType | ) |
Sets the clocking enum to determine if linear or angular clocking
Created in NX8.0.0.
License requirements : None
- Parameters
-
clockType clocking type
The documentation for this class was generated from the following file:
- GeometricUtilities_PatternClockingBuilder.hxx
