Represents the Geometric Properties class. More...

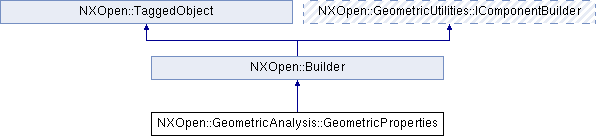

Inheritance diagram for NXOpen::GeometricAnalysis::GeometricProperties:

Classes
struct	CaeCurve
	CAE Edge/Curve Geometric Properties. More...

struct	CaeFace
	CAE Face Geometric Properties. More...

struct	Edge
	Edge/Curve Geometric Properties. More...

struct	Face
	Face Geometric Properties. More...

Public Types
enum	Entity { EntityFace, EntityEdge, EntityCaeFace, EntityCaeCurve }
	Type of input entity for geometric properties. More...

enum	OutputType { OutputTypeDynamic, OutputTypeStatic }
	Represents how to output geometric properties. More...

enum	Status { StatusSuccess, StatusInvalidInput, StatusFailed }
	Status of computing geometric properties. More...

Public Member Functions
NXOpen::GeometricAnalysis::GeometricProperties::Status	GetCaeCurveProperties (NXOpen::NXObject entityTag, const NXOpen::Point3d &absPoint, NXOpen::GeometricAnalysis::GeometricProperties::CaeCurve caeCurve)
	Returns CAE curve local properties at the given point.

NXOpen::GeometricAnalysis::GeometricProperties::Status	GetCaeFaceProperties (NXOpen::NXObject entityTag, const NXOpen::Point3d &absPoint, NXOpen::GeometricAnalysis::GeometricProperties::CaeFace caeFace)
	Returns CAE face local properties at the given point.

NXOpen::GeometricAnalysis::GeometricProperties::Status	GetEdgeProperties (NXOpen::NXObject entityTag, const NXOpen::Point3d &absPoint, NXOpen::GeometricAnalysis::GeometricProperties::Edge edge)
	Returns edge/curve local properties at the given point.

NXOpen::GeometricAnalysis::GeometricProperties::Status	GetFaceProperties (NXOpen::NXObject entityTag, const NXOpen::Point3d &absPoint, NXOpen::GeometricAnalysis::GeometricProperties::Face face)
	Returns face local properties at the given point.

NXOpen::GeometricAnalysis::GeometricProperties::Status	ListProperties (NXOpen::NXObject *entityTag, const NXOpen::Point3d &absPoint)
	Displays the local properties of the specified object at the given point in the listing window.

NXOpen::GeometricAnalysis::GeometricProperties::Status	ListProperties (const NXOpen::Point3d &absPoint)
	Displays the local properties of ObjectsForAnalysis at the given point in the listing window.

NXOpen::SelectObjectList *	ObjectsForAnalysis ()
	Returns the Objects for analysis Created in NX5.0.0.

NXOpen::GeometricAnalysis::GeometricProperties::OutputType	OutputMethod ()
	Returns the output method Created in NX5.0.0.

void	Reset ()
	Clears all markers showing the local geometric properties in the graphics window Created in NX5.0.0.

void	SetOutputMethod (NXOpen::GeometricAnalysis::GeometricProperties::OutputType outputMethod)
	Sets the output method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the Geometric Properties class.

This class can be used to find local geometric properties of faces, edges, curves, CAE faces, and CAE edges/curves at a given point.
To create a new instance of this class, use GeometricAnalysis::AnalysisManager::CreateGeometricPropertiesObject

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricAnalysis::GeometricProperties::Entity

Type of input entity for geometric properties.

Enumerator:

EntityFace	Face.
EntityEdge	Either a modeling edge or a curve.
EntityCaeFace	CAE Face.
EntityCaeCurve	CAE Curve.

enum NXOpen::GeometricAnalysis::GeometricProperties::OutputType

Represents how to output geometric properties.

GeometricAnalysis::GeometricProperties::OutputTypeDynamic displays the properties of an entity under the cursor when NX is run interactively.

Enumerator:

OutputTypeDynamic

Properties of an entity are displayed first on the dialog itself on mouse over.

These properties are listed on in the information window upon selection of a point.

OutputTypeStatic

Propeties of the selected entities are displayed in the information window.

enum NXOpen::GeometricAnalysis::GeometricProperties::Status

Status of computing geometric properties.

Enumerator:

StatusSuccess	Success.
StatusInvalidInput	Input specified is not valid.
StatusFailed	Failed to find all geometric properties.

Member Function Documentation

NXOpen::GeometricAnalysis::GeometricProperties::Status NXOpen::GeometricAnalysis::GeometricProperties::GetCaeCurveProperties	(	NXOpen::NXObject *	entityTag,
		const NXOpen::Point3d &	absPoint,
		NXOpen::GeometricAnalysis::GeometricProperties::CaeCurve *	caeCurve
	)

Returns CAE curve local properties at the given point.

Returns: Return status
Created in NX5.0.0.

License requirements : None

Parameters

entityTag	NXObject to obtain the properties for
absPoint	Absolute point co-ordinates of the reference point to compute the properties
caeCurve	CAE Edge/Curve Properties

NXOpen::GeometricAnalysis::GeometricProperties::Status NXOpen::GeometricAnalysis::GeometricProperties::GetCaeFaceProperties	(	NXOpen::NXObject *	entityTag,
		const NXOpen::Point3d &	absPoint,
		NXOpen::GeometricAnalysis::GeometricProperties::CaeFace *	caeFace
	)

Returns CAE face local properties at the given point.

Returns: Return status
Created in NX5.0.0.

License requirements : None

Parameters

entityTag	NXObject to obtain the properties for
absPoint	Absolute point co-ordinates of the reference point to compute the properties
caeFace	CAE Face Properties

NXOpen::GeometricAnalysis::GeometricProperties::Status NXOpen::GeometricAnalysis::GeometricProperties::GetEdgeProperties	(	NXOpen::NXObject *	entityTag,
		const NXOpen::Point3d &	absPoint,
		NXOpen::GeometricAnalysis::GeometricProperties::Edge *	edge
	)

Returns edge/curve local properties at the given point.

Returns: Return status
Created in NX5.0.0.

License requirements : None

Parameters

entityTag	NXObject to obtain the properties for
absPoint	Absolute point co-ordinates of the reference point to compute the properties
edge	Edge/Curve Properties

NXOpen::GeometricAnalysis::GeometricProperties::Status NXOpen::GeometricAnalysis::GeometricProperties::GetFaceProperties	(	NXOpen::NXObject *	entityTag,
		const NXOpen::Point3d &	absPoint,
		NXOpen::GeometricAnalysis::GeometricProperties::Face *	face
	)

Returns face local properties at the given point.

Returns: Return status
Created in NX5.0.0.

License requirements : None

Parameters

entityTag	NXObject to obtain the properties for
absPoint	Absolute point co-ordinates of the reference point to compute the properties
face	Face Properties

NXOpen::GeometricAnalysis::GeometricProperties::Status NXOpen::GeometricAnalysis::GeometricProperties::ListProperties	(	NXOpen::NXObject *	entityTag,
		const NXOpen::Point3d &	absPoint
	)

Displays the local properties of the specified object at the given point in the listing window.

Returns: Return status
Created in NX5.0.0.

License requirements : None

Parameters

entityTag	NXObject to obtain the properties for
absPoint	Absolute point co-ordinates of the reference point to compute the properties

NXOpen::GeometricAnalysis::GeometricProperties::Status NXOpen::GeometricAnalysis::GeometricProperties::ListProperties ( const NXOpen::Point3d & absPoint )

Displays the local properties of ObjectsForAnalysis at the given point in the listing window.

Returns: Return status
Created in NX5.0.0.

License requirements : None

Parameters

absPoint Absolute point co-ordinates of the reference point to compute the properties

NXOpen::SelectObjectList* NXOpen::GeometricAnalysis::GeometricProperties::ObjectsForAnalysis ( )

Returns the Objects for analysis
Created in NX5.0.0.

License requirements : None

NXOpen::GeometricAnalysis::GeometricProperties::OutputType NXOpen::GeometricAnalysis::GeometricProperties::OutputMethod ( )

Returns the output method
Created in NX5.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::GeometricProperties::Reset ( )

Clears all markers showing the local geometric properties in the graphics window
Created in NX5.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::GeometricProperties::SetOutputMethod ( NXOpen::GeometricAnalysis::GeometricProperties::OutputType outputMethod )

Sets the output method
Created in NX5.0.0.

License requirements : None

Parameters

outputMethod output method

The documentation for this class was generated from the following file:

GeometricAnalysis_GeometricProperties.hxx
