Represents a Curve Continuity Analysis builder
To create or edit an instance of this class, use GeometricAnalysis::CurveContinuityBuilder
Created in NX7.0.0.
More...

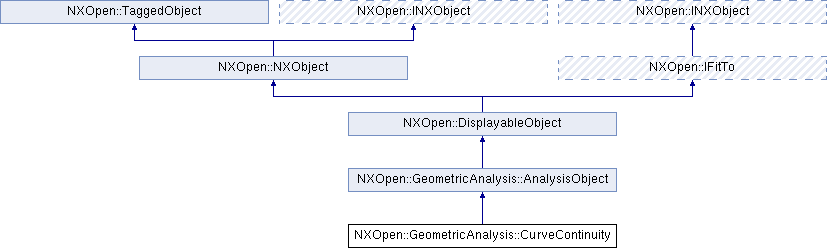

Inheritance diagram for NXOpen::GeometricAnalysis::CurveContinuity:
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
| Public Member Functions inherited from NXOpen::DisplayableObject | |
| void | Blank () |
| Blanks the object. | |
| int | Color () |
| Returns the color of the object. | |
| void | Highlight () |
| Highlights the object. | |
| bool | IsBlanked () |
| Returns the blank status of this object. | |
| int | Layer () |
| Returns the layer that the object is in. | |
| NXOpen::DisplayableObject::ObjectFont | LineFont () |
| Returns the line font of the object. | |
| NXOpen::DisplayableObject::ObjectWidth | LineWidth () |
| Returns the line width of the object. | |
| NXOpen::Point3d | NameLocation () |
| Returns the location of the object's name. | |
| void | RedisplayObject () |
| Redisplays the object in all views. | |
| void | SetColor (int color) |
| Sets the color of the object. | |
| void | SetLayer (int layer) |
| Sets the layer that the object is in. | |
| void | SetLineFont (NXOpen::DisplayableObject::ObjectFont font) |
| Sets the line font of the object. | |
| void | SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width) |
| Sets the line width of the object. | |
| void | SetNameLocation (const NXOpen::Point3d &location) |
| Sets the location of the object's name. | |
| void | Unblank () |
| Unblanks the object. | |
| void | Unhighlight () |
| Unhighlights the object. | |
Detailed Description
Represents a Curve Continuity Analysis builder
To create or edit an instance of this class, use GeometricAnalysis::CurveContinuityBuilder
Created in NX7.0.0.
The documentation for this class was generated from the following file:
- GeometricAnalysis_CurveContinuity.hxx
