Represents a curve continuity builder  <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateCurveContinuityBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateCurveContinuityBuilder @endlink  <br>

Default values. More...

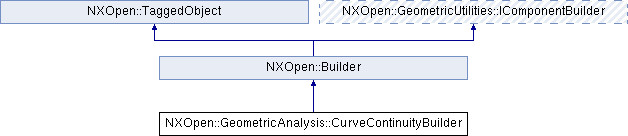

Inheritance diagram for NXOpen::GeometricAnalysis::CurveContinuityBuilder:

Public Member Functions
double	EndPointX ()
	Returns the end point x value Created in NX7.0.0.

double	EndPointY ()
	Returns the end point y value Created in NX7.0.0.

double	EndPointZ ()
	Returns the end point z value Created in NX7.0.0.

bool	G0Check ()
	Returns the G0 check Created in NX7.0.0.

bool	G1Check ()
	Returns the G1 check Created in NX7.0.0.

bool	G2Check ()
	Returns the G2 check Created in NX7.0.0.

bool	G3Check ()
	Returns the G3 check Created in NX7.0.0.

NXOpen::SelectNXObject *	SelectCurve ()
	Returns the select curve Created in NX7.0.0.

NXOpen::SelectNXObject *	SelectObject ()
	Returns the select object Created in NX7.0.0.

void	SetEndPointX (double endPointX)
	Sets the end point x value Created in NX7.0.0.

void	SetEndPointY (double endPointY)
	Sets the end point y value Created in NX7.0.0.

void	SetEndPointZ (double endPointZ)
	Sets the end point z value Created in NX7.0.0.

void	SetG0Check (bool g0Check)
	Sets the G0 check Created in NX7.0.0.

void	SetG1Check (bool g1Check)
	Sets the G1 check Created in NX7.0.0.

void	SetG2Check (bool g2Check)
	Sets the G2 check Created in NX7.0.0.

void	SetG3Check (bool g3Check)
	Sets the G3 check Created in NX7.0.0.

void	SetShowNeedle (bool showNeedle)
	Sets the show needle Created in NX7.0.0.

bool	ShowNeedle ()
	Returns the show needle Created in NX7.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a curve continuity builder  <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateCurveContinuityBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateCurveContinuityBuilder @endlink  <br>

Default values.

Property

Value

EndPointX

0

EndPointY

0

EndPointZ

0

G0Check

1

G1Check

0

G2Check

0

G3Check

0

ShowNeedle

1

Created in NX7.0.0.

Member Function Documentation

double NXOpen::GeometricAnalysis::CurveContinuityBuilder::EndPointX ( )

Returns the end point x value
Created in NX7.0.0.

License requirements : None

double NXOpen::GeometricAnalysis::CurveContinuityBuilder::EndPointY ( )

Returns the end point y value
Created in NX7.0.0.

License requirements : None

double NXOpen::GeometricAnalysis::CurveContinuityBuilder::EndPointZ ( )

Returns the end point z value
Created in NX7.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::CurveContinuityBuilder::G0Check ( )

Returns the G0 check
Created in NX7.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::CurveContinuityBuilder::G1Check ( )

Returns the G1 check
Created in NX7.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::CurveContinuityBuilder::G2Check ( )

Returns the G2 check
Created in NX7.0.0.

License requirements : None

bool NXOpen::GeometricAnalysis::CurveContinuityBuilder::G3Check ( )

Returns the G3 check
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::GeometricAnalysis::CurveContinuityBuilder::SelectCurve ( )

Returns the select curve
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::GeometricAnalysis::CurveContinuityBuilder::SelectObject ( )

Returns the select object
Created in NX7.0.0.

License requirements : None

void NXOpen::GeometricAnalysis::CurveContinuityBuilder::SetEndPointX ( double endPointX )

Sets the end point x value
Created in NX7.0.0.
