TODO Class documentation  <br> To create a new instance of this class, use @link Formboard::FormboardManager::CreatePathLengthAnnotationBuilder  Formboard::FormboardManager::CreatePathLengthAnnotationBuilder @endlink  <br>

Default values. More...

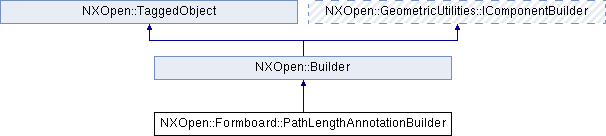

Inheritance diagram for NXOpen::Formboard::PathLengthAnnotationBuilder:

Public Types
enum	Types { TypesPointsOnCurves, TypesRoutingPathLength }
	TODO: Document the whole type. More...

Public Member Functions
void	CreatePointsAtRcps (NXOpen::Routing::ControlPoint firstEndRcp, NXOpen::Routing::ControlPoint secondEndRcp)
	Create builder end points at the RCP locations Created in NX7.5.0.

NXString	ExpressionName ()
	Returns the expression name Created in NX7.5.0.

NXOpen::Point *	FirstEndPoint ()
	Returns the first end point Created in NX7.5.0.

NXOpen::Annotations::LeaderBuilder *	Leader ()
	Returns the leader Created in NX7.5.0.

NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the origin Created in NX7.5.0.

NXOpen::Routing::RouteObjectCollector *	RouteObjectCollector ()
	Returns the route object collector Created in NX7.5.0.

NXOpen::Point *	SecondEndPoint ()
	Returns the second end point Created in NX7.5.0.

void	SetFirstEndPoint (NXOpen::Point *firstEndPoint)
	Sets the first end point Created in NX7.5.0.

void	SetPathLengthAnnotationEndPoints (NXOpen::Point firstEndPoint, NXOpen::Point secondEndPoint)
	Create and initialize the Path Length Annotation Created in NX7.5.0.

void	SetSecondEndPoint (NXOpen::Point *secondEndPoint)
	Sets the second end point Created in NX7.5.0.

void	SetShowLeadersToggle (bool showLeadersToggle)
	Sets the show leaders toggle Created in NX7.5.0.

void	SetType (NXOpen::Formboard::PathLengthAnnotationBuilder::Types type)
	Sets the type Created in NX7.5.0.

bool	ShowLeadersToggle ()
	Returns the show leaders toggle Created in NX7.5.0.

NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the style Created in NX7.5.0.

NXOpen::Annotations::TextWithEditControlsBuilder *	Text ()
	Returns the u icomp text with symbols0 Created in NX7.5.0.

NXOpen::Formboard::PathLengthAnnotationBuilder::Types	Type ()
	Returns the type Created in NX7.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

TODO Class documentation  <br> To create a new instance of this class, use @link Formboard::FormboardManager::CreatePathLengthAnnotationBuilder  Formboard::FormboardManager::CreatePathLengthAnnotationBuilder @endlink  <br>

Default values.

Property

Value

ShowLeadersToggle

0

Text.TextBlock.CustomSymbolScale

1.0

Text.TextBlock.SymbolAspectRatio

1.0

Text.TextBlock.SymbolHeight

25.4 (millimeters part), 1.0 (inches part)

Text.TextBlock.SymbolLength

25.4 (millimeters part), 1.0 (inches part)

Text.TextBlock.SymbolPreferences

UseCurrent

Text.TextBlock.SymbolScale

1.0

Text.TextBlock.SymbolSizeMethod

ScaleAndAspectRatio

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::Formboard::PathLengthAnnotationBuilder::Types

TODO: Document the whole type.

Enumerator:

TypesPointsOnCurves	TODO.
TypesRoutingPathLength	TODO.
