Defines the various options for determining the rounded lengths of formboard geometry during the layout or update process. More...

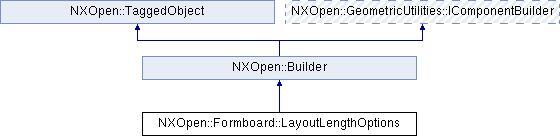

Inheritance diagram for NXOpen::Formboard::LayoutLengthOptions:

Public Types
enum	RoundingMethod { RoundingMethodExact, RoundingMethodNearest, RoundingMethodUpToNearest, RoundingMethodDownToNearest }
	Methods of rounding lengths for Formboard geometry. More...

Public Member Functions
NXOpen::Expression *	NetlistLengthIncrement ()
	Returns the connection list length increment.

NXOpen::Formboard::LayoutLengthOptions::RoundingMethod	NetlistRoundingMethod ()
	Returns the rounding method to apply to Connection List lengths.

NXOpen::Expression *	OverstockLengthIncrement ()
	Returns the overstock length increment.

NXOpen::Formboard::LayoutLengthOptions::RoundingMethod	OverstockRoundingMethod ()
	Returns the rounding method to apply to overstock wrapped lengths.

NXOpen::Expression *	SegmentLengthIncrement ()
	Returns the segment length increment.

NXOpen::Formboard::LayoutLengthOptions::RoundingMethod	SegmentRoundingMethod ()
	Returns the rounding method to apply to segment lengths.

void	SetNetlistRoundingMethod (NXOpen::Formboard::LayoutLengthOptions::RoundingMethod netlistRoundingMethod)
	Sets the rounding method to apply to Connection List lengths.

void	SetOverstockRoundingMethod (NXOpen::Formboard::LayoutLengthOptions::RoundingMethod overstockRoundingMethod)
	Sets the rounding method to apply to overstock wrapped lengths.

void	SetSegmentRoundingMethod (NXOpen::Formboard::LayoutLengthOptions::RoundingMethod segmentRoundingMethod)
	Sets the rounding method to apply to segment lengths.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Defines the various options for determining the rounded lengths of formboard geometry during the layout or update process.

Created automatically by containing classes.

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::Formboard::LayoutLengthOptions::RoundingMethod

Methods of rounding lengths for Formboard geometry.

The rounding method determines the value of the length in the Formboard by modifying the original length values from the 3D harness part file.

Enumerator:

RoundingMethodExact	Lengths are unmodified.
RoundingMethodNearest	Lengths are rounded up or down to the nearest increment value.
RoundingMethodUpToNearest	Lengths are rounded up to the nearest increment value.
RoundingMethodDownToNearest	Lengths are rounded down to the nearest increment value.
