NXOpen::Fields::FieldReference Class Reference

Represents an reference field. More...

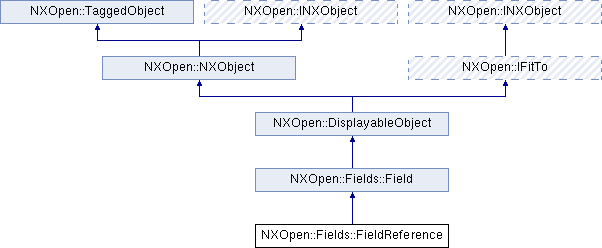

Inheritance diagram for NXOpen::Fields::FieldReference:

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...
Public Member Functions inherited from NXOpen::Fields::Field
void	CopyAsTableToPart (NXOpen::BasePart *targetPart)
	Create a new table field from this field (regardless of type).
void	CopyToPart (NXOpen::BasePart *targetPart)
	Copy the field to the target part.
NXOpen::Fields::Field *	CreateCopyInPart (NXOpen::BasePart *targetPart)
	Copy the field to the target part.
NXOpen::Fields::FieldTable *	CreateTableInPart (NXOpen::BasePart *targetPart)
	Create a new table field from this field (regardless of type).
void	Delete ()
	Delete this field; destroys the field and removes all references to it.
std::vector < NXOpen::Fields::FieldVariable * >	GetDependentVariables ()
	Returns the dependent variables for this Fields::Field.
std::vector< NXString >	GetDescription ()
	Returns the description of the field.
NXOpen::Fields::FieldEvaluator *	GetFieldEvaluator ()
	Returns a field evaluator which can be used to evaluate this field.
int	GetIdLabel ()
	Returns the ID/Label of the field.
std::vector < NXOpen::Fields::FieldVariable * >	GetIndependentVariables ()
	Returns the independent variables for this Fields::Field.
NXOpen::Fields::SpatialMap *	GetSpatialMap ()
	Returns the spatial map for the formula field if one exists.
bool	IsLocked ()
	Returns a value that indicates whether this field is locked against edits.
bool	IsUserField ()
	Returns a value that indicates whether this field is a user created/managed field.
void	Rename (const NXString &newName)
	Update the name of the field.
void	Rename (const char *newName)
	Update the name of the field.
void	SetDescription (std::vector< NXString > &lines)
	Update the description of the field.
void	SetIdLabel (int idLabel)
	Update the ID/Label of the field.
void	SetSpatialMap (NXOpen::Fields::SpatialMap *overrideMap)
	Set the spatial map for the formula field.
void	XYGraph (NXOpen::Fields::FieldVariable *indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray)
	Creates displayed graphs of the Field's specified independent variable versus all the Field's dependent variables.
void	XYGraph (NXOpen::Fields::FieldVariable *indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, int viewIndex, bool overlay)
	Plots or overlays graphs of the Field's specified independent variable versus all the Field's dependent variables.
void	XYGraph (NXOpen::Fields::FieldVariable *indepVar, double abscissaMinimum, double abscissaMaximum, int abscissaPointCount, const std::vector< NXOpen::Fields::FieldVariable * > &constantIndepVarArray, const std::vector< double > &constantIndepVarValueArray, int windowDevice, int viewIndex, bool overlay)
	Plots or overlays graphs of the Field's specified independent variable versus all the Field's dependent variables.

Detailed Description

Represents an reference field.

<br> A Reference Field exposes data inside of an abstract data store.  An abstract data store
     is provided by an appropriate application data provider, and allows access to the provider
     data as a @link Fields::Field Fields::Field@endlink  <br>
<br> To obtain a instance of this class use an appropriate application data provider.  <br>

Created in NX9.0.0.

---

The documentation for this class was generated from the following file:

• Fields_FieldReference.hxx
