This builder allows you to define the pendulum placement information for bumper pendulum features in vehicle design. More...

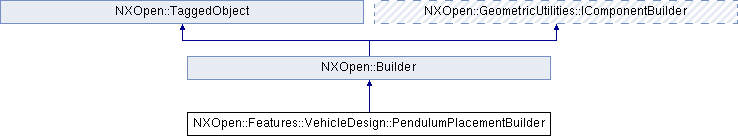

Inheritance diagram for NXOpen::Features::VehicleDesign::PendulumPlacementBuilder:

Public Types
enum	LocationType { LocationTypeFront, LocationTypeRear }
	This enum represents the pendulum placement location options. More...

enum	PendulumProfileType { PendulumProfileTypeEu, PendulumProfileTypeUs }
	This enum represents the pendulum placement profile options. More...

enum	PositionMethodType { PositionMethodTypeMiddleBaseData, PositionMethodTypeMiddleVehicle, PositionMethodTypeRotatedBaseData, PositionMethodTypeRotatedPlane, PositionMethodTypeRotatedPlaneX, PositionMethodTypeRotatedPlaneNormal, PositionMethodTypeRotatedContact, PositionMethodTypeShiftedBaseData, PositionMethodTypeShiftedVehicle, PositionMethodTypeShiftedFromRotated }
	This enum represents the pendulum placement method options. More...

enum	SideType { SideTypeLeft, SideTypeRight }
	This enum represents the pendulum placement side options. More...

Public Member Functions
NXOpen::Expression *	Angle ()
	Returns the rotation angle of this pendulum.

NXOpen::NXColor *	Color ()
	Returns the display color of this pendulum.

NXOpen::Expression *	Level ()
	Returns the reference level of this pendulum.

NXString	Loading ()
	Returns the loading used with this pendulum.

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::LocationType	Location ()
	Returns the location to use for positioning this pendulum.

NXString	Name ()
	Returns the name of this pendulum.

NXOpen::Expression *	Offset ()
	Returns the side offset of this pendulum.

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PendulumProfileType	PendulumProfile ()
	Returns the pendulum profile of this pendulum.

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PositionMethodType	PositionMethod ()
	Returns the method to use for positioning this pendulum.

void	SetColor (NXOpen::NXColor *color)
	Sets the display color of this pendulum.

void	SetLoading (const NXString &loading)
	Sets the loading used with this pendulum.

void	SetLoading (const char *loading)
	Sets the loading used with this pendulum.

void	SetLocation (NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::LocationType location)
	Sets the location to use for positioning this pendulum.

void	SetName (const NXString &name)
	Sets the name of this pendulum.

void	SetName (const char *name)
	Sets the name of this pendulum.

void	SetPendulumProfile (NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PendulumProfileType pendulumProfile)
	Sets the pendulum profile of this pendulum.

void	SetPositionMethod (NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PositionMethodType positionMethod)
	Sets the method to use for positioning this pendulum.

void	SetShowPendulum (bool showPendulum)
	Sets the value indicating if this pendulum is displayed.

void	SetShowPoint (bool showPoint)
	Sets the value indicating if the contact point (if any) between this pendulum and the bumper is displayed.

void	SetSide (NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SideType side)
	Sets the side to use for positioning this pendulum.

NXOpen::Expression *	Shift ()
	Returns the expression containing the amount to shift the pendulum from the contact point on the car.

bool	ShowPendulum ()
	Returns the value indicating if this pendulum is displayed.

bool	ShowPoint ()
	Returns the value indicating if the contact point (if any) between this pendulum and the bumper is displayed.

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SideType	Side ()
	Returns the side to use for positioning this pendulum.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This builder allows you to define the pendulum placement information for bumper pendulum features in vehicle design.

   It represents @link Features::VehicleDesign::PendulumPlacementBuilder Features::VehicleDesign::PendulumPlacementBuilder@endlink   <br> This class is sub-object of another builder, and cannot be directly instantiated.  <br>

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::LocationType

This enum represents the pendulum placement location options.

Enumerator:

LocationTypeFront	front
LocationTypeRear	rear

enum NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PendulumProfileType

This enum represents the pendulum placement profile options.

Enumerator:

PendulumProfileTypeEu	eu
PendulumProfileTypeUs	us

enum NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PositionMethodType

This enum represents the pendulum placement method options.

Enumerator:

PositionMethodTypeMiddleBaseData	middle base data
PositionMethodTypeMiddleVehicle	middle vehicle
PositionMethodTypeRotatedBaseData	rotated base data
PositionMethodTypeRotatedPlane	rotated plane
PositionMethodTypeRotatedPlaneX	rotated plane x
PositionMethodTypeRotatedPlaneNormal	rotated plane normal
PositionMethodTypeRotatedContact	rotated contact
PositionMethodTypeShiftedBaseData	shifted base data
PositionMethodTypeShiftedVehicle	shifted vehicle
PositionMethodTypeShiftedFromRotated	shifted from rotated

enum NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SideType

This enum represents the pendulum placement side options.

Enumerator:

SideTypeLeft	left
SideTypeRight	right

Member Function Documentation

NXOpen::Expression* NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::Angle ( )

Returns the rotation angle of this pendulum.

Created in NX8.5.0.

License requirements : None

NXOpen::NXColor* NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::Color ( )

Returns the display color of this pendulum.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::Level ( )

Returns the reference level of this pendulum.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::Loading ( )

Returns the loading used with this pendulum.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::LocationType NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::Location ( )

Returns the location to use for positioning this pendulum.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::Name ( )

Returns the name of this pendulum.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::Offset ( )

Returns the side offset of this pendulum.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PendulumProfileType NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PendulumProfile ( )

Returns the pendulum profile of this pendulum.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PositionMethodType NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PositionMethod ( )

Returns the method to use for positioning this pendulum.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetColor ( NXOpen::NXColor * color )

Sets the display color of this pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

color color

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetLoading ( const NXString & loading )

Sets the loading used with this pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loading loading

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetLoading ( const char * loading )

Sets the loading used with this pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loading loading

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetLocation ( NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::LocationType location )

Sets the location to use for positioning this pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

location location

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetName ( const NXString & name )

Sets the name of this pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

name name

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetName ( const char * name )

Sets the name of this pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

name name

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetPendulumProfile ( NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PendulumProfileType pendulumProfile )

Sets the pendulum profile of this pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

pendulumProfile pendulumprofile

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetPositionMethod ( NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::PositionMethodType positionMethod )

Sets the method to use for positioning this pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

positionMethod positionmethod

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetShowPendulum ( bool showPendulum )

Sets the value indicating if this pendulum is displayed.

A value of false will hide this pendulum.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showPendulum showpendulum

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetShowPoint ( bool showPoint )

Sets the value indicating if the contact point (if any) between this pendulum and the bumper is displayed.

A value of false will hide the contact point.
Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showPoint showpoint

void NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SetSide ( NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SideType side )

Sets the side to use for positioning this pendulum.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

side side

NXOpen::Expression* NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::Shift ( )

Returns the expression containing the amount to shift the pendulum from the contact point on the car.

Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::ShowPendulum ( )

Returns the value indicating if this pendulum is displayed.

A value of false will hide this pendulum.
Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::ShowPoint ( )

Returns the value indicating if the contact point (if any) between this pendulum and the bumper is displayed.

A value of false will hide the contact point.
Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::SideType NXOpen::Features::VehicleDesign::PendulumPlacementBuilder::Side ( )

Returns the side to use for positioning this pendulum.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_PendulumPlacementBuilder.hxx
