    Represents a @link Features::VehicleDesign::HoodVisibility Features::VehicleDesign::HoodVisibility@endlink  builder
     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateHoodVisibilityBuilder  Features::VehicleDesignCollection::CreateHoodVisibilityBuilder @endlink  <br>

Default values. More...

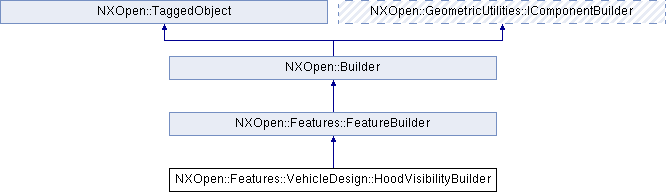

Inheritance diagram for NXOpen::Features::VehicleDesign::HoodVisibilityBuilder:

Public Member Functions
bool	AssoToggle ()
	Returns the associative toggle; toggle on to create feature Created in NX6.0.0.

NXOpen::Point *	EyePoint ()
	Returns the eye point Created in NX6.0.0.

double	PitchAngle ()
	Returns the pitch angle which determines the quantity of section planes Created in NX6.0.0.

NXOpen::ScCollector *	SelectFace ()
	Returns the hood face Created in NX6.0.0.

void	SetAssoToggle (bool assoToggle)
	Sets the associative toggle; toggle on to create feature Created in NX6.0.0.

void	SetEyePoint (NXOpen::Point *eyePoint)
	Sets the eye point Created in NX6.0.0.

void	SetPitchAngle (double pitchAngle)
	Sets the pitch angle which determines the quantity of section planes Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

    Represents a @link Features::VehicleDesign::HoodVisibility Features::VehicleDesign::HoodVisibility@endlink  builder
     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateHoodVisibilityBuilder  Features::VehicleDesignCollection::CreateHoodVisibilityBuilder @endlink  <br>

Default values.

Property

Value

AssoToggle

0

PitchAngle

0

Created in NX6.0.0.

Member Function Documentation

bool NXOpen::Features::VehicleDesign::HoodVisibilityBuilder::AssoToggle ( )

Returns the associative toggle; toggle on to create feature
Created in NX6.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::VehicleDesign::HoodVisibilityBuilder::EyePoint ( )

Returns the eye point
Created in NX6.0.0.

License requirements : None

double NXOpen::Features::VehicleDesign::HoodVisibilityBuilder::PitchAngle ( )

Returns the pitch angle which determines the quantity of section planes
Created in NX6.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::HoodVisibilityBuilder::SelectFace ( )

Returns the hood face
Created in NX6.0.0.

License requirements : None

void NXOpen::Features::VehicleDesign::HoodVisibilityBuilder::SetAssoToggle ( bool assoToggle )

Sets the associative toggle; toggle on to create feature
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

assoToggle assotoggle

void NXOpen::Features::VehicleDesign::HoodVisibilityBuilder::SetEyePoint ( NXOpen::Point * eyePoint )

Sets the eye point
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

eyePoint eyepoint

void NXOpen::Features::VehicleDesign::HoodVisibilityBuilder::SetPitchAngle ( double pitchAngle )

Sets the pitch angle which determines the quantity of section planes
Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

pitchAngle pitchangle

The documentation for this class was generated from the following file:

Features_VehicleDesign_HoodVisibilityBuilder.hxx
