Represents a Features::Subdivision::TransformCageData builder. More...

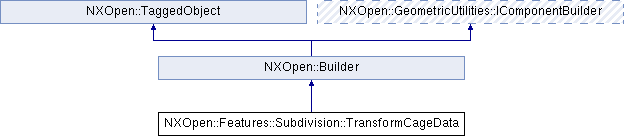

Inheritance diagram for NXOpen::Features::Subdivision::TransformCageData:

Public Types
enum	MovementMethodType { MovementMethodTypeWCS, MovementMethodTypeView, MovementMethodTypeVector, MovementMethodTypePlane, MovementMethodTypeNormal, MovementMethodTypeEdge }
	Movement types. More...

enum	ScalingMethodType { ScalingMethodTypeLinear, ScalingMethodTypePlanar, ScalingMethodTypeUniform }
	Scaling method. More...

enum	TransformationMethodType { TransformationMethodTypeDrag, TransformationMethodTypeTransform }
	Transformation method types. More...

enum	WCSOptionType { WCSOptionTypeInferredAxis, WCSOptionTypeX, WCSOptionTypeY, WCSOptionTypeZ, WCSOptionTypeYZ, WCSOptionTypeXZ, WCSOptionTypeXY }
	WCS principal axis or plane types. More...

Public Member Functions
NXOpen::Features::Subdivision::CageManipulatorData *	CageManipulator ()
	Returns the cage manipulation data.

bool	CanMoveToolOnly ()
	Returns the flag indicating if transformer tool can be moved without transforming the selected cage topology.

bool	CanRelocateToolToSelection ()
	Returns the flag indicating if transformer tool can be relocated based on cage topology selection.

bool	CanReorientToolToSelection ()
	Returns the flag indicating if transformer tool can be reoriented based on cage topology selection.

NXOpen::Features::Subdivision::TransformCageData::MovementMethodType	MovementMethod ()
	Returns the movement method.

NXOpen::Plane *	MovementPlane ()
	Returns the movement plane.

NXOpen::Direction *	MovementVector ()
	Returns the movement vector.

NXOpen::Features::Subdivision::TransformCageData::ScalingMethodType	ScalingMethod ()
	Returns the scaling method.

void	SetCanMoveToolOnly (bool canMove)
	Sets the flag indicating if transformer tool can be moved without transforming the selected cage topology.

void	SetCanRelocateToolToSelection (bool canRelocate)
	Sets the flag indicating if transformer tool can be relocated based on cage topology selection.

void	SetCanReorientToolToSelection (bool canReorient)
	Sets the flag indicating if transformer tool can be reoriented based on cage topology selection.

void	SetMovementMethod (NXOpen::Features::Subdivision::TransformCageData::MovementMethodType movementMethod)
	Sets the movement method.

void	SetMovementPlane (NXOpen::Plane *movementPlane)
	Sets the movement plane.

void	SetMovementVector (NXOpen::Direction *movementVector)
	Sets the movement vector.

void	SetScalingMethod (NXOpen::Features::Subdivision::TransformCageData::ScalingMethodType scalingMethod)
	Sets the scaling method.

void	SetTransformationMethod (NXOpen::Features::Subdivision::TransformCageData::TransformationMethodType method)
	Sets the transformation method.

void	SetWCSOption (NXOpen::Features::Subdivision::TransformCageData::WCSOptionType wcsOption)
	Sets the WCS option.

NXOpen::Features::Subdivision::TransformCageData::TransformationMethodType	TransformationMethod ()
	Returns the transformation method.

NXOpen::Features::Subdivision::TransformCageData::WCSOptionType	WCSOption ()
	Returns the WCS option.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::Subdivision::TransformCageData builder.

To create a new instance of this class, use Features::Subdivision::SubdivisionBodyCollection::CreateTransformCageData
Default values.

Property

Value

CanRelocateToolToSelection

true

CanReorientToolToSelection

true

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Features::Subdivision::TransformCageData::MovementMethodType

Movement types.

Enumerator:

MovementMethodTypeWCS	Movement along WCS principal axis or plane.
MovementMethodTypeView	Movement in view plane.
MovementMethodTypeVector	Movement along arbitrary direction.
MovementMethodTypePlane	Movement in arbitrary plane.
MovementMethodTypeNormal	Movement along a face normal.
MovementMethodTypeEdge	Movement along an edge.

enum NXOpen::Features::Subdivision::TransformCageData::ScalingMethodType

Scaling method.

Enumerator:

ScalingMethodTypeLinear	Scale in the specified direction.
ScalingMethodTypePlanar	Scale in the plane normal to specified direction.
ScalingMethodTypeUniform	Scale uniformly all the directions.

enum NXOpen::Features::Subdivision::TransformCageData::TransformationMethodType

Transformation method types.

Enumerator:

TransformationMethodTypeDrag	Edit cage topology by direct dragging.
TransformationMethodTypeTransform	Edit cage topology by transformations.

enum NXOpen::Features::Subdivision::TransformCageData::WCSOptionType

WCS principal axis or plane types.

Enumerator:

WCSOptionTypeInferredAxis	Along axis inferred during movement.
WCSOptionTypeX	Along X axis.
WCSOptionTypeY	Along Y axis.
WCSOptionTypeZ	Along Z axis.
WCSOptionTypeYZ	In YZ plane.
WCSOptionTypeXZ	In XZ plane.
WCSOptionTypeXY	In XY plane.

Member Function Documentation

NXOpen::Features::Subdivision::CageManipulatorData* NXOpen::Features::Subdivision::TransformCageData::CageManipulator ( )

Returns the cage manipulation data.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Features::Subdivision::TransformCageData::CanMoveToolOnly ( )

Returns the flag indicating if transformer tool can be moved without transforming the selected cage topology.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Features::Subdivision::TransformCageData::CanRelocateToolToSelection ( )

Returns the flag indicating if transformer tool can be relocated based on cage topology selection.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Features::Subdivision::TransformCageData::CanReorientToolToSelection ( )

Returns the flag indicating if transformer tool can be reoriented based on cage topology selection.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::Subdivision::TransformCageData::MovementMethodType NXOpen::Features::Subdivision::TransformCageData::MovementMethod ( )

Returns the movement method.

Created in NX9.0.0.

License requirements : None

NXOpen::Plane* NXOpen::Features::Subdivision::TransformCageData::MovementPlane ( )

Returns the movement plane.

Created in NX9.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::Subdivision::TransformCageData::MovementVector ( )

Returns the movement vector.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::Subdivision::TransformCageData::ScalingMethodType NXOpen::Features::Subdivision::TransformCageData::ScalingMethod ( )

Returns the scaling method.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::Subdivision::TransformCageData::SetCanMoveToolOnly ( bool canMove )

Sets the flag indicating if transformer tool can be moved without transforming the selected cage topology.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

canMove canmove

void NXOpen::Features::Subdivision::TransformCageData::SetCanRelocateToolToSelection ( bool canRelocate )

Sets the flag indicating if transformer tool can be relocated based on cage topology selection.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

canRelocate canrelocate

void NXOpen::Features::Subdivision::TransformCageData::SetCanReorientToolToSelection ( bool canReorient )

Sets the flag indicating if transformer tool can be reoriented based on cage topology selection.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

canReorient canreorient

void NXOpen::Features::Subdivision::TransformCageData::SetMovementMethod ( NXOpen::Features::Subdivision::TransformCageData::MovementMethodType movementMethod )

Sets the movement method.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

movementMethod movementmethod

void NXOpen::Features::Subdivision::TransformCageData::SetMovementPlane ( NXOpen::Plane * movementPlane )

Sets the movement plane.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

movementPlane movementplane

void NXOpen::Features::Subdivision::TransformCageData::SetMovementVector ( NXOpen::Direction * movementVector )

Sets the movement vector.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

movementVector movementvector

void NXOpen::Features::Subdivision::TransformCageData::SetScalingMethod ( NXOpen::Features::Subdivision::TransformCageData::ScalingMethodType scalingMethod )

Sets the scaling method.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

scalingMethod scalingmethod

void NXOpen::Features::Subdivision::TransformCageData::SetTransformationMethod ( NXOpen::Features::Subdivision::TransformCageData::TransformationMethodType method )

Sets the transformation method.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

method method

void NXOpen::Features::Subdivision::TransformCageData::SetWCSOption ( NXOpen::Features::Subdivision::TransformCageData::WCSOptionType wcsOption )

Sets the WCS option.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

wcsOption wcsoption

NXOpen::Features::Subdivision::TransformCageData::TransformationMethodType NXOpen::Features::Subdivision::TransformCageData::TransformationMethod ( )

Returns the transformation method.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::Subdivision::TransformCageData::WCSOptionType NXOpen::Features::Subdivision::TransformCageData::WCSOption ( )

Returns the WCS option.

Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_Subdivision_TransformCageData.hxx
