Subdivision cage manipulation tool. More...

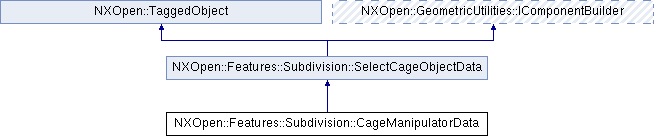

Inheritance diagram for NXOpen::Features::Subdivision::CageManipulatorData:

Classes
struct	ObjectMoveData
	Contains object movement information. More...

struct	ObjectSelectionData
	Contains object selection information. More...

Public Member Functions
void	EndMove ()
	Releases the data prepared at the beginning of the move.

void	Move (const NXOpen::Point3d &moveToPoint, bool isSnapGesture)
	Moves the objects by dragging.

void	PrepareToMove (const NXOpen::Features::Subdivision::CageManipulatorData::ObjectMoveData &moveData)
	Prepares data to move the objects.

void	ResetTransformerToCentroidOfSelection ()
	Repositions the GeometricUtilities::TransformerData to the centroid of the selected entities.

void	SetTransformerToObject (const NXOpen::Features::Subdivision::CageManipulatorData::ObjectSelectionData &selectionData)
	Repositions the GeometricUtilities::TransformerData to the specified entity.

void	StepMove (double step)
	Moves the objects by step value.

NXOpen::GeometricUtilities::TransformerData *	Transformer ()
	Returns the transformation tool.

Public Member Functions inherited from NXOpen::Features::Subdivision::SelectCageObjectData
bool	CanDeselectObjectsAutomatically ()
	Returns the flag indicating if previously selected objects can be de-selected during selection of new objects.

void	ClearAndAdd (const std::vector< NXOpen::NXObject * > &objects, NXOpen::View *view, const NXOpen::Point3d &point)
	Clears the currently present objects and adds new objects.

NXOpen::SelectDisplayableObjectList *	SelectionList ()
	Returns the object list.

void	SetCanDeselectObjectsAutomatically (bool canDeselect)
	Sets the flag indicating if previously selected objects can be de-selected during selection of new objects.

void	SetCursorLocation (const NXOpen::Point3d &point)
	Sets the cursor location in absolute coordinates.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Subdivision cage manipulation tool.

Created in NX9.0.0.
