NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder Class Reference

Represents a Features::Subdivision::SubdivisionPrimitiveShapeBuilder builder. More...

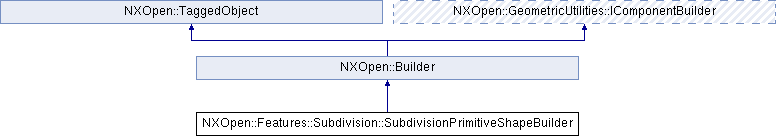

Inheritance diagram for NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder:

Public Types
enum	Types {   TypesSphere, TypesCylinder, TypesBlock, TypesCircle,   TypesRectangle }
	Type of primitive. More...

Public Member Functions
NXOpen::Expression *	Height ()
	Returns the height.
NXOpen::Expression *	HeightZ ()
	Returns the height in z direction.
NXOpen::Expression *	LengthX ()
	Returns the length in x direction.
NXOpen::Point *	Origin ()
	Returns the origin.
void	SetOrigin (NXOpen::Point *origin)
	Sets the origin.
void	SetType (NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::Types type)
	Sets the type.
NXOpen::Expression *	Size ()
	Returns the size.
NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::Types	Type ()
	Returns the type.
void	UpdateMesh ()
	Updates the mesh data after changes in the origin.
NXOpen::Expression *	WidthY ()
	Returns the width in y direction.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::Subdivision::SubdivisionPrimitiveShapeBuilder builder.

To create a new instance of this class, use Features::Subdivision::SubdivisionBodyCollection::CreateSubdivisionPrimitiveShapeBuilder
Default values.

Property	Value
Height.Value	100 (millimeters part), 4 (inches part)
HeightZ.Value	100 (millimeters part), 4 (inches part)
LengthX.Value	100 (millimeters part), 4 (inches part)
Size.Value	100 (millimeters part), 4 (inches part)
WidthY.Value	100 (millimeters part), 4 (inches part)

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::Types

Type of primitive.

Enumerator:

TypesSphere	sphere
TypesCylinder	cylinder
TypesBlock	block
TypesCircle	circle
TypesRectangle	rectangle

Member Function Documentation

NXOpen::Expression* NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::Height

(

)

Returns the height.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::HeightZ

(

)

Returns the height in z direction.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::LengthX

(

)

Returns the length in x direction.

Created in NX9.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::Origin

(

)

Returns the origin.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::SetOrigin

(

NXOpen::Point *

origin

)

Sets the origin.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

origin

origin

void NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::SetType

(

NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::Types

type

)

Sets the type.

Created in NX9.0.0.

License requirements : nx_subdivision (" NX SUBDIVISION")

Parameters

type

type

NXOpen::Expression* NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::Size

(

)

Returns the size.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::Types NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::Type

(

)

Returns the type.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::UpdateMesh

(

)

Updates the mesh data after changes in the origin.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::Subdivision::SubdivisionPrimitiveShapeBuilder::WidthY

(

)

Returns the width in y direction.

Created in NX9.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_Subdivision_SubdivisionPrimitiveShapeBuilder.hxx
