Sketch Fit Curve builder class. More...

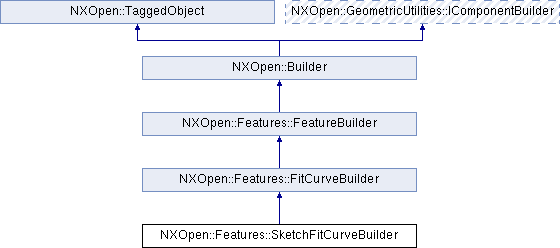

Inheritance diagram for NXOpen::Features::SketchFitCurveBuilder:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Features::FitCurveBuilder | |
| enum | FittingParametersOptions { FittingParametersOptionsDegreeAndSegments, FittingParametersOptionsDegreeAndTolerance, FittingParametersOptionsTemplateCurve } |
| Fitting parameters options. More... | |
| enum | ProjectionDirectionOptions { ProjectionDirectionOptionsXc, ProjectionDirectionOptionsYc, ProjectionDirectionOptionsZc, ProjectionDirectionOptionsNormal, ProjectionDirectionOptionsView, ProjectionDirectionOptionsVector } |
| Auxiliary curve projection direction options. More... | |
| enum | TargetSourceTypes { TargetSourceTypesInfer, TargetSourceTypesSpecifiedPoints, TargetSourceTypesChainedPoints, TargetSourceTypesCurve, TargetSourceTypesFace, TargetSourceTypesFacetBody } |
| Fitting target types. More... | |
| enum | Types { TypesFitSpline, TypesFitLine, TypesFitCircle, TypesFitEllipse } |
| Fitting types. More... | |
| Public Member Functions inherited from NXOpen::Features::FitCurveBuilder | |
| bool | CanKeepTemplateSelected () |
| Returns the flag indicating if template curve should be kept selected Created in NX8.5.0. | |
| bool | CanRejectPointsAutomatically () |
| Returns the flag indicating if points beyond a threshold value should be ignored during fitting Created in NX8.5.0. | |
| bool | CanUseAllPointsInPart () |
| Returns the flag indicating if all points in the part can be used for chaining Created in NX8.5.0. | |
| void | ChainAllPoints () |
| Chains all the points in work part based on one selected point and evaluates the curve. | |
| NXOpen::Features::GeometricConstraintDataManager * | ConstraintManager () |
| Returns the constraint manager Created in NX8.5.0. | |
| int | Degree () |
| Returns the degree Created in NX8.5.0. | |
| void | DeleteTargetPoints (const std::vector< NXOpen::Point * > &points) |
| Deletes target points Created in NX8.5.0. | |
| void | Evaluate () |
| Evaluates the curve Created in NX8.5.0. | |
| NXOpen::GeometricUtilities::CurveExtensionBuilder * | Extender () |
| Returns the extension option Created in NX8.5.0. | |
| NXOpen::Features::FitCurveBuilder::FittingParametersOptions | FittingParameters () |
| Returns the fitting parameters Created in NX8.5.0. | |
| NXOpen::Point * | GetFinalTargetPoint (int index) |
| Returns the target point that are finally used for fitting. | |
| int | GetFinalTargetPointsSize () |
| Returns the number of target points that are finally used for fitting. | |
| bool | HasRadius () |
| Returns the has radius Created in NX8.5.0. | |
| bool | HasReversedDirection () |
| Returns the flag indicating if fitted curve direction should be reversed Created in NX8.5.0. | |
| bool | HasUniformSegments () |
| Returns the flag indicating if uniform segments should be created Created in NX8.5.0. | |
| bool | IsAssociative () |
| Returns the flag indicating if a feature should be created Created in NX8.5.0. | |
| bool | IsClosedBSpline () |
| Returns the flag indicating if a closed b-spline is to be fitted Created in NX8.5.0. | |
| bool | IsClosedCurve () |
| Returns the flag indicating if a full circle or ellipse is to be fitted Created in NX8.5.0. | |
| void | MakeConstraint (NXOpen::Point *point) |
| In case of point targets, makes a target point a positional constraint. | |
| NXOpen::Direction * | ProjectionDirection () |
| Returns the projection direction Created in NX8.5.0. | |
| NXOpen::Features::FitCurveBuilder::ProjectionDirectionOptions | ProjectionDirectionOption () |
| Returns the projection direction option Created in NX8.5.0. | |
| NXOpen::Expression * | Radius () |
| Returns the circle radius Created in NX8.5.0. | |
| NXOpen::Expression * | RejectionThreshold () |
| Returns the rejection threshold Created in NX8.5.0. | |
| void | RemoveConstraint (NXOpen::Point *point) |
| Makes existing positional constraint a free target point Created in NX8.5.0. | |
| int | Segments () |
| Returns the segments Created in NX8.5.0. | |
| void | SetAssociative (bool associative) |
| Sets the flag indicating if a feature should be created Created in NX8.5.0. | |
| void | SetCanKeepTemplateSelected (bool canKeepTemplateSelected) |
| Sets the flag indicating if template curve should be kept selected Created in NX8.5.0. | |
| void | SetCanRejectPointsAutomatically (bool rejectPoints) |
| Sets the flag indicating if points beyond a threshold value should be ignored during fitting Created in NX8.5.0. | |
| void | SetCanUseAllPointsInPart (bool canUseAllPointsInPart) |
| Sets the flag indicating if all points in the part can be used for chaining Created in NX8.5.0. | |
| void | SetClosedBSpline (bool isClosed) |
| Sets the flag indicating if a closed b-spline is to be fitted Created in NX8.5.0. | |
| void | SetClosedCurve (bool isClosed) |
| Sets the flag indicating if a full circle or ellipse is to be fitted Created in NX8.5.0. | |
| void | SetDegree (int degree) |
| Sets the degree Created in NX8.5.0. | |
| void | SetFittingParameters (NXOpen::Features::FitCurveBuilder::FittingParametersOptions fittingParameters) |
| Sets the fitting parameters Created in NX8.5.0. | |
| void | SetHasRadius (bool hasRadius) |
| Sets the has radius Created in NX8.5.0. | |
| void | SetHasReversedDirection (bool hasReversedDirection) |
| Sets the flag indicating if fitted curve direction should be reversed Created in NX8.5.0. | |
| void | SetHasUniformSegments (bool hasUniformSegments) |
| Sets the flag indicating if uniform segments should be created Created in NX8.5.0. | |
| void | SetProjectionDirection (NXOpen::Direction *projectionDirection) |
| Sets the projection direction Created in NX8.5.0. | |
| void | SetProjectionDirectionOption (NXOpen::Features::FitCurveBuilder::ProjectionDirectionOptions projectionDirectionOption) |
| Sets the projection direction option Created in NX8.5.0. | |
| void | SetSegments (int segments) |
| Sets the segments Created in NX8.5.0. | |
| void | SetTargetSourceType (NXOpen::Features::FitCurveBuilder::TargetSourceTypes targetSourceType) |
| Sets the target type Created in NX8.5.0. | |
| void | SetTolerance (double tolerance) |
| Sets the tolerance Created in NX8.5.0. | |
| void | SetType (NXOpen::Features::FitCurveBuilder::Types type) |
| Sets the type Created in NX8.5.0. | |
| NXOpen::SelectTaggedObjectList * | Target () |
| Returns the target objects Created in NX8.5.0. | |
| NXOpen::Features::FitCurveBuilder::TargetSourceTypes | TargetSourceType () |
| Returns the target type Created in NX8.5.0. | |
| NXOpen::SelectSpline * | TemplateCurve () |
| Returns the template curve Created in NX8.5.0. | |
| double | Tolerance () |
| Returns the tolerance Created in NX8.5.0. | |
| NXOpen::Features::FitCurveBuilder::Types | Type () |
| Returns the type Created in NX8.5.0. | |
| void | UpdateTargetSelectionOnPointEditing () |
| Updates target selection by replacing original point by edited point. | |
Detailed Description
Sketch Fit Curve builder class.
To create a new instance of this class, use Features::FeatureCollection::CreateSketchFitCurveBuilder
Default values.
| Property | Value |
|---|---|
|
IsClosedCurve |
true |
|
ProjectionDirectionOption |
Normal |
|
Radius.Value |
50.0 (millimeters part), 2.0 (inches part) |
|
RejectionThreshold.Value |
10.0 (millimeters part), 0.5 (inches part) |
Created in NX8.5.0.
The documentation for this class was generated from the following file:
- Features_SketchFitCurveBuilder.hxx
