This is to create a Features::ShipDesign::TransitionBuilder which is used to create Detail Design elements from Basic Design elements. More...

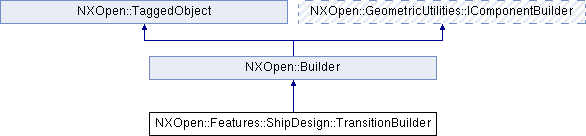

Inheritance diagram for NXOpen::Features::ShipDesign::TransitionBuilder:

Public Types
enum	TransitionMethods { TransitionMethodsUpdateExisting, TransitionMethodsCreateNew }
	Transition Method. More...

enum	TransitionTypes { TransitionTypesSection, TransitionTypesFrame }
	Transition Type. More...

Public Member Functions
void	SetFrameParts (std::vector< NXString > &framePartFilenames)
	Set frame part names.

void	SetSectionBlockParts (std::vector< NXString > &sectionParts)
	The section block part file name.

void	SetTransitionMethod (NXOpen::Features::ShipDesign::TransitionBuilder::TransitionMethods method)
	Sets the transition method.

void	SetTransitionType (NXOpen::Features::ShipDesign::TransitionBuilder::TransitionTypes type)
	Sets the transition type.

NXOpen::Features::ShipDesign::TransitionBuilder::TransitionMethods	TransitionMethod ()
	Returns the transition method.

NXOpen::Features::ShipDesign::TransitionBuilder::TransitionTypes	TransitionType ()
	Returns the transition type.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is to create a Features::ShipDesign::TransitionBuilder which is used to create Detail Design elements from Basic Design elements.

      <br> To create a new instance of this class, use @link Features::ShipCollection::CreateTransitionBuilder  Features::ShipCollection::CreateTransitionBuilder @endlink  <br>

Default values.

Property

Value

TransitionMethod

UpdateExisting

TransitionType

Section

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::TransitionBuilder::TransitionMethods

Transition Method.

Create New method means all transition will begin with a scratch Update Existing method means to update previous transitioned result

Enumerator:

TransitionMethodsUpdateExisting	update existing
TransitionMethodsCreateNew	create new

enum NXOpen::Features::ShipDesign::TransitionBuilder::TransitionTypes

Transition Type.

Section type means the basic design elements in speicified ship section will be transitioned. Frame type means specified basic design elements will be transitioned.

Enumerator:

TransitionTypesSection	section
TransitionTypesFrame	frame

Member Function Documentation

void NXOpen::Features::ShipDesign::TransitionBuilder::SetFrameParts ( std::vector< NXString > & framePartFilenames )

Set frame part names.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

framePartFilenames framepartfilenames

void NXOpen::Features::ShipDesign::TransitionBuilder::SetSectionBlockParts ( std::vector< NXString > & sectionParts )

The section block part file name.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

sectionParts sectionparts

void NXOpen::Features::ShipDesign::TransitionBuilder::SetTransitionMethod ( NXOpen::Features::ShipDesign::TransitionBuilder::TransitionMethods method )

Sets the transition method.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

method method

void NXOpen::Features::ShipDesign::TransitionBuilder::SetTransitionType ( NXOpen::Features::ShipDesign::TransitionBuilder::TransitionTypes type )

Sets the transition type.

Created in NX8.5.0.

License requirements : nx_ship_basic ("Ship Basic Design")

Parameters

type type

NXOpen::Features::ShipDesign::TransitionBuilder::TransitionMethods NXOpen::Features::ShipDesign::TransitionBuilder::TransitionMethod ( )

Returns the transition method.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::ShipDesign::TransitionBuilder::TransitionTypes NXOpen::Features::ShipDesign::TransitionBuilder::TransitionType ( )

Returns the transition type.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_TransitionBuilder.hxx
