   Represents a @link Features::ShipDesign::TransFrame Features::ShipDesign::TransFrame@endlink  builder
    <br> To create a new instance of this class, use @link Features::ShipCollection::CreateTransFrameBuilder  Features::ShipCollection::CreateTransFrameBuilder @endlink  <br>

Created in NX5.0.0. More...

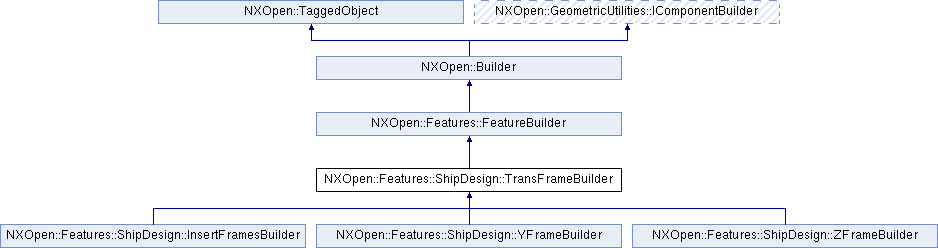

Inheritance diagram for NXOpen::Features::ShipDesign::TransFrameBuilder:

Public Member Functions
NXString	AttribName ()
	Returns the attribute for name type.

NXString	AttribRef ()
	Returns the attribute for reference type.

NXOpen::Features::ShipDesign::TransFrameListItemBuilder *	CreateTransFrameListItem ()
	Create a list containing all required info to generate transverse frame.

NXString	FeatureNameSuffix ()
	Returns the suffix name.

int	NegateFrame ()
	Returns the reverse index since where frames turn to opposite.

void	SetAttribName (const NXString &attribName)
	Sets the attribute for name type.

void	SetAttribName (const char *attribName)
	Sets the attribute for name type.

void	SetAttribRef (const NXString &attribRef)
	Sets the attribute for reference type.

void	SetAttribRef (const char *attribRef)
	Sets the attribute for reference type.

void	SetFeatureNameSuffix (const NXString &featureNameSuffix)
	Sets the suffix name.

void	SetFeatureNameSuffix (const char *featureNameSuffix)
	Sets the suffix name.

void	SetNegateFrame (int negateFrame)
	Sets the reverse index since where frames turn to opposite.

NXOpen::Features::ShipDesign::TransFrameListItemBuilderList *	TransFrameNegList ()
	Returns the negative list.

NXOpen::Features::ShipDesign::TransFrameListItemBuilderList *	TransFramePosList ()
	Returns the positive list.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

   Represents a @link Features::ShipDesign::TransFrame Features::ShipDesign::TransFrame@endlink  builder
    <br> To create a new instance of this class, use @link Features::ShipCollection::CreateTransFrameBuilder  Features::ShipCollection::CreateTransFrameBuilder @endlink  <br>

Created in NX5.0.0.

Member Function Documentation

NXString NXOpen::Features::ShipDesign::TransFrameBuilder::AttribName ( )

Returns the attribute for name type.

Created in NX5.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::TransFrameBuilder::AttribRef ( )

Returns the attribute for reference type.

Created in NX5.0.0.

License requirements : None

NXOpen::Features::ShipDesign::TransFrameListItemBuilder* NXOpen::Features::ShipDesign::TransFrameBuilder::CreateTransFrameListItem ( )

Create a list containing all required info to generate transverse frame.

Returns: Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

NXString NXOpen::Features::ShipDesign::TransFrameBuilder::FeatureNameSuffix ( )

Returns the suffix name.

Created in NX5.3.0.

License requirements : None

int NXOpen::Features::ShipDesign::TransFrameBuilder::NegateFrame ( )

Returns the reverse index since where frames turn to opposite.

Created in NX5.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::TransFrameBuilder::SetAttribName ( const NXString & attribName )

Sets the attribute for name type.

Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

attribName attribname

void NXOpen::Features::ShipDesign::TransFrameBuilder::SetAttribName ( const char * attribName )

Sets the attribute for name type.

Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

attribName attribname

void NXOpen::Features::ShipDesign::TransFrameBuilder::SetAttribRef ( const NXString & attribRef )

Sets the attribute for reference type.

Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

attribRef attribref

void NXOpen::Features::ShipDesign::TransFrameBuilder::SetAttribRef ( const char * attribRef )

Sets the attribute for reference type.

Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

attribRef attribref

void NXOpen::Features::ShipDesign::TransFrameBuilder::SetFeatureNameSuffix ( const NXString & featureNameSuffix )

Sets the suffix name.

Created in NX5.3.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

featureNameSuffix featurenamesuffix

void NXOpen::Features::ShipDesign::TransFrameBuilder::SetFeatureNameSuffix ( const char * featureNameSuffix )

Sets the suffix name.

Created in NX5.3.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

featureNameSuffix featurenamesuffix

void NXOpen::Features::ShipDesign::TransFrameBuilder::SetNegateFrame ( int negateFrame )

Sets the reverse index since where frames turn to opposite.

Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

negateFrame negateframe

NXOpen::Features::ShipDesign::TransFrameListItemBuilderList* NXOpen::Features::ShipDesign::TransFrameBuilder::TransFrameNegList ( )

Returns the negative list.

Created in NX5.0.0.

License requirements : None

NXOpen::Features::ShipDesign::TransFrameListItemBuilderList* NXOpen::Features::ShipDesign::TransFrameBuilder::TransFramePosList ( )

Returns the positive list.

Created in NX5.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_TransFrameBuilder.hxx
