   Represents a @link Features::ShipDesign::SteelDistribution Features::ShipDesign::SteelDistribution@endlink  builder
    <br> To create a new instance of this class, use @link Features::ShipCollection::CreateSteelDistributionBuilder  Features::ShipCollection::CreateSteelDistributionBuilder @endlink  <br>

Created in NX5.0.0. More...

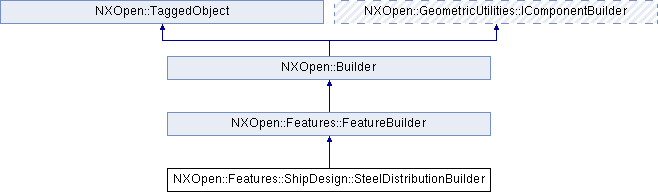

Inheritance diagram for NXOpen::Features::ShipDesign::SteelDistributionBuilder:

Public Types
enum	SaForm { SaFormFirstValue }
	Sa Form. More...

enum	SaMaterial { SaMaterialFirstValue }
	Sa Material. More...

enum	SaName { SaNameFirstValue }
	Sa Name. More...

enum	SaSize { SaSizeFirstValue }
	Sa Size. More...

enum	SaType { SaTypeFirstValue }
	Sa Type. More...

Public Member Functions
NXString	AssemblyPart ()
	Returns the assembly part Created in NX5.0.0.

NXString	Description ()
	Returns the description Created in NX5.0.0.

NXString	FeatureName ()
	Returns the description Created in NX5.0.0.

NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaForm	Form ()
	Returns the form Created in NX5.0.0.

NXString	ItemType ()
	Returns the Item Type.

NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaMaterial	Material ()
	Returns the material Created in NX5.0.0.

NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaName	Name ()
	Returns the name Created in NX5.0.0.

NXString	SaProject ()
	Returns the sa project Created in NX5.0.0.

NXString	SectionNumber ()
	Returns the section number Created in NX5.0.0.

void	SetAssemblyPart (const NXString &assemblyPart)
	Sets the assembly part Created in NX5.0.0.

void	SetAssemblyPart (const char *assemblyPart)
	Sets the assembly part Created in NX5.0.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX5.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX5.0.0.

void	SetFeatureName (const NXString &featureName)
	Sets the description Created in NX5.0.0.

void	SetFeatureName (const char *featureName)
	Sets the description Created in NX5.0.0.

void	SetForm (NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaForm form)
	Sets the form Created in NX5.0.0.

void	SetItemType (const NXString &itemType)
	Sets the Item Type.

void	SetItemType (const char *itemType)
	Sets the Item Type.

void	SetMaterial (NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaMaterial material)
	Sets the material Created in NX5.0.0.

void	SetName (NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaName name)
	Sets the name Created in NX5.0.0.

void	SetSaProject (const NXString &saProject)
	Sets the sa project Created in NX5.0.0.

void	SetSaProject (const char *saProject)
	Sets the sa project Created in NX5.0.0.

void	SetSectionNumber (const NXString &sectionNumber)
	Sets the section number Created in NX5.0.0.

void	SetSectionNumber (const char *sectionNumber)
	Sets the section number Created in NX5.0.0.

void	SetSize (NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaSize size)
	Sets the size Created in NX5.0.0.

void	SetSubComponent (bool subComponent)
	Sets the get subcomponent Created in NX5.0.0.

void	SetTemplateCategoryName (const NXString &templateCategoryName)
	Sets the Template Category Name.

void	SetTemplateCategoryName (const char *templateCategoryName)
	Sets the Template Category Name.

void	SetTemplateName (const NXString &templateName)
	Sets the Template Name.

void	SetTemplateName (const char *templateName)
	Sets the Template Name.

void	SetType (NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaType type)
	Sets the type Created in NX5.0.0.

NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaSize	Size ()
	Returns the size Created in NX5.0.0.

NXOpen::SelectBodyList *	SteelBodies ()
	Returns the steel bodies Created in NX5.0.0.

bool	SubComponent ()
	Returns the get subcomponent Created in NX5.0.0.

NXString	TemplateCategoryName ()
	Returns the Template Category Name.

NXString	TemplateName ()
	Returns the Template Name.

NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaType	Type ()
	Returns the type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

   Represents a @link Features::ShipDesign::SteelDistribution Features::ShipDesign::SteelDistribution@endlink  builder
    <br> To create a new instance of this class, use @link Features::ShipCollection::CreateSteelDistributionBuilder  Features::ShipCollection::CreateSteelDistributionBuilder @endlink  <br>

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaForm

Sa Form.

Enumerator:

SaFormFirstValue

first value

enum NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaMaterial

Sa Material.

Enumerator:

SaMaterialFirstValue

first value

enum NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaName

Sa Name.

Enumerator:

SaNameFirstValue

first value

enum NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaSize

Sa Size.

Enumerator:

SaSizeFirstValue

first value

enum NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaType

Sa Type.

Enumerator:

SaTypeFirstValue

first value

Member Function Documentation

NXString NXOpen::Features::ShipDesign::SteelDistributionBuilder::AssemblyPart ( )

Returns the assembly part
Created in NX5.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::SteelDistributionBuilder::Description ( )

Returns the description
Created in NX5.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::SteelDistributionBuilder::FeatureName ( )

Returns the description
Created in NX5.0.0.

License requirements : None

NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaForm NXOpen::Features::ShipDesign::SteelDistributionBuilder::Form ( )

Returns the form
Created in NX5.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::SteelDistributionBuilder::ItemType ( )

Returns the Item Type.

Only used in managed mode, ignored in native mode.
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaMaterial NXOpen::Features::ShipDesign::SteelDistributionBuilder::Material ( )

Returns the material
Created in NX5.0.0.

License requirements : None

NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaName NXOpen::Features::ShipDesign::SteelDistributionBuilder::Name ( )

Returns the name
Created in NX5.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaProject ( )

Returns the sa project
Created in NX5.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::SteelDistributionBuilder::SectionNumber ( )

Returns the section number
Created in NX5.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetAssemblyPart ( const NXString & assemblyPart )

Sets the assembly part
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

assemblyPart assemblypart

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetAssemblyPart ( const char * assemblyPart )

Sets the assembly part
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

assemblyPart assemblypart

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetDescription ( const NXString & description )

Sets the description
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

description description

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetDescription ( const char * description )

Sets the description
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

description description

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetFeatureName ( const NXString & featureName )

Sets the description
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

featureName featurename

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetFeatureName ( const char * featureName )

Sets the description
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

featureName featurename

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetForm ( NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaForm form )

Sets the form
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

form form

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetItemType ( const NXString & itemType )

Sets the Item Type.

Only used in managed mode, ignored in native mode.
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

itemType itemtype

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetItemType ( const char * itemType )

Sets the Item Type.

Only used in managed mode, ignored in native mode.
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

itemType itemtype

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetMaterial ( NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaMaterial material )

Sets the material
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

material material

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetName ( NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaName name )

Sets the name
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

name name

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetSaProject ( const NXString & saProject )

Sets the sa project
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

saProject saproject

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetSaProject ( const char * saProject )

Sets the sa project
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

saProject saproject

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetSectionNumber ( const NXString & sectionNumber )

Sets the section number
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

sectionNumber sectionnumber

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetSectionNumber ( const char * sectionNumber )

Sets the section number
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

sectionNumber sectionnumber

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetSize ( NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaSize size )

Sets the size
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

size size

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetSubComponent ( bool subComponent )

Sets the get subcomponent
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

subComponent subcomponent

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetTemplateCategoryName ( const NXString & templateCategoryName )

Sets the Template Category Name.

Only used in managed mode, ignored in native mode.
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

templateCategoryName templatecategoryname

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetTemplateCategoryName ( const char * templateCategoryName )

Sets the Template Category Name.

Only used in managed mode, ignored in native mode.
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

templateCategoryName templatecategoryname

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetTemplateName ( const NXString & templateName )

Sets the Template Name.

Only used in managed mode, ignored in native mode.
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

templateName templatename

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetTemplateName ( const char * templateName )

Sets the Template Name.

Only used in managed mode, ignored in native mode.
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

templateName templatename

void NXOpen::Features::ShipDesign::SteelDistributionBuilder::SetType ( NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaType type )

Sets the type
Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

type type

NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaSize NXOpen::Features::ShipDesign::SteelDistributionBuilder::Size ( )

Returns the size
Created in NX5.0.0.

License requirements : None

NXOpen::SelectBodyList* NXOpen::Features::ShipDesign::SteelDistributionBuilder::SteelBodies ( )

Returns the steel bodies
Created in NX5.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::SteelDistributionBuilder::SubComponent ( )

Returns the get subcomponent
Created in NX5.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::SteelDistributionBuilder::TemplateCategoryName ( )

Returns the Template Category Name.

Only used in managed mode, ignored in native mode.
Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::SteelDistributionBuilder::TemplateName ( )

Returns the Template Name.

Only used in managed mode, ignored in native mode.
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::SteelDistributionBuilder::SaType NXOpen::Features::ShipDesign::SteelDistributionBuilder::Type ( )

Returns the type
Created in NX5.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_SteelDistributionBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
