Represents a @link Features::ShipDesign::SteelCollarPlate Features::ShipDesign::SteelCollarPlate@endlink builder
<br> To create a new instance of this class, use @link Features::ShipCollection::CreateSteelCollarPlateBuilder Features::ShipCollection::CreateSteelCollarPlateBuilder @endlink <br>
Default values. More...

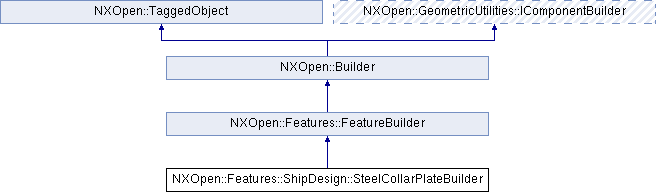

Public Member Functions | |
| std::vector< NXString > | GetAvailablePlateSizes () |
| The list of available plate sizes. | |
| bool | IsInternal () |
| Returns the is internal toggle. | |
| bool | KeepSelectFace () |
| Returns the keep select face. | |
| bool | KeepSelectProfileBody () |
| Returns the keep select profile body. | |
| int | PlateSize () |
| Returns the plate size. | |
| NXOpen::SelectFace * | SelectFace () |
| Returns the select face. | |
| NXOpen::SelectBody * | SelectProfileBody () |
| Returns the select profile body. | |
| void | SetInternal (bool isInternal) |
| Sets the is internal toggle. | |
| void | SetKeepSelectFace (bool keepSelectFace) |
| Sets the keep select face. | |
| void | SetKeepSelectProfileBody (bool keepSelectProfileBody) |
| Sets the keep select profile body. | |
| void | SetPlateSize (int plateSize) |
| Sets the plate size. | |
 Public Member Functions inherited from NXOpen::Features::FeatureBuilder | |
| NXOpen::Features::Feature * | CommitFeature () |
| Commits the feature parameters and creates the feature. | |
| NXOpen::Features::Feature * | GetFeature () |
| Returns the feature currently being edited by this builder. | |
| void | HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature) |
| Re-suppress an internal parent feature (a slave feature) after it has been edited. | |
| bool | ParentFeatureInternal () |
| Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| bool | PatchSolutionFlag () |
| Returns the patch solution flag Created in NX8.0.1. | |
| NXString | PatchSurfaceFilename () |
| Returns the patch surface filename Created in NX8.0.1. | |
| void | SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0. | |
| void | SetParentFeatureInternal (bool isInternal) |
| Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| void | SetPatchSolutionFlag (bool optionValue) |
| Sets the patch solution flag Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const NXString &surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const char *surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature) |
| Unsuppress an internal parent feature (a slave feature) so it can be edited. | |
| NXString | SurroundingPatchSurfaceFilename () |
| Returns the surrounding patch surface filename Created in NX8.0.1. | |
| void | UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the internal parent feature of the feature being edited to external Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a @link Features::ShipDesign::SteelCollarPlate Features::ShipDesign::SteelCollarPlate@endlink builder
<br> To create a new instance of this class, use @link Features::ShipCollection::CreateSteelCollarPlateBuilder Features::ShipCollection::CreateSteelCollarPlateBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
IsInternal |
0 |
|
KeepSelectFace |
0 |
|
KeepSelectProfileBody |
0 |
Created in NX7.5.0.
Member Function Documentation
| std::vector<NXString> NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::GetAvailablePlateSizes | ( | ) |
The list of available plate sizes.
Note this list will change every time the selected profile body changes.
- Returns
- Array of available plate sizes. These names are specified by a special sketch naming convention for sketches loaded in the profile library.
Created in NX7.5.0.
License requirements : None
| bool NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::IsInternal | ( | ) |
Returns the is internal toggle.
Is this plate inside the profile cutout, or slapped onto the outside of the placement face?
Created in NX7.5.0.
License requirements : None
| bool NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::KeepSelectFace | ( | ) |
Returns the keep select face.
Determines whether or not we should reuse the same selected face on apply.
Created in NX7.5.0.
License requirements : None
| bool NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::KeepSelectProfileBody | ( | ) |
Returns the keep select profile body.
Determines whether or not we should reuse the same selected profile body on apply.
Created in NX7.5.0.
License requirements : None
| int NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::PlateSize | ( | ) |
Returns the plate size.
Note: when the selected profile body changes, the available sizes will also change. Therefore, after changing the selected profile, you must call GetAvailablePlateSizes before you can set this PlateSize value.
Created in NX7.5.0.
License requirements : None
| NXOpen::SelectFace* NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::SelectFace | ( | ) |
Returns the select face.
The face is used along with the profile body to determine the placement of the collar plate feature. Typically this face will already have a profile cutout feature and the collar plate is used to "fill the gap" caused by the profile cutout.
Created in NX7.5.0.
License requirements : None
| NXOpen::SelectBody* NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::SelectProfileBody | ( | ) |
Returns the select profile body.
The profile body determines what sizes of collar plate features are available,
and where to place the collar plate feature.
Created in NX7.5.0.
License requirements : None
| void NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::SetInternal | ( | bool | isInternal | ) |
Sets the is internal toggle.
Is this plate inside the profile cutout, or slapped onto the outside of the placement face?
Created in NX7.5.0.
License requirements : nx_ship_concept ("Ship Concept")
- Parameters
-
isInternal isinternal
| void NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::SetKeepSelectFace | ( | bool | keepSelectFace | ) |
Sets the keep select face.
Determines whether or not we should reuse the same selected face on apply.
Created in NX7.5.0.
License requirements : nx_ship_concept ("Ship Concept")
- Parameters
-
keepSelectFace keepselectface
| void NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::SetKeepSelectProfileBody | ( | bool | keepSelectProfileBody | ) |
Sets the keep select profile body.
Determines whether or not we should reuse the same selected profile body on apply.
Created in NX7.5.0.
License requirements : nx_ship_concept ("Ship Concept")
- Parameters
-
keepSelectProfileBody keepselectprofilebody
| void NXOpen::Features::ShipDesign::SteelCollarPlateBuilder::SetPlateSize | ( | int | plateSize | ) |
Sets the plate size.
Note: when the selected profile body changes, the available sizes will also change. Therefore, after changing the selected profile, you must call GetAvailablePlateSizes before you can set this PlateSize value.
Created in NX7.5.0.
License requirements : nx_ship_concept ("Ship Concept")
- Parameters
-
plateSize platesize
The documentation for this class was generated from the following file:
- Features_ShipDesign_SteelCollarPlateBuilder.hxx
