Represents the standard part framework builder to add or edit ship standard part. More...

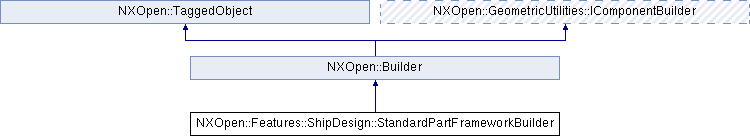

Inheritance diagram for NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder:

Public Types
enum	SmartRuleStage { SmartRuleStagePreUpdate, SmartRuleStagePostUpdate }
	Indicates the stage of the smart rule. More...

Public Member Functions
void	AddStandardPart ()
	Adds a standard part into the assembly context, restores the broken wave links and renames the standard part when all external references are defined.

void	ApplySmartRuleResult (std::vector< NXString > &pStrParamName, std::vector< NXString > &pStrParamValue)
	Applies the smart rule results to the spreadsheet data block.

void	CheckInterference ()
	Checks the clearance between the standard parts and the other components in current assembly.

void	CheckSpreadsheetInput (NXOpen::Features::ShipDesign::StandardPartItemBuilder *pItemBuilder, std::vector< NXString > &ppStrParamName, std::vector< NXString > &ppStrParamValue)
	Looks for the parameter values that are owned by reference geometeries(Attributes) and/or template parts(attributes or expressions) and used as inputs to look for the parameter values in spreadsheet.

NXString	ConfigAttribute ()
	Returns the configure attribute, which is read from the design environment by the settings in the configuration XML file.

NXOpen::Features::ShipDesign::StandardPartItemBuilder *	CreateStandardPartItem (NXOpen::Features::ShipDesign::StandardPartItemBuilder *refBuilder)
	Creates a new StandardPartItemBuilder and intialize the builder with data from the reference builder.

void	EndRunSmartRule (NXOpen::Features::ShipDesign::StandardPartItemBuilder *pItemBuilder)
	End run the smart rules.

NXString	FirstCompartment ()
	Returns the first compartment option.

void	FlipThicknessDirection (bool bUpdateModel)
	Flips the standard part thickness direction.

void	GetDataFile (bool updateConfiguration)
	Retrieves the data file name from the registration spread sheet.

NXString	GetModelFile ()
	Retrieves the model file name from the registration spread sheet.

NXString	GetStandardPartName (bool bFullName)
	Returns the default name of the added standard part name.

NXOpen::Features::ShipDesign::ManufacturingStockBuilder *	ManufacturingStock ()
	Returns the manufacturing stock builder that holds the manufacturing data.

void	ModifySpreadsheetData (std::vector< NXString > &strParamName, std::vector< NXString > &strParamValue)
	Modifies specific parameter values without change parameter statuses.

NXString	PartCategory ()
	Returns the part category, which is defined in registration file.

NXString	PartSubType ()
	Returns the part sub type, which is the sub category of sub type.

NXString	PartType ()
	Returns the part type, which is the sub category of part type.

void	PostUpdate ()
	Does the final check to finish the process of updating standar parts.

void	RemoveInstance (NXOpen::Features::ShipDesign::StandardPartItemBuilder *itemBuilder)
	Removes the standard part instance.

void	ResetPartIndex ()
	Resets the standard part index so that the next standard part would be added with the index in its name starting from 1.

void	ResetRuleInputCache ()
	Resets rule trigger source cache so the rule trigger evaluation can start from original point.

bool	ReverseDirection ()
	Returns the option whether to reverse direction.

void	RunSmartRule (NXOpen::Features::ShipDesign::StandardPartItemBuilder *pItemBuilder, NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SmartRuleStage stage, std::vector< NXString > &ppStrParamName, std::vector< NXString > &ppStrParamValue, std::vector< NXString > &ppStrParamDescription)
	Runs the smart rule engine to get the inference result.

NXString	SecondCompartment ()
	Returns the second compartment option.

void	SetConfigAttribute (const NXString &strConfigAttr)
	Sets the configure attribute, which is read from the design environment by the settings in the configuration XML file.

void	SetConfigAttribute (const char *strConfigAttr)
	Sets the configure attribute, which is read from the design environment by the settings in the configuration XML file.

void	SetCurrentStandardPartItem (NXOpen::Features::ShipDesign::StandardPartItemBuilder *pCurItemBuilder)
	Sets the current standard part item that is edited.

void	SetFirstCompartment (const NXString &firstOption)
	Sets the first compartment option.

void	SetFirstCompartment (const char *firstOption)
	Sets the first compartment option.

void	SetPartCategory (const NXString &partType)
	Sets the part category, which is defined in registration file.

void	SetPartCategory (const char *partType)
	Sets the part category, which is defined in registration file.

void	SetPartSubType (const NXString &partLeafType)
	Sets the part sub type, which is the sub category of sub type.

void	SetPartSubType (const char *partLeafType)
	Sets the part sub type, which is the sub category of sub type.

void	SetPartType (const NXString &partSubType)
	Sets the part type, which is the sub category of part type.

void	SetPartType (const char *partSubType)
	Sets the part type, which is the sub category of part type.

void	SetReverseDirection (bool reverseDirectionOption)
	Sets the option whether to reverse direction.

void	SetSecondCompartment (const NXString &secondOption)
	Sets the second compartment option.

void	SetSecondCompartment (const char *secondOption)
	Sets the second compartment option.

void	SetStandardPartGroupOption (bool stdPartGroupOption)
	Sets the option whether to group multiple standard parts together to share the same parameters during the update when editing.

void	SetThicknessDirection (NXOpen::Features::ShipDesign::StandardPartItemBuilder::Direction thicknessDirectionOption)
	Sets the option whether to change thickness direction.

void	SetView ()
	Sets the current view normal to the main plane, which is the base plane to construct the primary sketch in the template part.

bool	StandardPartGroupOption ()
	Returns the option whether to group multiple standard parts together to share the same parameters during the update when editing.

NXOpen::Features::ShipDesign::StandardPartItemBuilder *	StandardPartItem ()
	Returns the standard part item, which is the builder of the selection item.

NXOpen::Features::ShipDesign::StandardPartItemBuilderList *	StandardPartList ()
	Returns the standard part list, which supports to add more than one standard part at one time.

NXOpen::Expression *	Thickness ()
	Returns the standard part thickness.

NXOpen::Features::ShipDesign::StandardPartItemBuilder::Direction	ThicknessDirection ()
	Returns the option whether to change thickness direction.

void	UpdateModel ()
	Updates all standard parts.

void	UpdateSpreadsheetData (std::vector< NXString > &strParamName, std::vector< NXString > &strParamValue, const std::vector< int > &pnParamStatus)
	Updates the parameter values which are defined in the parameter spreadsheet.

void	UpdateSpreadsheetDataNoUpdate (std::vector< NXString > &strParamName, std::vector< NXString > &strParamValue, const std::vector< int > &pnParamStatus)
	Updates the parameter values which are defined in the parameter spreadsheet but not update the standard parts.

void	UpdateThickness (bool bUpdateModel)
	Updates the user input thickness to the standard parts.

void	UpdateThicknessDirection (bool bUpdateModel)
	Updates the standard part thickness direction.

NXOpen::Weld::CharacteristicsBuilder *	WeldCharacteristics ()
	Returns the weld characteristics.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the standard part framework builder to add or edit ship standard part.

To create a new instance of this class, use Features::ShipCollection::CreateStandardPartFrameworkBuilder
Default values.

Property

Value

Thickness.Value (deprecated)

5 (millimeters part), 0.02 (inches part)

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SmartRuleStage

Indicates the stage of the smart rule.

Enumerator:

SmartRuleStagePreUpdate	In pre-update stage.
SmartRuleStagePostUpdate	In post-update stage.

Member Function Documentation

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::AddStandardPart ( )

Adds a standard part into the assembly context, restores the broken wave links and renames the standard part when all external references are defined.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::ApplySmartRuleResult	(	std::vector< NXString > &	pStrParamName,
		std::vector< NXString > &	pStrParamValue
	)

Applies the smart rule results to the spreadsheet data block.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

pStrParamName	pstrparamname
pStrParamValue	pstrparamvalue

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::CheckInterference ( )

Checks the clearance between the standard parts and the other components in current assembly.

       There are two types of interference to be checked. 1) Interference between standard part and
       other componenets, and 2) interference between standard part and cutouts.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::CheckSpreadsheetInput	(	NXOpen::Features::ShipDesign::StandardPartItemBuilder *	pItemBuilder,
		std::vector< NXString > &	ppStrParamName,
		std::vector< NXString > &	ppStrParamValue
	)

Looks for the parameter values that are owned by reference geometeries(Attributes) and/or template parts(attributes or expressions) and used as inputs to look for the parameter values in spreadsheet.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

pItemBuilder	pitembuilder
ppStrParamName	ppstrparamname
ppStrParamValue	ppstrparamvalue

NXString NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::ConfigAttribute ( )

Returns the configure attribute, which is read from the design environment by the settings in the configuration XML file.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StandardPartItemBuilder* NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::CreateStandardPartItem ( NXOpen::Features::ShipDesign::StandardPartItemBuilder * refBuilder )

Creates a new StandardPartItemBuilder and intialize the builder with data from the reference builder.

        @return

Created in NX8.0.0.

License requirements : None

Parameters

refBuilder refbuilder

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::EndRunSmartRule ( NXOpen::Features::ShipDesign::StandardPartItemBuilder * pItemBuilder )

End run the smart rules.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

pItemBuilder pitembuilder

NXString NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::FirstCompartment ( )

Returns the first compartment option.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::FlipThicknessDirection ( bool bUpdateModel )

Flips the standard part thickness direction.

If bUpdateModel is true, the model will be updated. If it is false, the thickness direction will be flipped but the model will not be updated.

Deprecated:: Deprecated in NX8.0.3. Use Features::ShipDesign::StandardPartFrameworkBuilder .ModifySpreadSheetData() instead.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

bUpdateModel bupdatemodel

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::GetDataFile ( bool updateConfiguration )

Retrieves the data file name from the registration spread sheet.

Created in NX8.0.0.

License requirements : None

Parameters

updateConfiguration Whether to update the selection configuration

NXString NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::GetModelFile ( )

Retrieves the model file name from the registration spread sheet.

        @return

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::GetStandardPartName ( bool bFullName )

Returns the default name of the added standard part name.

        @return

Created in NX8.0.0.

License requirements : None

Parameters

bFullName bfullname

NXOpen::Features::ShipDesign::ManufacturingStockBuilder* NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::ManufacturingStock ( )

Returns the manufacturing stock builder that holds the manufacturing data.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::ModifySpreadsheetData	(	std::vector< NXString > &	strParamName,
		std::vector< NXString > &	strParamValue
	)

Modifies specific parameter values without change parameter statuses.

This could be used to apply smart rule result.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

strParamName	strparamname
strParamValue	strparamvalue

NXString NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::PartCategory ( )

Returns the part category, which is defined in registration file.

The typical standard part types include stiffener end bracket, collar plate, tripping bracket, flat bar etc.
Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::PartSubType ( )

Returns the part sub type, which is the sub category of sub type.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::PartType ( )

Returns the part type, which is the sub category of part type.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::PostUpdate ( )

Does the final check to finish the process of updating standar parts.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::RemoveInstance ( NXOpen::Features::ShipDesign::StandardPartItemBuilder * itemBuilder )

Removes the standard part instance.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

itemBuilder itembuilder

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::ResetPartIndex ( )

Resets the standard part index so that the next standard part would be added with the index in its name starting from 1.

Created in NX8.5.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::ResetRuleInputCache ( )

Resets rule trigger source cache so the rule trigger evaluation can start from original point.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

bool NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::ReverseDirection ( )

Returns the option whether to reverse direction.

Deprecated:: Deprecated in NX8.0.3. Removed with no replacement

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::RunSmartRule	(	NXOpen::Features::ShipDesign::StandardPartItemBuilder *	pItemBuilder,
		NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SmartRuleStage	stage,
		std::vector< NXString > &	ppStrParamName,
		std::vector< NXString > &	ppStrParamValue,
		std::vector< NXString > &	ppStrParamDescription
	)

Runs the smart rule engine to get the inference result.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

pItemBuilder	pitembuilder
stage	stage
ppStrParamName	ppstrparamname
ppStrParamValue	ppstrparamvalue
ppStrParamDescription	ppstrparamdescription

NXString NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SecondCompartment ( )

Returns the second compartment option.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetConfigAttribute ( const NXString & strConfigAttr )

Sets the configure attribute, which is read from the design environment by the settings in the configuration XML file.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

strConfigAttr strconfigattr

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetConfigAttribute ( const char * strConfigAttr )

Sets the configure attribute, which is read from the design environment by the settings in the configuration XML file.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

strConfigAttr strconfigattr

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetCurrentStandardPartItem ( NXOpen::Features::ShipDesign::StandardPartItemBuilder * pCurItemBuilder )

Sets the current standard part item that is edited.

This is useful if standard part framework works in non-group mode.

Created in NX8.5.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

pCurItemBuilder pcuritembuilder

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetFirstCompartment ( const NXString & firstOption )

Sets the first compartment option.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

firstOption firstoption

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetFirstCompartment ( const char * firstOption )

Sets the first compartment option.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

firstOption firstoption

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetPartCategory ( const NXString & partType )

Sets the part category, which is defined in registration file.

The typical standard part types include stiffener end bracket, collar plate, tripping bracket, flat bar etc.
Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

partType parttype

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetPartCategory ( const char * partType )

Sets the part category, which is defined in registration file.

The typical standard part types include stiffener end bracket, collar plate, tripping bracket, flat bar etc.
Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

partType parttype

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetPartSubType ( const NXString & partLeafType )

Sets the part sub type, which is the sub category of sub type.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

partLeafType partleaftype

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetPartSubType ( const char * partLeafType )

Sets the part sub type, which is the sub category of sub type.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

partLeafType partleaftype

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetPartType ( const NXString & partSubType )

Sets the part type, which is the sub category of part type.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

partSubType partsubtype

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetPartType ( const char * partSubType )

Sets the part type, which is the sub category of part type.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

partSubType partsubtype

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetReverseDirection ( bool reverseDirectionOption )

Sets the option whether to reverse direction.

Deprecated:: Deprecated in NX8.0.3. Use Features::ShipDesign::StandardPartFrameworkBuilder .ModifySpreadSheetData() instead.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

reverseDirectionOption reversedirectionoption

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetSecondCompartment ( const NXString & secondOption )

Sets the second compartment option.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

secondOption secondoption

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetSecondCompartment ( const char * secondOption )

Sets the second compartment option.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

secondOption secondoption

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetStandardPartGroupOption ( bool stdPartGroupOption )

Sets the option whether to group multiple standard parts together to share the same parameters during the update when editing.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

stdPartGroupOption stdpartgroupoption

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetThicknessDirection ( NXOpen::Features::ShipDesign::StandardPartItemBuilder::Direction thicknessDirectionOption )

Sets the option whether to change thickness direction.

Created in NX8.5.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

thicknessDirectionOption thicknessdirectionoption

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::SetView ( )

Sets the current view normal to the main plane, which is the base plane to construct the primary sketch in the template part.

If there is no sketch found, nothing will be done.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

bool NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::StandardPartGroupOption ( )

Returns the option whether to group multiple standard parts together to share the same parameters during the update when editing.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StandardPartItemBuilder* NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::StandardPartItem ( )

Returns the standard part item, which is the builder of the selection item.

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StandardPartItemBuilderList* NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::StandardPartList ( )

Returns the standard part list, which supports to add more than one standard part at one time.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::Thickness ( )

Returns the standard part thickness.

Deprecated:: Deprecated in NX8.0.3. Removed with no replacement

Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::StandardPartItemBuilder::Direction NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::ThicknessDirection ( )

Returns the option whether to change thickness direction.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::UpdateModel ( )

Updates all standard parts.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::UpdateSpreadsheetData	(	std::vector< NXString > &	strParamName,
		std::vector< NXString > &	strParamValue,
		const std::vector< int > &	pnParamStatus
	)

Updates the parameter values which are defined in the parameter spreadsheet.

It also updates the standard parts.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

strParamName	strparamname
strParamValue	strparamvalue
pnParamStatus	pnparamstatus

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::UpdateSpreadsheetDataNoUpdate	(	std::vector< NXString > &	strParamName,
		std::vector< NXString > &	strParamValue,
		const std::vector< int > &	pnParamStatus
	)

Updates the parameter values which are defined in the parameter spreadsheet but not update the standard parts.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

strParamName	strparamname
strParamValue	strparamvalue
pnParamStatus	pnparamstatus

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::UpdateThickness ( bool bUpdateModel )

Updates the user input thickness to the standard parts.

If bUpdateModel is true, the model will be updated. If it is false, the thickness value will be changed but the model will not be updated.

Deprecated:: Deprecated in NX8.0.3. Use Features::ShipDesign::StandardPartFrameworkBuilder .ModifySpreadSheetData() instead.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

bUpdateModel bupdatemodel

void NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::UpdateThicknessDirection ( bool bUpdateModel )

Updates the standard part thickness direction.

If bUpdateModel is true, the model will be updated. If it is false, the thickness direction will be flipped but the model will not be updated.

Created in NX8.5.0.

License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_basic ("Ship Basic Design")

Parameters

bUpdateModel bupdatemodel

NXOpen::Weld::CharacteristicsBuilder* NXOpen::Features::ShipDesign::StandardPartFrameworkBuilder::WeldCharacteristics ( )

Returns the weld characteristics.

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_StandardPartFrameworkBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
