Represents a shell template feature. More...

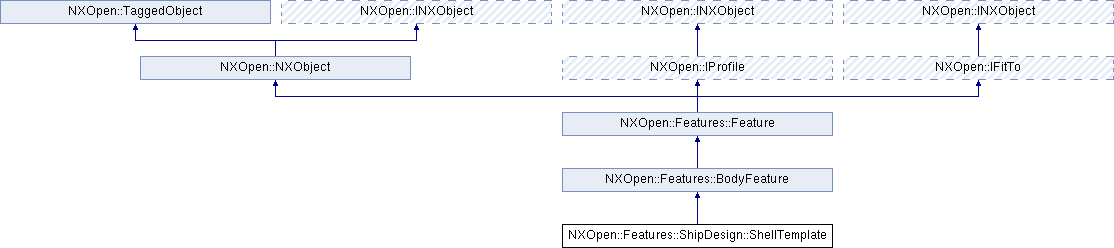

Inheritance diagram for NXOpen::Features::ShipDesign::ShellTemplate:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Features::Feature | |
| enum | BooleanType { BooleanTypeCreate, BooleanTypeUnite, BooleanTypeSubtract, BooleanTypeIntersect, BooleanTypeEmbossNormalSide = 8, BooleanTypeEmbossOppositeNormalSide } |
| Boolean operation type. More... | |
| enum | DiagnosticType { DiagnosticTypeInformation = 1, DiagnosticTypeWarning } |
| Diagnostic type. More... | |
| Public Member Functions inherited from NXOpen::Features::BodyFeature | |
| std::vector< NXOpen::Body * > | GetBodies () |
| Returns the bodies created by the feature. | |
| std::vector< NXOpen::Edge * > | GetEdges () |
| Returns the edges created by the feature. | |
| std::vector< NXOpen::Face * > | GetFaces () |
| Returns the faces created by the feature. | |
Detailed Description
Represents a shell template feature.
The template is made up of a grid of sheets, or thin solids, that would physically sit on the floor and the ship shell (typically the hull) would be placed on top of the templates to measure and verify the shape of the shell. The physical fixture eventually created in the manufacturing environment may be framed inside (or together) with a box.
To create or edit an instance of this class, use Features::ShipDesign::ShellTemplateBuilder
Created in NX8.0.0.
The documentation for this class was generated from the following file:
- Features_ShipDesign_ShellTemplate.hxx
