NXOpen::Features::ShipDesign::ProfileTransitionBuilder Class Reference

Builder used to create or edit a Features::ShipDesign::ProfileTransition feature. More...

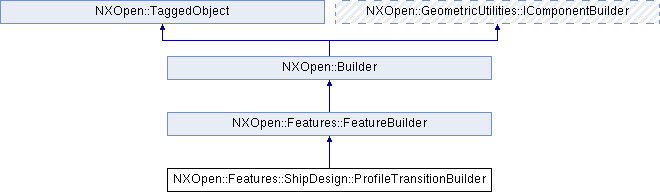

Inheritance diagram for NXOpen::Features::ShipDesign::ProfileTransitionBuilder:

Public Types
enum	FeatureModeType { FeatureModeTypeTarget, FeatureModeTypeSeparateWebAndFace, FeatureModeTypeSeparateFace }
	Represents the feature mode option. More...

Public Member Functions
double	AngularTolerance ()
	Returns the angular tolerance (degrees) Created in NX9.0.0.
NXOpen::ScCollector *	Boundaries ()
	Returns the collector containing the boundary bodies.
double	DistanceTolerance ()
	Returns the distance tolerance (part units) Created in NX9.0.0.
NXOpen::Features::ShipDesign::ProfileTransitionBuilder::FeatureModeType	FeatureMode ()
	Returns the feature mode to used create new Profile Transition features.
void	SetAngularTolerance (double angularTolerance)
	Sets the angular tolerance (degrees) Created in NX9.0.0.
void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance (part units) Created in NX9.0.0.
void	SetFeatureMode (NXOpen::Features::ShipDesign::ProfileTransitionBuilder::FeatureModeType featureMode)
	Sets the feature mode to used create new Profile Transition features.
NXOpen::Features::ShipDesign::SteelFeatureSpreadsheetBuilder *	Spreadsheet ()
	Returns the spreadsheet builder.
NXOpen::ScCollector *	Targets ()
	Returns the collector containing the target bodies.
Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.
NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.
bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.
NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.
void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.
void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.
NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Builder used to create or edit a Features::ShipDesign::ProfileTransition feature.

     <br> To create a new instance of this class, use @link Features::ShipCollection::CreateProfileTransitionBuilder  Features::ShipCollection::CreateProfileTransitionBuilder @endlink  <br>

Default values.

Property	Value
AngularTolerance	0.5
DistanceTolerance	0.0254 (millimeters part), 0.001 (inches part)
FeatureMode	Target

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::ProfileTransitionBuilder::FeatureModeType

Represents the feature mode option.

Enumerator:

FeatureModeTypeTarget	Create transition on the target body.
FeatureModeTypeSeparateWebAndFace	Create in seperate parts for web and face plate.
FeatureModeTypeSeparateFace	Create web trim on target body and face plate in a seperate part.

Member Function Documentation

double NXOpen::Features::ShipDesign::ProfileTransitionBuilder::AngularTolerance

(

)

Returns the angular tolerance (degrees)
Created in NX9.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::ShipDesign::ProfileTransitionBuilder::Boundaries

(

)

Returns the collector containing the boundary bodies.

Created in NX9.0.0.

License requirements : None

double NXOpen::Features::ShipDesign::ProfileTransitionBuilder::DistanceTolerance

(

)

Returns the distance tolerance (part units)
Created in NX9.0.0.

License requirements : None

NXOpen::Features::ShipDesign::ProfileTransitionBuilder::FeatureModeType NXOpen::Features::ShipDesign::ProfileTransitionBuilder::FeatureMode

(

)

Returns the feature mode to used create new Profile Transition features.

Created in NX9.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::ProfileTransitionBuilder::SetAngularTolerance

(

double

angularTolerance

)

Sets the angular tolerance (degrees)
Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

angularTolerance

angulartolerance

void NXOpen::Features::ShipDesign::ProfileTransitionBuilder::SetDistanceTolerance

(

double

distanceTolerance

)

Sets the distance tolerance (part units)
Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

distanceTolerance

distancetolerance

void NXOpen::Features::ShipDesign::ProfileTransitionBuilder::SetFeatureMode

(

NXOpen::Features::ShipDesign::ProfileTransitionBuilder::FeatureModeType

featureMode

)

Sets the feature mode to used create new Profile Transition features.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

featureMode

featuremode

NXOpen::Features::ShipDesign::SteelFeatureSpreadsheetBuilder* NXOpen::Features::ShipDesign::ProfileTransitionBuilder::Spreadsheet

(

)

Returns the spreadsheet builder.

        <br>
       Users can specify the Profile Transition length in the spreadsheet. The spreadsheet
       is controlled by the @link Features::ShipDesign::SteelFeatureSpreadsheetBuilder Features::ShipDesign::SteelFeatureSpreadsheetBuilder@endlink .
        <br>

Created in NX9.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::ShipDesign::ProfileTransitionBuilder::Targets

(

)

Returns the collector containing the target bodies.

Created in NX9.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_ShipDesign_ProfileTransitionBuilder.hxx
