Represents a profile cutout feature for NX8. More...

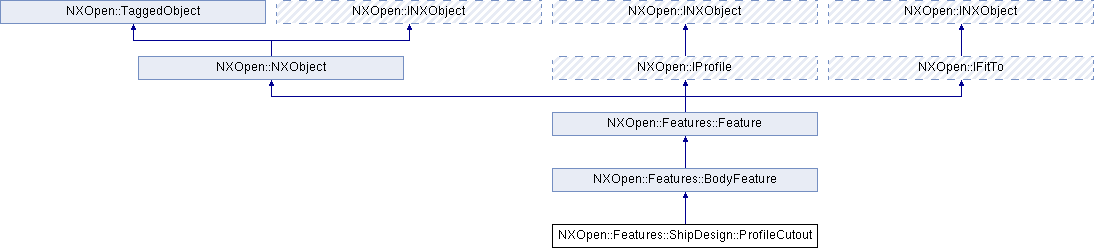

Inheritance diagram for NXOpen::Features::ShipDesign::ProfileCutout:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Features::Feature | |
| enum | BooleanType { BooleanTypeCreate, BooleanTypeUnite, BooleanTypeSubtract, BooleanTypeIntersect, BooleanTypeEmbossNormalSide = 8, BooleanTypeEmbossOppositeNormalSide } |
| Boolean operation type. More... | |
| enum | DiagnosticType { DiagnosticTypeInformation = 1, DiagnosticTypeWarning } |
| Diagnostic type. More... | |
| Public Member Functions inherited from NXOpen::Features::BodyFeature | |
| std::vector< NXOpen::Body * > | GetBodies () |
| Returns the bodies created by the feature. | |
| std::vector< NXOpen::Edge * > | GetEdges () |
| Returns the edges created by the feature. | |
| std::vector< NXOpen::Face * > | GetFaces () |
| Returns the faces created by the feature. | |
Detailed Description
Represents a profile cutout feature for NX8.
Since new NX8 stiffener has been implemented with spreadsheet driven technology,
the Profile Cutout feature requires improvement to take advantage of the spreadsheet driven capabilities and be compatible with
the Stiffener and other NX8 Ship Structure commands.
NX8 Profile Cutout feature will use spreadsheet block to replace the previous version (NX75) sketch expression modifier block <br> To create or edit an instance of this class, use @link Features::ShipDesign::ProfileCutoutBuilder Features::ShipDesign::ProfileCutoutBuilder @endlink <br>
Created in NX8.0.0.
The documentation for this class was generated from the following file:
- Features_ShipDesign_ProfileCutout.hxx
