Represents a new MarkingLine Feature builder. More...

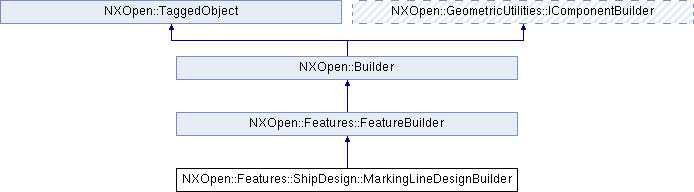

Inheritance diagram for NXOpen::Features::ShipDesign::MarkingLineDesignBuilder:

Public Member Functions
double	AngleTolerance ()
	Returns the angle tolerance for marking lines.

double	DistanceTolerance ()
	Returns the distance tolerance for marking lines.

void	GetMarkingLineInformation (NXOpen::ICurve curve, std::vector< NXOpen::Face > &placementFaces, std::vector< NXOpen::Face * > &targetFaces)
	Get the information from the marking line feature to create a fillet type welding joint.

NXOpen::SelectDisplayableObjectList *	GridPlanes ()
	Returns the collection of planes defining all the intersections on the profiles and plates.

bool	IsMarkingLineFeature (NXOpen::Features::Feature *frecTag)
	Is the feature a marking line feature.

void	SetAngleTolerance (double angleTolerance)
	Sets the angle tolerance for marking lines.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance for marking lines.

void	SetUseExistingCuttingSideFace (bool useExistingCuttingSideFace)
	Sets the option to decide if the current cutting side faces are used(true) or if the cutting side faces should be recalculated(false).

bool	UseExistingCuttingSideFace ()
	Returns the option to decide if the current cutting side faces are used(true) or if the cutting side faces should be recalculated(false).

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a new MarkingLine Feature builder.

   This class is used in the process of creating or editing a marking line feature.
    <br> To create a new instance of this class, use @link Features::ShipCollection::CreateMarkingLineDesignBuilder  Features::ShipCollection::CreateMarkingLineDesignBuilder @endlink  <br>

Created in NX8.0.0.

Member Function Documentation

double NXOpen::Features::ShipDesign::MarkingLineDesignBuilder::AngleTolerance ( )

Returns the angle tolerance for marking lines.

Created in NX8.0.0.

License requirements : None

double NXOpen::Features::ShipDesign::MarkingLineDesignBuilder::DistanceTolerance ( )

Returns the distance tolerance for marking lines.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::MarkingLineDesignBuilder::GetMarkingLineInformation	(	NXOpen::ICurve *	curve,
		std::vector< NXOpen::Face * > &	placementFaces,
		std::vector< NXOpen::Face * > &	targetFaces
	)

Get the information from the marking line feature to create a fillet type welding joint.

           Specifically the target and placement faces

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

curve	(I) - Marking line curve.
placementFaces	(OF) - a set of cutting side faces that place marking line
targetFaces	(OF) - a set of molding faces that generated the marking line

NXOpen::SelectDisplayableObjectList* NXOpen::Features::ShipDesign::MarkingLineDesignBuilder::GridPlanes ( )

Returns the collection of planes defining all the intersections on the profiles and plates.

Created in NX8.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::MarkingLineDesignBuilder::IsMarkingLineFeature ( NXOpen::Features::Feature * frecTag )

Is the feature a marking line feature.

Returns: (O) - is a marking line feature
Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

frecTag (I) - feature to check

void NXOpen::Features::ShipDesign::MarkingLineDesignBuilder::SetAngleTolerance ( double angleTolerance )

Sets the angle tolerance for marking lines.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

angleTolerance angletolerance

void NXOpen::Features::ShipDesign::MarkingLineDesignBuilder::SetDistanceTolerance ( double distanceTolerance )

Sets the distance tolerance for marking lines.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

distanceTolerance distancetolerance

void NXOpen::Features::ShipDesign::MarkingLineDesignBuilder::SetUseExistingCuttingSideFace ( bool useExistingCuttingSideFace )

Sets the option to decide if the current cutting side faces are used(true) or if the cutting side faces should be recalculated(false).

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_mfg_prep ("Ship Manufacturing")

Parameters

useExistingCuttingSideFace useexistingcuttingsideface

bool NXOpen::Features::ShipDesign::MarkingLineDesignBuilder::UseExistingCuttingSideFace ( )

Returns the option to decide if the current cutting side faces are used(true) or if the cutting side faces should be recalculated(false).

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_MarkingLineDesignBuilder.hxx
