This builder is used to adds attributes to the part and body identifying manufacturing related data. More...

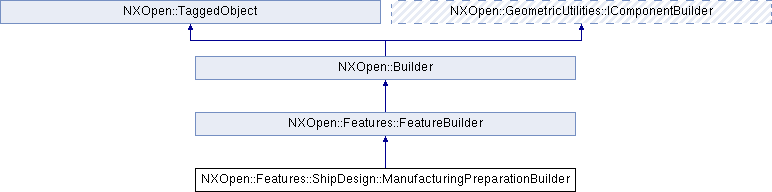

Inheritance diagram for NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder:

Public Types
enum	AttributeType { AttributeTypeSaName, AttributeTypeSaType, AttributeTypeSaSize, AttributeTypeSaMaterial, AttributeTypeSaForm, AttributeTypeSaDescription }
	Represents manufacturing attribute type. More...

Public Member Functions
NXString	FeatureName ()
	Returns the feature name Created in NX8.0.3.

NXString	GetDesignElementAttributeValue (NXOpen::DisplayableObject *designElement, NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::AttributeType attrType)
	Get the attribute value of the given design element.

void	InitializeDesignElementAttributes (NXOpen::DisplayableObject *designElement)
	Read the design attributes and use them to initialize the builder values.

NXString	SaProject ()
	Returns the project number assigned to the ship.

NXString	SectionNumber ()
	Returns the ship section number.

void	SetDesignElementAttributeValue (NXOpen::DisplayableObject *designElement, NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::AttributeType attrType, const NXString &attrValue)
	Set the attribute value of the given design element.

void	SetDesignElementAttributeValue (NXOpen::DisplayableObject designElement, NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::AttributeType attrType, const char attrValue)
	Set the attribute value of the given design element.

void	SetFeatureName (const NXString &featureName)
	Sets the feature name Created in NX8.0.3.

void	SetFeatureName (const char *featureName)
	Sets the feature name Created in NX8.0.3.

void	SetSaProject (const NXString &saProject)
	Sets the project number assigned to the ship.

void	SetSaProject (const char *saProject)
	Sets the project number assigned to the ship.

void	SetSectionNumber (const NXString &sectionNumber)
	Sets the ship section number.

void	SetSectionNumber (const char *sectionNumber)
	Sets the ship section number.

NXOpen::Assemblies::SelectComponentList *	SteelComponents ()
	Returns the design elements to prepare for manufacturing.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This builder is used to adds attributes to the part and body identifying manufacturing related data.

    <br> To create a new instance of this class, use @link Features::ShipCollection::CreateManufacturingPreparationBuilder  Features::ShipCollection::CreateManufacturingPreparationBuilder @endlink  <br>

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::AttributeType

Represents manufacturing attribute type.

Enumerator:

AttributeTypeSaName	name attribute
AttributeTypeSaType	type attribute
AttributeTypeSaSize	size attribute
AttributeTypeSaMaterial	material attribute
AttributeTypeSaForm	form attribute
AttributeTypeSaDescription	name attribute

Member Function Documentation

NXString NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::FeatureName ( )

Returns the feature name
Created in NX8.0.3.

License requirements : None

NXString NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::GetDesignElementAttributeValue	(	NXOpen::DisplayableObject *	designElement,
		NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::AttributeType	attrType
	)

Get the attribute value of the given design element.

Returns: the attribute value.
Created in NX8.0.0.

License requirements : None

Parameters

designElement	the design element for manufacturing preparation.
attrType	the attriubte type.

void NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::InitializeDesignElementAttributes ( NXOpen::DisplayableObject * designElement )

Read the design attributes and use them to initialize the builder values.

Created in NX8.0.0.

License requirements : None

Parameters

designElement the design element for manufacturing preparation.

NXString NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SaProject ( )

Returns the project number assigned to the ship.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SectionNumber ( )

Returns the ship section number.

Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SetDesignElementAttributeValue	(	NXOpen::DisplayableObject *	designElement,
		NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::AttributeType	attrType,
		const NXString &	attrValue
	)

Set the attribute value of the given design element.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

designElement	the design element for manufacturing preparation.
attrType	the attriubte type.
attrValue	the attribute value.

void NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SetDesignElementAttributeValue	(	NXOpen::DisplayableObject *	designElement,
		NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::AttributeType	attrType,
		const char *	attrValue
	)

Set the attribute value of the given design element.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

designElement	the design element for manufacturing preparation.
attrType	the attriubte type.
attrValue	the attribute value.

void NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SetFeatureName ( const NXString & featureName )

Sets the feature name
Created in NX8.0.3.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

featureName featurename

void NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SetFeatureName ( const char * featureName )

Sets the feature name
Created in NX8.0.3.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

featureName featurename

void NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SetSaProject ( const NXString & saProject )

Sets the project number assigned to the ship.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

saProject saproject

void NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SetSaProject ( const char * saProject )

Sets the project number assigned to the ship.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

saProject saproject

void NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SetSectionNumber ( const NXString & sectionNumber )

Sets the ship section number.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

sectionNumber sectionnumber

void NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SetSectionNumber ( const char * sectionNumber )

Sets the ship section number.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept")

Parameters

sectionNumber sectionnumber

NXOpen::Assemblies::SelectComponentList* NXOpen::Features::ShipDesign::ManufacturingPreparationBuilder::SteelComponents ( )

Returns the design elements to prepare for manufacturing.

Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_ManufacturingPreparationBuilder.hxx
