Represents a Generic Plate System feature. More...

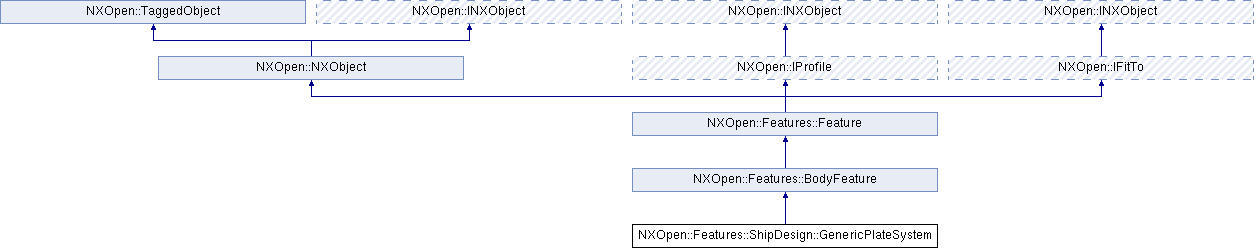

Inheritance diagram for NXOpen::Features::ShipDesign::GenericPlateSystem:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Features::Feature | |
| enum | BooleanType { BooleanTypeCreate, BooleanTypeUnite, BooleanTypeSubtract, BooleanTypeIntersect, BooleanTypeEmbossNormalSide = 8, BooleanTypeEmbossOppositeNormalSide } |
| Boolean operation type. More... | |
| enum | DiagnosticType { DiagnosticTypeInformation = 1, DiagnosticTypeWarning } |
| Diagnostic type. More... | |
| Public Member Functions inherited from NXOpen::Features::BodyFeature | |
| std::vector< NXOpen::Body * > | GetBodies () |
| Returns the bodies created by the feature. | |
| std::vector< NXOpen::Edge * > | GetEdges () |
| Returns the edges created by the feature. | |
| std::vector< NXOpen::Face * > | GetFaces () |
| Returns the faces created by the feature. | |
Detailed Description
Represents a Generic Plate System feature.
The Generic Plate System feature is used to represent surface shapes in the ship that do not conform to deck, bulkhead or hull categories.
To create or edit an instance of this class, use Features::ShipDesign::GenericPlateSystemBuilder
Created in NX8.0.0.
The documentation for this class was generated from the following file:
- Features_ShipDesign_GenericPlateSystem.hxx
