This class is used to add an attribute to profile features that have been modified by the user to display a 'Metal to Metal' design 'feature'. More...
Public Member Functions | |
| NXOpen::Features::SelectFeatureList * | FeatureToTag () |
| Returns the feature to tag. | |
| void | ManageFeatureTag (bool addMark, NXOpen::Features::Feature *featureToMark) |
| Manages (set or unset) the ship manufacturing object on selected features. | |

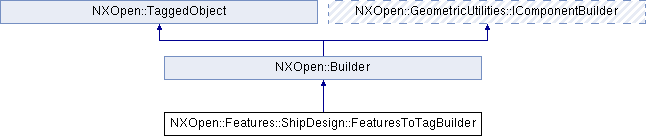

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
This class is used to add an attribute to profile features that have been modified by the user to display a 'Metal to Metal' design 'feature'.
This attribute will be used later when the user switches from Ship Design mode to Ship Manufacturing mode... the Metal to Metal modifications will be suppressed.
To create a new instance of this class, use Features::ShipCollection::CreateFeaturesToMarkBuilder
Created in NX8.0.0.
Member Function Documentation
| NXOpen::Features::SelectFeatureList* NXOpen::Features::ShipDesign::FeaturesToTagBuilder::FeatureToTag | ( | ) |
Returns the feature to tag.
Created in NX8.0.0.
License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")
| void NXOpen::Features::ShipDesign::FeaturesToTagBuilder::ManageFeatureTag | ( | bool | addMark, |
| NXOpen::Features::Feature * | featureToMark | ||
| ) |
Manages (set or unset) the ship manufacturing object on selected features.
Created in NX8.0.0.
License requirements : nx_ship_detail ("Ship Detail Design") OR nx_ship_mfg_prep ("Ship Manufacturing")
- Parameters
-
addMark addmark featureToMark featuretomark
The documentation for this class was generated from the following file:
- Features_ShipDesign_FeaturesToTagBuilder.hxx
