NXOpen::Features::ShipDesign::BulkHeadsBuilder Class Reference

   Represents a @link Features::ShipDesign::BulkHeads Features::ShipDesign::BulkHeads@endlink  builder
    <br> To create a new instance of this class, use @link Features::ShipCollection::CreateBulkHeadsBuilder  Features::ShipCollection::CreateBulkHeadsBuilder @endlink  <br>

Created in NX5.0.0. More...

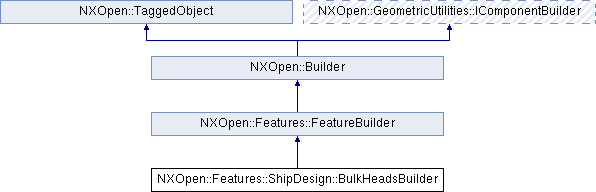

Inheritance diagram for NXOpen::Features::ShipDesign::BulkHeadsBuilder:

Public Types
enum	BulkheadType { BulkheadTypeTransverse, BulkheadTypeLongitudinal }
	Represents the bulkhead type. More...

Public Member Functions
NXString	AutoBulkHeadName ()
	Returns the bulkHead name.
bool	AutoNameToggle ()
	Returns the auto name toggle.
NXOpen::Features::ShipDesign::BulkHeadListItemBuilderList *	BulkHeadList ()
	Returns the bulkHead list.
NXOpen::Features::ShipDesign::BulkHeadListItemBuilder *	CreateBulkheadListItem (NXOpen::Features::ShipDesign::BulkHeadsBuilder::BulkheadType bulkheadsType)
	Create a list to generate a single bulkHead.
void	SetAutoBulkHeadName (const NXString &bulkHeadName)
	Sets the bulkHead name.
void	SetAutoBulkHeadName (const char *bulkHeadName)
	Sets the bulkHead name.
void	SetAutoNameToggle (bool autoNameToggle)
	Sets the auto name toggle.
void	SetType (NXOpen::Features::ShipDesign::BulkHeadsBuilder::BulkheadType type)
	Sets the bulkhead type.
NXOpen::Features::ShipDesign::BulkHeadsBuilder::BulkheadType	Type ()
	Returns the bulkhead type.
Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.
NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.
bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.
NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.
void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.
void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.
NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

   Represents a @link Features::ShipDesign::BulkHeads Features::ShipDesign::BulkHeads@endlink  builder
    <br> To create a new instance of this class, use @link Features::ShipCollection::CreateBulkHeadsBuilder  Features::ShipCollection::CreateBulkHeadsBuilder @endlink  <br>

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::BulkHeadsBuilder::BulkheadType

Represents the bulkhead type.

Enumerator:

BulkheadTypeTransverse	transverse
BulkheadTypeLongitudinal	longitudinal

Member Function Documentation

NXString NXOpen::Features::ShipDesign::BulkHeadsBuilder::AutoBulkHeadName

(

)

Returns the bulkHead name.

Created in NX5.0.0.

License requirements : None

bool NXOpen::Features::ShipDesign::BulkHeadsBuilder::AutoNameToggle

(

)

Returns the auto name toggle.

Created in NX5.0.0.

License requirements : None

NXOpen::Features::ShipDesign::BulkHeadListItemBuilderList* NXOpen::Features::ShipDesign::BulkHeadsBuilder::BulkHeadList

(

)

Returns the bulkHead list.

Created in NX5.0.0.

License requirements : None

NXOpen::Features::ShipDesign::BulkHeadListItemBuilder* NXOpen::Features::ShipDesign::BulkHeadsBuilder::CreateBulkheadListItem

(

NXOpen::Features::ShipDesign::BulkHeadsBuilder::BulkheadType

bulkheadsType

)

Create a list to generate a single bulkHead.

Returns

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

bulkheadsType

bulkheadstype

void NXOpen::Features::ShipDesign::BulkHeadsBuilder::SetAutoBulkHeadName

(

const NXString &

bulkHeadName

)

Sets the bulkHead name.

Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

bulkHeadName

bulkheadname

void NXOpen::Features::ShipDesign::BulkHeadsBuilder::SetAutoBulkHeadName

(

const char *

bulkHeadName

)

Sets the bulkHead name.

Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

bulkHeadName

bulkheadname

void NXOpen::Features::ShipDesign::BulkHeadsBuilder::SetAutoNameToggle

(

bool

autoNameToggle

)

Sets the auto name toggle.

Created in NX5.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

autoNameToggle

autonametoggle

void NXOpen::Features::ShipDesign::BulkHeadsBuilder::SetType

(

NXOpen::Features::ShipDesign::BulkHeadsBuilder::BulkheadType

type

)

Sets the bulkhead type.

Created in NX8.0.0.

License requirements : nx_ship_concept ("Ship Concept") OR nx_ship_basic ("Ship Basic Design") OR nx_ship_detail ("Ship Detail Design")

Parameters

type

type

NXOpen::Features::ShipDesign::BulkHeadsBuilder::BulkheadType NXOpen::Features::ShipDesign::BulkHeadsBuilder::Type

(

)

Returns the bulkhead type.

Created in NX8.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_ShipDesign_BulkHeadsBuilder.hxx
