Represents a Flat Pattern feature builder. More...

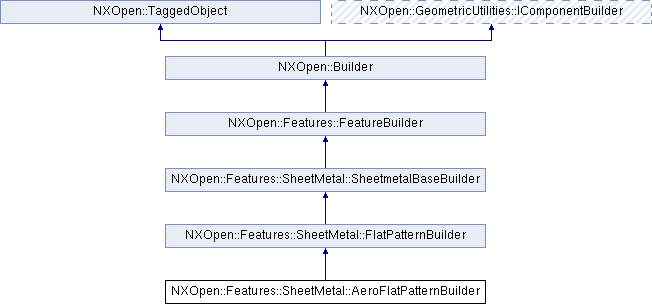

Inheritance diagram for NXOpen::Features::SheetMetal::AeroFlatPatternBuilder:
Additional Inherited Members | |
 Public Member Functions inherited from NXOpen::Features::SheetMetal::FlatPatternBuilder | |
| NXOpen::Section * | AddedGeometry () |
| Returns the added geometry selection Created in NX6.0.0. | |
| NXString | FlatPatternViewName () |
| Returns the flat pattern view name string Created in NX6.0.0. | |
| NXOpen::Features::SheetMetal::CornerTreatmentBuilder * | InnerCornerTreatment () |
| Returns the inner corner treatment corner object Created in NX6.0.0. | |
| NXOpen::Features::SheetMetal::CornerTreatmentBuilder * | OuterCornerTreatment () |
| Returns the outer corner treatment corner object Created in NX6.0.0. | |
| NXOpen::Point3d | ReferenceVertex () |
| Returns the end of the edge where the tangent will define the x axis for flat as solid. | |
| void | SetReferenceVertex (const NXOpen::Point3d &vertex) |
| Sets the end of the edge where the tangent will define the x axis for flat as solid. | |
| void | SetShowInteriorFeatureCurves (bool showInteriorFeatureCurves) |
| Sets the show interior feature curves toggle value Created in NX6.0.0. | |
| void | SetTransformToAbsoluteCsys (bool transformFlag) |
| Sets the flag which decides if the flattened solid will be transformed to Absolute CSYS. | |
| bool | ShowInteriorFeatureCurves () |
| Returns the show interior feature curves toggle value Created in NX6.0.0. | |
| bool | TransformToAbsoluteCsys () |
| Returns the flag which decides if the flattened solid will be transformed to Absolute CSYS. | |
| NXOpen::SelectFace * | UpwardFace () |
| Returns the upward face selection Created in NX6.0.0. | |
| NXOpen::SelectEdge * | XAxisEdge () |
| Returns the x axis edge selection. | |
Detailed Description
Represents a Flat Pattern feature builder.
To create a new instance of this class, use Features::SheetMetal::AeroSheetmetalManager::CreateFlatPatternBuilder
Created in NX6.0.0.
The documentation for this class was generated from the following file:
- Features_SheetMetal_AeroFlatPatternBuilder.hxx
