Represents an EmbeddedOperationBuilder
This is an abstract class, and cannot be instantiated. More...

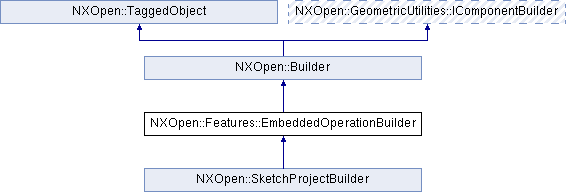

Inheritance diagram for NXOpen::Features::EmbeddedOperationBuilder:

Public Member Functions
NXOpen::Features::Feature *	CommitOperation ()
	Commits the operation and creates the feature.

NXOpen::Features::Feature *	GetOperation ()
	Returns the feature currently being edited by this builder.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents an EmbeddedOperationBuilder
This is an abstract class, and cannot be instantiated.

Created in NX5.0.0.

Member Function Documentation

NXOpen::Features::Feature* NXOpen::Features::EmbeddedOperationBuilder::CommitOperation ( )

Commits the operation and creates the feature.

Returns: Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

NXOpen::Features::Feature* NXOpen::Features::EmbeddedOperationBuilder::GetOperation ( )

Returns the feature currently being edited by this builder.

If a new feature is being created, and the builder has not yet been commited, returns NULL.

Returns: Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

The documentation for this class was generated from the following file:
