Represents a DxfdwgImporter to be used when importing the DXF/DWG Data This class is created using DexManager . More...

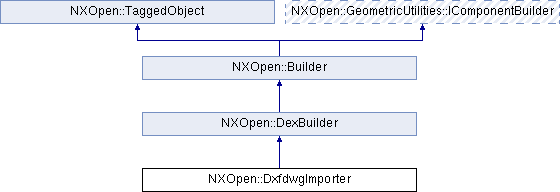

Inheritance diagram for NXOpen::DxfdwgImporter:

Public Types
enum	AspectRatioOptions { AspectRatioOptionsAutomaticCalculation, AspectRatioOptionsUseSameAsACADWidthFactor, AspectRatioOptionsUseValueSpecifiedInMappingFile, AspectRatioOptionsScaleACADWidthFactorWithSpecifiedValue }
	NX Aspect ratio calculation options. More...

enum	ConvLayoutsAs { ConvLayoutsAsAll, ConvLayoutsAsSelectedInPreview }
	Convert latouts option. More...

enum	ImportBlocksAs { ImportBlocksAsGroup, ImportBlocksAsCustomSymbol }
	Import Blocks as option option. More...

enum	ImportCurvesAs { ImportCurvesAsSketchCurves, ImportCurvesAsCurves }
	Import curves as option. More...

enum	ImportDimensionsAs { ImportDimensionsAsReal, ImportDimensionsAsGroup }
	Import Dimensions as option option. More...

enum	ImportPolylinesAs { ImportPolylinesAsSplines, ImportPolylinesAsArcLines }
	Import Polylines as option. More...

enum	ImportToEnum { ImportToEnumWork, ImportToEnumNew }
	Import To option. More...

enum	ProcessingOrderAs { ProcessingOrderAsAlphabetical, ProcessingOrderAsObjectCount }
	Processing Oder of non numeric layers. More...

enum	SendLayoutsAs { SendLayoutsAsImportedView, SendLayoutsAsDrawingView }
	Send Layouts data to option. More...

enum	SendModelDataAs { SendModelDataAsModeling, SendModelDataAsDrawingView, SendModelDataAsDrawingSheet }
	Send Model data to option. More...

enum	UnitsEnum { UnitsEnumSameAsTemplate, UnitsEnumMetric, UnitsEnumEnglish }
	Import To option. More...

Public Member Functions
NXString	AcadLayoutsToImport ()
	Returns the AcadLayoutsToImport command - generates a list of ACAD layouts Created in NX8.0.0.

NXOpen::DxfdwgImporter::AspectRatioOptions	AspectRatioOption ()
	Returns the autocad aspect ratio calculation method - this will decide the NX Aspect ratio method to be used.

bool	AvoidUsedNXLayers ()
	Returns the AvoidUsedNXLayers command - if set to true, the destination part layers will not be used Created in NX8.0.0.

bool	ConvLayoutData ()
	Returns the Import Layout data command - if set to true then Layout data will be imported Created in NX8.0.0.

NXOpen::DxfdwgImporter::ConvLayoutsAs	ConvLayouts ()
	Returns the ConvLayouts command - this will determine if all or selected layouts are translated Created in NX8.0.0.

bool	ConvModelData ()
	Returns the Import model data command - if set to true then Model data will be imported Created in NX8.0.0.

NXString	CrossHatchMappingFile ()
	Returns the CrossHatchMappingFile command - definition file for cross hatch mapping Created in NX8.0.0.

int	DestForUnselectedLayer ()
	Returns the DestForUnselectedLayer command - number of destination layer Created in NX8.0.0.

bool	FileOpenFlag ()
	Returns the FileOpenFlag command - should be set to false if doing file import Created in NX6.0.0.

NXOpen::DxfdwgImporter::ImportBlocksAs	ImportBlockType ()
	Returns the ImportBlockType command - import ACAD Blocks as a group or as a custom symbol Created in NX8.0.0.

NXOpen::DxfdwgImporter::ImportCurvesAs	ImportCurvesType ()
	Returns the ImportCurvesType command - When model data is imported on drawing sheet, this can be set in order to sketch a curve or many curves Created in NX8.0.0.

NXOpen::DxfdwgImporter::ImportDimensionsAs	ImportDimensionType ()
	Returns the ImportDimensionType command - import ACAD dimensions as real dimensions or as group data Created in NX8.0.0.

NXOpen::DxfdwgImporter::ImportPolylinesAs	ImportPolylineTo ()
	Returns the ImportPolylineTo command - this will determine if polylines will be imported as splines or as lines/arcs.

NXOpen::DxfdwgImporter::ImportToEnum	ImportTo ()
	Returns the ImportTo command - this option will determine the destination for imported autocad file.

bool	ImportToTeamcenter ()
	Returns the ImportToTeamcenter command - if set to true then assembly will be imported into Teamcenter Created in NX7.0.0.

NXString	InputFile ()
	Returns the InputFile command - name of a file which is being imported Created in NX6.0.0.

NXString	LineFontMappingFile ()
	Returns the LineFontMappingFile command - definition file for line font mapping Created in NX8.0.0.

NXString	OutputFile ()
	Returns the OutputFile command - if autocad file is imported to the new part then this name will be used to write the output.

NXOpen::DxfdwgImporter::ProcessingOrderAs	ProcessingOrder ()
	Returns the ProcessingOrder command - this option will decide processing order of AutoCAD layers Created in NX8.0.0.

bool	ReadLayerNumFromPrefix ()
	Returns the ReadLayerNumFromPrefix command - if set to true, layer numbers will be read from prefix Created in NX8.0.0.

void	SaveSettings (const NXString &filename)
	Saves the save settings - this will save the settings to a file specified Created in NX6.0.0.

void	SaveSettings (const char *filename)
	Saves the save settings - this will save the settings to a file specified Created in NX6.0.0.

NXOpen::DxfdwgImporter::SendLayoutsAs	SendLayoutsTo ()
	Returns the SendLayoutsTo command - this will determine the destination for the layout data.

NXOpen::DxfdwgImporter::SendModelDataAs	SendModelDataTo ()
	Returns the SendModelDataTo command - this will determine the destination for model data Created in NX8.0.0.

void	SetAcadLayoutsToImport (const NXString &layoutNames)
	Sets the AcadLayoutsToImport command - generates a list of ACAD layouts Created in NX8.0.0.

void	SetAcadLayoutsToImport (const char *layoutNames)
	Sets the AcadLayoutsToImport command - generates a list of ACAD layouts Created in NX8.0.0.

void	SetAspectRatioOption (NXOpen::DxfdwgImporter::AspectRatioOptions widthFactorMode)
	Sets the autocad aspect ratio calculation method - this will decide the NX Aspect ratio method to be used.

void	SetAvoidUsedNXLayers (bool avoidUsedNXLayers)
	Sets the AvoidUsedNXLayers command - if set to true, the destination part layers will not be used Created in NX8.0.0.

void	SetConvLayoutData (bool convLayoutData)
	Sets the Import Layout data command - if set to true then Layout data will be imported Created in NX8.0.0.

void	SetConvLayouts (NXOpen::DxfdwgImporter::ConvLayoutsAs convLayoutsAs)
	Sets the ConvLayouts command - this will determine if all or selected layouts are translated Created in NX8.0.0.

void	SetConvModelData (bool convModelData)
	Sets the Import model data command - if set to true then Model data will be imported Created in NX8.0.0.

void	SetCrossHatchMappingFile (const NXString &filename)
	Sets the CrossHatchMappingFile command - definition file for cross hatch mapping Created in NX8.0.0.

void	SetCrossHatchMappingFile (const char *filename)
	Sets the CrossHatchMappingFile command - definition file for cross hatch mapping Created in NX8.0.0.

void	SetDestForUnselectedLayer (int destForUnselectedLayer)
	Sets the DestForUnselectedLayer command - number of destination layer Created in NX8.0.0.

void	SetFileOpenFlag (bool doingFileOpen)
	Sets the FileOpenFlag command - should be set to false if doing file import Created in NX6.0.0.

void	SetImportBlockType (NXOpen::DxfdwgImporter::ImportBlocksAs importBlockType)
	Sets the ImportBlockType command - import ACAD Blocks as a group or as a custom symbol Created in NX8.0.0.

void	SetImportCurvesType (NXOpen::DxfdwgImporter::ImportCurvesAs importCurvesType)
	Sets the ImportCurvesType command - When model data is imported on drawing sheet, this can be set in order to sketch a curve or many curves Created in NX8.0.0.

void	SetImportDimensionType (NXOpen::DxfdwgImporter::ImportDimensionsAs importDimensionType)
	Sets the ImportDimensionType command - import ACAD dimensions as real dimensions or as group data Created in NX8.0.0.

void	SetImportPolylineTo (NXOpen::DxfdwgImporter::ImportPolylinesAs importPolylineTo)
	Sets the ImportPolylineTo command - this will determine if polylines will be imported as splines or as lines/arcs.

void	SetImportTo (NXOpen::DxfdwgImporter::ImportToEnum importTo)
	Sets the ImportTo command - this option will determine the destination for imported autocad file.

void	SetImportToTeamcenter (bool importToTeamcenter)
	Sets the ImportToTeamcenter command - if set to true then assembly will be imported into Teamcenter Created in NX7.0.0.

void	SetInputFile (const NXString &filename)
	Sets the InputFile command - name of a file which is being imported Created in NX6.0.0.

void	SetInputFile (const char *filename)
	Sets the InputFile command - name of a file which is being imported Created in NX6.0.0.

void	SetLineFontMappingFile (const NXString &filename)
	Sets the LineFontMappingFile command - definition file for line font mapping Created in NX8.0.0.

void	SetLineFontMappingFile (const char *filename)
	Sets the LineFontMappingFile command - definition file for line font mapping Created in NX8.0.0.

void	SetOutputFile (const NXString &filename)
	Sets the OutputFile command - if autocad file is imported to the new part then this name will be used to write the output.

void	SetOutputFile (const char *filename)
	Sets the OutputFile command - if autocad file is imported to the new part then this name will be used to write the output.

void	SetProcessingOrder (NXOpen::DxfdwgImporter::ProcessingOrderAs processingOrder)
	Sets the ProcessingOrder command - this option will decide processing order of AutoCAD layers Created in NX8.0.0.

void	SetReadLayerNumFromPrefix (bool readLayerNumFromPrefix)
	Sets the ReadLayerNumFromPrefix command - if set to true, layer numbers will be read from prefix Created in NX8.0.0.

void	SetSendLayoutsTo (NXOpen::DxfdwgImporter::SendLayoutsAs sendLayoutsTo)
	Sets the SendLayoutsTo command - this will determine the destination for the layout data.

void	SetSendModelDataTo (NXOpen::DxfdwgImporter::SendModelDataAs sendModelDataTo)
	Sets the SendModelDataTo command - this will determine the destination for model data Created in NX8.0.0.

void	SetSettingsFile (const NXString &filename)
	Sets the SettingsFile command - definition file for default options Created in NX6.0.0.

void	SetSettingsFile (const char *filename)
	Sets the SettingsFile command - definition file for default options Created in NX6.0.0.

void	SetSkipEmptyLayer (bool skipEmptyLayer)
	Sets the SkipEmptyLayer command - if set to true, unreferenced AutoCAD layers will not be transalated Created in NX8.0.0.

void	SetTemplateFile (const NXString &filename)
	Sets the TemplateFile command - This will be used as template for dxf/dwg import Created in NX8.0.0.

void	SetTemplateFile (const char *filename)
	Sets the TemplateFile command - This will be used as template for dxf/dwg import Created in NX8.0.0.

void	SetTextFontMappingFile (const NXString &filename)
	Sets the TextFontMappingFile command - definition file for text font mapping Created in NX8.0.0.

void	SetTextFontMappingFile (const char *filename)
	Sets the TextFontMappingFile command - definition file for text font mapping Created in NX8.0.0.

NXString	SettingsFile ()
	Returns the SettingsFile command - definition file for default options Created in NX6.0.0.

void	SetTranslateUnselectedLayer (bool translateUnselectedLayer)
	Sets the TranslateUnselectedLayer command - if set to true, unselected layers will be translated Created in NX8.0.0.

void	SetUnits (NXOpen::DxfdwgImporter::UnitsEnum units)
	Sets the Units command - this option will determine the destination part units.

void	SetUnSelectedLayers (const NXString &unselectedLayers)
	Sets the UnSelectedLayers command - sets the list of unselected layers Created in NX8.0.0.

void	SetUnSelectedLayers (const char *unselectedLayers)
	Sets the UnSelectedLayers command - sets the list of unselected layers Created in NX8.0.0.

bool	SkipEmptyLayer ()
	Returns the SkipEmptyLayer command - if set to true, unreferenced AutoCAD layers will not be transalated Created in NX8.0.0.

NXString	TemplateFile ()
	Returns the TemplateFile command - This will be used as template for dxf/dwg import Created in NX8.0.0.

NXString	TextFontMappingFile ()
	Returns the TextFontMappingFile command - definition file for text font mapping Created in NX8.0.0.

bool	TranslateUnselectedLayer ()
	Returns the TranslateUnselectedLayer command - if set to true, unselected layers will be translated Created in NX8.0.0.

NXOpen::DxfdwgImporter::UnitsEnum	Units ()
	Returns the Units command - this option will determine the destination part units.

NXString	UnSelectedLayers ()
	Returns the UnSelectedLayers command - sets the list of unselected layers Created in NX8.0.0.

Public Member Functions inherited from NXOpen::DexBuilder
bool	ProcessHoldFlag ()
	Returns the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.

void	SetProcessHoldFlag (bool doingFileSave)
	Sets the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a DxfdwgImporter to be used when importing the DXF/DWG Data This class is created using DexManager .

NULL object will be returned from Commit()  <br> To create a new instance of this class, use @link DexManager::CreateDxfdwgImporter  DexManager::CreateDxfdwgImporter @endlink  <br>

Default values.

Property

Value

ImportPolylineTo

Splines

ImportTo

New

ImportToTeamcenter

0

ProcessHoldFlag

0

ProcessingOrder

Alphabetical

Units

SameAsTemplate

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::DxfdwgImporter::AspectRatioOptions

NX Aspect ratio calculation options.

Enumerator:

AspectRatioOptionsAutomaticCalculation	automatic calculation
AspectRatioOptionsUseSameAsACADWidthFactor	use same as acadwidth factor
AspectRatioOptionsUseValueSpecifiedInMappingFile	use value specified in mapping file
AspectRatioOptionsScaleACADWidthFactorWithSpecifiedValue	scale acadwidth factor with specified value

enum NXOpen::DxfdwgImporter::ConvLayoutsAs

Convert latouts option.

Enumerator:

ConvLayoutsAsAll	Convert all layouts.
ConvLayoutsAsSelectedInPreview	Convert selected layouts.

enum NXOpen::DxfdwgImporter::ImportBlocksAs

Import Blocks as option option.

Enumerator:

ImportBlocksAsGroup	Convert blocks as group dimensions.
ImportBlocksAsCustomSymbol	Convert blocks as custom symbol dimensions.

enum NXOpen::DxfdwgImporter::ImportCurvesAs

Import curves as option.

Enumerator:

ImportCurvesAsSketchCurves	Convert curves as sketch curves.
ImportCurvesAsCurves	Convert curves as curves.

enum NXOpen::DxfdwgImporter::ImportDimensionsAs

Import Dimensions as option option.

Enumerator:

ImportDimensionsAsReal	Convert dimensions as real dimensions.
ImportDimensionsAsGroup	Convert dimensions as group.

enum NXOpen::DxfdwgImporter::ImportPolylinesAs

Import Polylines as option.

Enumerator:

ImportPolylinesAsSplines	import polylines as splines
ImportPolylinesAsArcLines	import polylines as arc/lines

enum NXOpen::DxfdwgImporter::ImportToEnum

Import To option.

Enumerator:

ImportToEnumWork	import dxf/dwg file to work part
ImportToEnumNew	import dxf/dwg file to new part

enum NXOpen::DxfdwgImporter::ProcessingOrderAs

Processing Oder of non numeric layers.

Enumerator:

ProcessingOrderAsAlphabetical	Alphabetical.
ProcessingOrderAsObjectCount	ObjectCount.

enum NXOpen::DxfdwgImporter::SendLayoutsAs

Send Layouts data to option.

Enumerator:

SendLayoutsAsImportedView	send Layout data to imported view
SendLayoutsAsDrawingView	send Layout data to drawing view

enum NXOpen::DxfdwgImporter::SendModelDataAs

Send Model data to option.

Enumerator:

SendModelDataAsModeling	send model data to modeling
SendModelDataAsDrawingView	send model data to drawing view
SendModelDataAsDrawingSheet	send model data to drawing sheet

enum NXOpen::DxfdwgImporter::UnitsEnum

Import To option.

Enumerator:

UnitsEnumSameAsTemplate	units same as template
UnitsEnumMetric	units millimeters
UnitsEnumEnglish	units inches

Member Function Documentation

NXString NXOpen::DxfdwgImporter::AcadLayoutsToImport ( )

Returns the AcadLayoutsToImport command - generates a list of ACAD layouts
Created in NX8.0.0.

License requirements : None

NXOpen::DxfdwgImporter::AspectRatioOptions NXOpen::DxfdwgImporter::AspectRatioOption ( )

Returns the autocad aspect ratio calculation method - this will decide the NX Aspect ratio method to be used.

Created in NX8.5.0.

License requirements : None

bool NXOpen::DxfdwgImporter::AvoidUsedNXLayers ( )

Returns the AvoidUsedNXLayers command - if set to true, the destination part layers will not be used
Created in NX8.0.0.

License requirements : None

bool NXOpen::DxfdwgImporter::ConvLayoutData ( )

Returns the Import Layout data command - if set to true then Layout data will be imported
Created in NX8.0.0.

License requirements : None

NXOpen::DxfdwgImporter::ConvLayoutsAs NXOpen::DxfdwgImporter::ConvLayouts ( )

Returns the ConvLayouts command - this will determine if all or selected layouts are translated
Created in NX8.0.0.

License requirements : None

bool NXOpen::DxfdwgImporter::ConvModelData ( )

Returns the Import model data command - if set to true then Model data will be imported
Created in NX8.0.0.

License requirements : None

NXString NXOpen::DxfdwgImporter::CrossHatchMappingFile ( )

Returns the CrossHatchMappingFile command - definition file for cross hatch mapping
Created in NX8.0.0.

License requirements : None

int NXOpen::DxfdwgImporter::DestForUnselectedLayer ( )

Returns the DestForUnselectedLayer command - number of destination layer
Created in NX8.0.0.

License requirements : None

bool NXOpen::DxfdwgImporter::FileOpenFlag ( )

Returns the FileOpenFlag command - should be set to false if doing file import
Created in NX6.0.0.

License requirements : None

NXOpen::DxfdwgImporter::ImportBlocksAs NXOpen::DxfdwgImporter::ImportBlockType ( )

Returns the ImportBlockType command - import ACAD Blocks as a group or as a custom symbol
Created in NX8.0.0.

License requirements : None

NXOpen::DxfdwgImporter::ImportCurvesAs NXOpen::DxfdwgImporter::ImportCurvesType ( )

Returns the ImportCurvesType command - When model data is imported on drawing sheet, this can be set in order to sketch a curve or many curves
Created in NX8.0.0.

License requirements : None

NXOpen::DxfdwgImporter::ImportDimensionsAs NXOpen::DxfdwgImporter::ImportDimensionType ( )

Returns the ImportDimensionType command - import ACAD dimensions as real dimensions or as group data
Created in NX8.0.0.

License requirements : None

NXOpen::DxfdwgImporter::ImportPolylinesAs NXOpen::DxfdwgImporter::ImportPolylineTo ( )

Returns the ImportPolylineTo command - this will determine if polylines will be imported as splines or as lines/arcs.

Created in NX6.0.0.

License requirements : None

NXOpen::DxfdwgImporter::ImportToEnum NXOpen::DxfdwgImporter::ImportTo ( )

Returns the ImportTo command - this option will determine the destination for imported autocad file.

it can either be new (english/metric) or work part.
Created in NX6.0.0.

License requirements : None

bool NXOpen::DxfdwgImporter::ImportToTeamcenter ( )

Returns the ImportToTeamcenter command - if set to true then assembly will be imported into Teamcenter
Created in NX7.0.0.

License requirements : None

NXString NXOpen::DxfdwgImporter::InputFile ( )

Returns the InputFile command - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

NXString NXOpen::DxfdwgImporter::LineFontMappingFile ( )

Returns the LineFontMappingFile command - definition file for line font mapping
Created in NX8.0.0.

License requirements : None

NXString NXOpen::DxfdwgImporter::OutputFile ( )

Returns the OutputFile command - if autocad file is imported to the new part then this name will be used to write the output.

Created in NX6.0.0.

License requirements : None

NXOpen::DxfdwgImporter::ProcessingOrderAs NXOpen::DxfdwgImporter::ProcessingOrder ( )

Returns the ProcessingOrder command - this option will decide processing order of AutoCAD layers
Created in NX8.0.0.

License requirements : None

bool NXOpen::DxfdwgImporter::ReadLayerNumFromPrefix ( )

Returns the ReadLayerNumFromPrefix command - if set to true, layer numbers will be read from prefix
Created in NX8.0.0.

License requirements : None

void NXOpen::DxfdwgImporter::SaveSettings ( const NXString & filename )

Saves the save settings - this will save the settings to a file specified
Created in NX6.0.0.

License requirements : None

Parameters

filename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::DxfdwgImporter::SaveSettings ( const char * filename )

Saves the save settings - this will save the settings to a file specified
Created in NX6.0.0.

License requirements : None

Parameters

filename NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::DxfdwgImporter::SendLayoutsAs NXOpen::DxfdwgImporter::SendLayoutsTo ( )

Returns the SendLayoutsTo command - this will determine the destination for the layout data.

Created in NX8.0.0.

License requirements : None

NXOpen::DxfdwgImporter::SendModelDataAs NXOpen::DxfdwgImporter::SendModelDataTo ( )

Returns the SendModelDataTo command - this will determine the destination for model data
Created in NX8.0.0.

License requirements : None

void NXOpen::DxfdwgImporter::SetAcadLayoutsToImport ( const NXString & layoutNames )

Sets the AcadLayoutsToImport command - generates a list of ACAD layouts
Created in NX8.0.0.

License requirements : None

Parameters

layoutNames layoutnames

void NXOpen::DxfdwgImporter::SetAcadLayoutsToImport ( const char * layoutNames )

Sets the AcadLayoutsToImport command - generates a list of ACAD layouts
Created in NX8.0.0.

License requirements : None

Parameters

layoutNames layoutnames

void NXOpen::DxfdwgImporter::SetAspectRatioOption ( NXOpen::DxfdwgImporter::AspectRatioOptions widthFactorMode )

Sets the autocad aspect ratio calculation method - this will decide the NX Aspect ratio method to be used.

Created in NX8.5.0.

License requirements : None

Parameters

widthFactorMode widthfactormode

void NXOpen::DxfdwgImporter::SetAvoidUsedNXLayers ( bool avoidUsedNXLayers )

Sets the AvoidUsedNXLayers command - if set to true, the destination part layers will not be used
Created in NX8.0.0.

License requirements : None

Parameters

avoidUsedNXLayers avoidusednxlayers

void NXOpen::DxfdwgImporter::SetConvLayoutData ( bool convLayoutData )

Sets the Import Layout data command - if set to true then Layout data will be imported
Created in NX8.0.0.

License requirements : None

Parameters

convLayoutData convlayoutdata

void NXOpen::DxfdwgImporter::SetConvLayouts ( NXOpen::DxfdwgImporter::ConvLayoutsAs convLayoutsAs )

Sets the ConvLayouts command - this will determine if all or selected layouts are translated
Created in NX8.0.0.

License requirements : None

Parameters

convLayoutsAs convlayoutsas

void NXOpen::DxfdwgImporter::SetConvModelData ( bool convModelData )

Sets the Import model data command - if set to true then Model data will be imported
Created in NX8.0.0.

License requirements : None

Parameters

convModelData convmodeldata

void NXOpen::DxfdwgImporter::SetCrossHatchMappingFile ( const NXString & filename )

Sets the CrossHatchMappingFile command - definition file for cross hatch mapping
Created in NX8.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetCrossHatchMappingFile ( const char * filename )

Sets the CrossHatchMappingFile command - definition file for cross hatch mapping
Created in NX8.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetDestForUnselectedLayer ( int destForUnselectedLayer )

Sets the DestForUnselectedLayer command - number of destination layer
Created in NX8.0.0.

License requirements : None

Parameters

destForUnselectedLayer destforunselectedlayer

void NXOpen::DxfdwgImporter::SetFileOpenFlag ( bool doingFileOpen )

Sets the FileOpenFlag command - should be set to false if doing file import
Created in NX6.0.0.

License requirements : None

Parameters

doingFileOpen doingfileopen

void NXOpen::DxfdwgImporter::SetImportBlockType ( NXOpen::DxfdwgImporter::ImportBlocksAs importBlockType )

Sets the ImportBlockType command - import ACAD Blocks as a group or as a custom symbol
Created in NX8.0.0.

License requirements : None

Parameters

importBlockType importblocktype

void NXOpen::DxfdwgImporter::SetImportCurvesType ( NXOpen::DxfdwgImporter::ImportCurvesAs importCurvesType )

Sets the ImportCurvesType command - When model data is imported on drawing sheet, this can be set in order to sketch a curve or many curves
Created in NX8.0.0.

License requirements : None

Parameters

importCurvesType importcurvestype

void NXOpen::DxfdwgImporter::SetImportDimensionType ( NXOpen::DxfdwgImporter::ImportDimensionsAs importDimensionType )

Sets the ImportDimensionType command - import ACAD dimensions as real dimensions or as group data
Created in NX8.0.0.

License requirements : None

Parameters

importDimensionType importdimensiontype

void NXOpen::DxfdwgImporter::SetImportPolylineTo ( NXOpen::DxfdwgImporter::ImportPolylinesAs importPolylineTo )

Sets the ImportPolylineTo command - this will determine if polylines will be imported as splines or as lines/arcs.

Created in NX6.0.0.

License requirements : None

Parameters

importPolylineTo importpolylineto

void NXOpen::DxfdwgImporter::SetImportTo ( NXOpen::DxfdwgImporter::ImportToEnum importTo )

Sets the ImportTo command - this option will determine the destination for imported autocad file.

it can either be new (english/metric) or work part.
Created in NX6.0.0.

License requirements : None

Parameters

importTo importto

void NXOpen::DxfdwgImporter::SetImportToTeamcenter ( bool importToTeamcenter )

Sets the ImportToTeamcenter command - if set to true then assembly will be imported into Teamcenter
Created in NX7.0.0.

License requirements : None

Parameters

importToTeamcenter importtoteamcenter

void NXOpen::DxfdwgImporter::SetInputFile ( const NXString & filename )

Sets the InputFile command - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetInputFile ( const char * filename )

Sets the InputFile command - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetLineFontMappingFile ( const NXString & filename )

Sets the LineFontMappingFile command - definition file for line font mapping
Created in NX8.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetLineFontMappingFile ( const char * filename )

Sets the LineFontMappingFile command - definition file for line font mapping
Created in NX8.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetOutputFile ( const NXString & filename )

Sets the OutputFile command - if autocad file is imported to the new part then this name will be used to write the output.

Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetOutputFile ( const char * filename )

Sets the OutputFile command - if autocad file is imported to the new part then this name will be used to write the output.

Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetProcessingOrder ( NXOpen::DxfdwgImporter::ProcessingOrderAs processingOrder )

Sets the ProcessingOrder command - this option will decide processing order of AutoCAD layers
Created in NX8.0.0.

License requirements : None

Parameters

processingOrder processingorder

void NXOpen::DxfdwgImporter::SetReadLayerNumFromPrefix ( bool readLayerNumFromPrefix )

Sets the ReadLayerNumFromPrefix command - if set to true, layer numbers will be read from prefix
Created in NX8.0.0.

License requirements : None

Parameters

readLayerNumFromPrefix readlayernumfromprefix

void NXOpen::DxfdwgImporter::SetSendLayoutsTo ( NXOpen::DxfdwgImporter::SendLayoutsAs sendLayoutsTo )

Sets the SendLayoutsTo command - this will determine the destination for the layout data.

Created in NX8.0.0.

License requirements : None

Parameters

sendLayoutsTo sendlayoutsto

void NXOpen::DxfdwgImporter::SetSendModelDataTo ( NXOpen::DxfdwgImporter::SendModelDataAs sendModelDataTo )

Sets the SendModelDataTo command - this will determine the destination for model data
Created in NX8.0.0.

License requirements : None

Parameters

sendModelDataTo sendmodeldatato

void NXOpen::DxfdwgImporter::SetSettingsFile ( const NXString & filename )

Sets the SettingsFile command - definition file for default options
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetSettingsFile ( const char * filename )

Sets the SettingsFile command - definition file for default options
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetSkipEmptyLayer ( bool skipEmptyLayer )

Sets the SkipEmptyLayer command - if set to true, unreferenced AutoCAD layers will not be transalated
Created in NX8.0.0.

License requirements : None

Parameters

skipEmptyLayer skipemptylayer

void NXOpen::DxfdwgImporter::SetTemplateFile ( const NXString & filename )

Sets the TemplateFile command - This will be used as template for dxf/dwg import
Created in NX8.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetTemplateFile ( const char * filename )

Sets the TemplateFile command - This will be used as template for dxf/dwg import
Created in NX8.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetTextFontMappingFile ( const NXString & filename )

Sets the TextFontMappingFile command - definition file for text font mapping
Created in NX8.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::DxfdwgImporter::SetTextFontMappingFile ( const char * filename )

Sets the TextFontMappingFile command - definition file for text font mapping
Created in NX8.0.0.

License requirements : None

Parameters

filename filename

NXString NXOpen::DxfdwgImporter::SettingsFile ( )

Returns the SettingsFile command - definition file for default options
Created in NX6.0.0.

License requirements : None

void NXOpen::DxfdwgImporter::SetTranslateUnselectedLayer ( bool translateUnselectedLayer )

Sets the TranslateUnselectedLayer command - if set to true, unselected layers will be translated
Created in NX8.0.0.

License requirements : None

Parameters

translateUnselectedLayer translateunselectedlayer

void NXOpen::DxfdwgImporter::SetUnits ( NXOpen::DxfdwgImporter::UnitsEnum units )

Sets the Units command - this option will determine the destination part units.

Created in NX8.0.0.

License requirements : None

Parameters

units units

void NXOpen::DxfdwgImporter::SetUnSelectedLayers ( const NXString & unselectedLayers )

Sets the UnSelectedLayers command - sets the list of unselected layers
Created in NX8.0.0.

License requirements : None

Parameters

unselectedLayers unselectedlayers

void NXOpen::DxfdwgImporter::SetUnSelectedLayers ( const char * unselectedLayers )

Sets the UnSelectedLayers command - sets the list of unselected layers
Created in NX8.0.0.

License requirements : None

Parameters

unselectedLayers unselectedlayers

bool NXOpen::DxfdwgImporter::SkipEmptyLayer ( )

Returns the SkipEmptyLayer command - if set to true, unreferenced AutoCAD layers will not be transalated
Created in NX8.0.0.

License requirements : None

NXString NXOpen::DxfdwgImporter::TemplateFile ( )

Returns the TemplateFile command - This will be used as template for dxf/dwg import
Created in NX8.0.0.

License requirements : None

NXString NXOpen::DxfdwgImporter::TextFontMappingFile ( )

Returns the TextFontMappingFile command - definition file for text font mapping
Created in NX8.0.0.

License requirements : None

bool NXOpen::DxfdwgImporter::TranslateUnselectedLayer ( )

Returns the TranslateUnselectedLayer command - if set to true, unselected layers will be translated
Created in NX8.0.0.

License requirements : None

NXOpen::DxfdwgImporter::UnitsEnum NXOpen::DxfdwgImporter::Units ( )

Returns the Units command - this option will determine the destination part units.

Created in NX8.0.0.

License requirements : None

NXString NXOpen::DxfdwgImporter::UnSelectedLayers ( )

Returns the UnSelectedLayers command - sets the list of unselected layers
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

DxfdwgImporter.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
