NXOpen::Drawings::ViewingDirectionArrow Class Reference

This class represents a Drafting Viewing Direction Arrow. More...

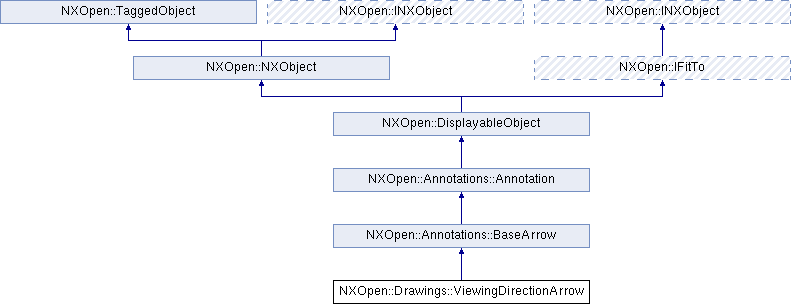

Inheritance diagram for NXOpen::Drawings::ViewingDirectionArrow:

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...
Public Member Functions inherited from NXOpen::Annotations::Annotation
NXOpen::Point3d	AnnotationOrigin ()
	Returns the origin (location) of the annotation.
NXOpen::Xform *	AnnotationPlane ()
	Returns the annotation plane.
NXOpen::Annotations::Annotation::AssociativeOriginData	GetAssociativeOrigin (NXOpen::Point3d *origin)
	Gets data that specifies the origin's associativity.
NXOpen::Annotations::Associativity *	GetAssociativity (int associativityIndex)
	Returns the associativity at specified index.
NXOpen::Xform *	GetInferredAnnotationPlane (NXOpen::Annotations::PmiDefaultPlane jaDefaultPlane)
	Returns the inferred annotation plane.
NXOpen::Annotations::LetteringPreferences *	GetLetteringPreferences ()
	Returns the lettering preferences for the annotation.
NXOpen::Annotations::LineAndArrowPreferences *	GetLineAndArrowPreferences ()
	Returns the line and arrow preferences for the annotation.
NXOpen::Annotations::SymbolPreferences *	GetSymbolPreferences ()
	Returns the symbol preferences for the annotation.
std::vector< NXOpen::View * >	GetViews ()
	Returns the views that the PMI display instance object is displayed in NOTE: This method is only valid for PMI display instance objects.
bool	HasAssociativeOrigin ()
	Returns a flag indicating whether the origin is associative Created in NX3.0.0.
void	InsertIntoStack (NXOpen::Annotations::Annotation *stack, NXOpen::Annotations::StackAlignmentPosition position)
	Inserts the annotation into a stack.
bool	IsRetained ()
	Returns a flag indicating whether the annotation is retained Created in NX3.0.0.
NXOpen::Annotations::LeaderOrientation	LeaderOrientation ()
	Returns the leader orientation for the annotation.
int	NumberOfAssociativities ()
	Returns the number of associativities for the annotation.
void	SetAnnotationOrigin (const NXOpen::Point3d &origin)
	Sets the origin (location) of the annotation.
void	SetAnnotationPlane (NXOpen::Xform *annotationPlane)
	Sets the annotation plane.
void	SetAssociativeOrigin (const NXOpen::Annotations::Annotation::AssociativeOriginData &assocOrigin, const NXOpen::Point3d &origin)
	Associates the annotation's origin to the specified geometry.
void	SetAssociativity (int associativityIndex, NXOpen::Annotations::Associativity *associativity)
	Sets the associativity at specified index.
void	SetLeaderOrientation (NXOpen::Annotations::LeaderOrientation leaderOrientation)
	Sets the leader orientation for the annotation.
void	SetLetteringPreferences (NXOpen::Annotations::LetteringPreferences *letteringPrefs)
	Sets the lettering preferences for the annotation.
void	SetLineAndArrowPreferences (NXOpen::Annotations::LineAndArrowPreferences *lineArrowPrefs)
	Sets the line and arrow preferences for the annotation.
void	SetSymbolPreferences (NXOpen::Annotations::SymbolPreferences *symbolPrefs)
	Sets the symbol preferences for the annotation.
void	SetViews (const std::vector< NXOpen::View * > &modelViews)
	Sets the views that the PMI display instance object is displayed in.

Detailed Description

This class represents a Drafting Viewing Direction Arrow.

Object of this class will be created when projected view is created and cannot be independently
There is no KF creator for this class.

Created in NX9.0.0.

---

The documentation for this class was generated from the following file:

• Drawings_ViewingDirectionArrow.hxx
