NXOpen::Drawings::PictorialSectionLine Class Reference

A Pictorial Simple or Pictorial Stepped Section Line. More...

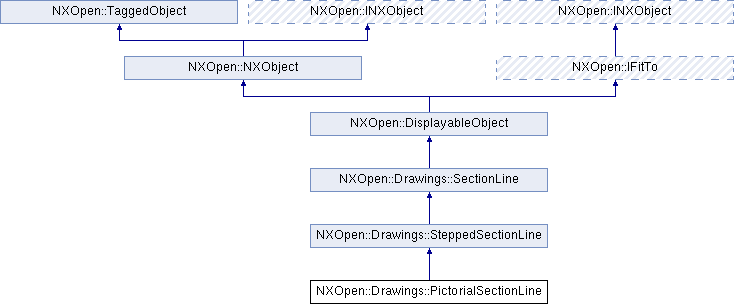

Inheritance diagram for NXOpen::Drawings::PictorialSectionLine:

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...
Public Member Functions inherited from NXOpen::DisplayableObject
void	Blank ()
	Blanks the object.
int	Color ()
	Returns the color of the object.
void	Highlight ()
	Highlights the object.
bool	IsBlanked ()
	Returns the blank status of this object.
int	Layer ()
	Returns the layer that the object is in.
NXOpen::DisplayableObject::ObjectFont	LineFont ()
	Returns the line font of the object.
NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
	Returns the line width of the object.
NXOpen::Point3d	NameLocation ()
	Returns the location of the object's name.
void	RedisplayObject ()
	Redisplays the object in all views.
void	SetColor (int color)
	Sets the color of the object.
void	SetLayer (int layer)
	Sets the layer that the object is in.
void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the line font of the object.
void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the line width of the object.
void	SetNameLocation (const NXOpen::Point3d &location)
	Sets the location of the object's name.
void	Unblank ()
	Unblanks the object.
void	Unhighlight ()
	Unhighlights the object.

Detailed Description

A Pictorial Simple or Pictorial Stepped Section Line.

   This section line is used to create either a simple or stepped
   section cut from a pictorial parent member view. The section line
   displays as a pictorial section line.

   Pictorial Simple Section Line provides one cut to form a view that
   allows you to see the inside of a part. The view is created by
   dividing the part with a single cutting plane.

   Pictorial Stepped Section Line lets you create a section view which
   contains linear steps. You can make these steps by indicating multiple
   cuts, bends, and arrow segments. All bend and arrow segments are
   created perpendicular to cut segments.  <br> To create or edit an instance of this class, use @link Drawings::SectionLineBuilder  Drawings::SectionLineBuilder @endlink  <br>

Created in NX6.0.0.

---

The documentation for this class was generated from the following file:

• Drawings_PictorialSectionLine.hxx
