Half Section Line is used to create a view with half of the part sectioned and the other half un-sectioned. More...

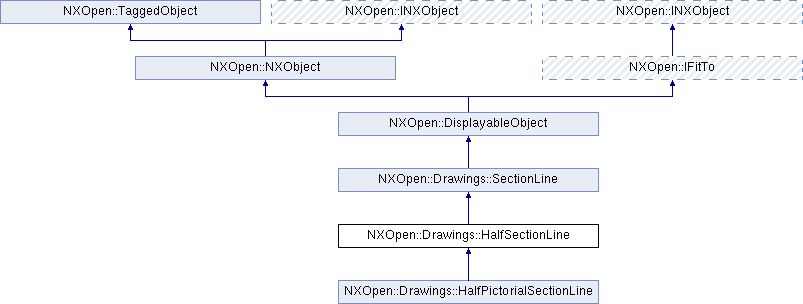

Inheritance diagram for NXOpen::Drawings::HalfSectionLine:
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
| Public Member Functions inherited from NXOpen::DisplayableObject | |
| void | Blank () |
| Blanks the object. | |
| int | Color () |
| Returns the color of the object. | |
| void | Highlight () |
| Highlights the object. | |
| bool | IsBlanked () |
| Returns the blank status of this object. | |
| int | Layer () |
| Returns the layer that the object is in. | |
| NXOpen::DisplayableObject::ObjectFont | LineFont () |
| Returns the line font of the object. | |
| NXOpen::DisplayableObject::ObjectWidth | LineWidth () |
| Returns the line width of the object. | |
| NXOpen::Point3d | NameLocation () |
| Returns the location of the object's name. | |
| void | RedisplayObject () |
| Redisplays the object in all views. | |
| void | SetColor (int color) |
| Sets the color of the object. | |
| void | SetLayer (int layer) |
| Sets the layer that the object is in. | |
| void | SetLineFont (NXOpen::DisplayableObject::ObjectFont font) |
| Sets the line font of the object. | |
| void | SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width) |
| Sets the line width of the object. | |
| void | SetNameLocation (const NXOpen::Point3d &location) |
| Sets the location of the object's name. | |
| void | Unblank () |
| Unblanks the object. | |
| void | Unhighlight () |
| Unhighlights the object. | |
Detailed Description
Half Section Line is used to create a view with half of the part sectioned and the other half un-sectioned.
Half sections are similar to simple and stepped sections in that the cut segment is parallel to the defined hinge line. Note that the Half Section Line contains only one arrow, one bend, and one cut segment.
To create or edit an instance of this class, use Drawings::SectionLineBuilder
Created in NX6.0.0.
The documentation for this class was generated from the following file:
- Drawings_HalfSectionLine.hxx
