Represents a Lineup feature builder
To create a new instance of this class, use Die::DieCollection::Lineup

Created in NX4.0.0. More...

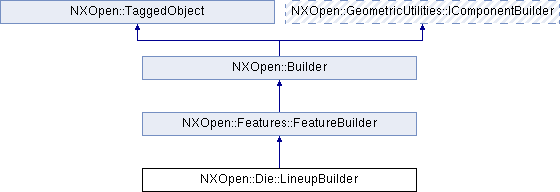

Inheritance diagram for NXOpen::Die::LineupBuilder:

Public Member Functions
NXOpen::Vector3d	FlowDirection ()
	Returns the flow direction of the lineup Created in NX7.5.0.

std::vector< NXString >	GetDetails ()
	Gets the detailed description of the lineup.

std::vector< NXOpen::Body * >	GetProductBodies ()
	Gets the product sheet bodies of the lineup.

NXOpen::Point3d	Origin ()
	Returns the origin of the lineup Created in NX4.0.0.

NXOpen::Vector3d	PressDirection ()
	Returns the press direction of the lineup Created in NX7.5.0.

void	SetDetails (std::vector< NXString > &strings)
	Sets the detailed description of the lineup Created in NX4.0.0.

void	SetFlowDirection (const NXOpen::Vector3d &flowDirection)
	Sets the flow direction of the lineup Created in NX7.5.0.

void	SetOrigin (const NXOpen::Point3d &origin)
	Sets the origin of the lineup Created in NX4.0.0.

void	SetPressDirection (const NXOpen::Vector3d &pressDirection)
	Sets the press direction of the lineup Created in NX7.5.0.

void	SetProductBodies (const std::vector< NXOpen::Body * > &objects)
	Sets the product sheet bodies of the lineup Created in NX4.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Lineup feature builder
To create a new instance of this class, use Die::DieCollection::Lineup

Created in NX4.0.0.

Member Function Documentation

NXOpen::Vector3d NXOpen::Die::LineupBuilder::FlowDirection ( )

Returns the flow direction of the lineup
Created in NX7.5.0.

License requirements : die_engineering ("DIE ENGINEERING")

std::vector<NXString> NXOpen::Die::LineupBuilder::GetDetails ( )

Gets the detailed description of the lineup.

Returns: detail strings
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

std::vector<NXOpen::Body *> NXOpen::Die::LineupBuilder::GetProductBodies ( )

Gets the product sheet bodies of the lineup.

Returns: Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

NXOpen::Point3d NXOpen::Die::LineupBuilder::Origin ( )

Returns the origin of the lineup
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

NXOpen::Vector3d NXOpen::Die::LineupBuilder::PressDirection ( )

Returns the press direction of the lineup
Created in NX7.5.0.

License requirements : die_engineering ("DIE ENGINEERING")

void NXOpen::Die::LineupBuilder::SetDetails ( std::vector< NXString > & strings )

Sets the detailed description of the lineup
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

strings detail strings
NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Die::LineupBuilder::SetFlowDirection ( const NXOpen::Vector3d & flowDirection )

Sets the flow direction of the lineup
Created in NX7.5.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

flowDirection flowdirection

void NXOpen::Die::LineupBuilder::SetOrigin ( const NXOpen::Point3d & origin )

Sets the origin of the lineup
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

origin origin

void NXOpen::Die::LineupBuilder::SetPressDirection ( const NXOpen::Vector3d & pressDirection )

Sets the press direction of the lineup
Created in NX7.5.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

pressDirection pressdirection

void NXOpen::Die::LineupBuilder::SetProductBodies ( const std::vector< NXOpen::Body * > & objects )

Sets the product sheet bodies of the lineup
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

objects objects

The documentation for this class was generated from the following file:

Die_LineupBuilder.hxx
