Represents an Area Fill feature
To create a new instance of this class, use Die::DieCollection::Fill

Created in NX4.0.0. More...

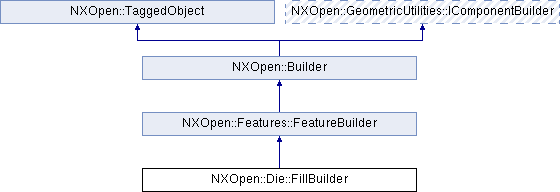

Inheritance diagram for NXOpen::Die::FillBuilder:

Public Member Functions
double	AngleTolerance ()
	Returns the angle tolerance of the area fill Created in NX4.0.0.

bool	CopyAndMirror ()
	Returns the copy and mirror setting of the area fill Created in NX4.0.1.

double	DistanceTolerance ()
	Returns the distance tolerance of the area fill Created in NX4.0.0.

bool	FillForAddendum ()
	Returns the fill for addendum setting of the area fill Created in NX4.0.0.

std::vector< NXOpen::Body * >	GetFillShape ()
	Gets the fill shape of the area fill.

std::vector< NXOpen::IProfile * >	GetRegionBounds (NXOpen::Die::DirectionOption *direction)
	Gets the region bounds of the area fill.

NXOpen::ISurface *	MirrorPlane ()
	Returns the plane to mirror the area fill about Created in NX4.0.1.

NXOpen::Point *	PointInRegion ()
	Returns the point in region of the area fill Created in NX4.0.0.

void	SetAngleTolerance (double angleTolerance)
	Sets the angle tolerance of the area fill Created in NX4.0.0.

void	SetCopyAndMirror (bool copyAndMirror)
	Sets the copy and mirror setting of the area fill Created in NX4.0.1.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance of the area fill Created in NX4.0.0.

void	SetFillForAddendum (bool fillForAddendum)
	Sets the fill for addendum setting of the area fill Created in NX4.0.0.

void	SetFillShape (const std::vector< NXOpen::Body * > &bodies)
	Sets the fill shape of the area fill Created in NX4.0.0.

void	SetMirrorPlane (NXOpen::ISurface *mirrorPlane)
	Sets the plane to mirror the area fill about Created in NX4.0.1.

void	SetPointInRegion (NXOpen::Point *pointInRegion)
	Sets the point in region of the area fill Created in NX4.0.0.

void	SetRegionBounds (NXOpen::Die::DirectionOption direction, const std::vector< NXOpen::IProfile * > &profileEntries)
	Sets the region bounds of the area fill Created in NX4.0.0.

void	SetTippedProduct (NXOpen::Features::Feature *tippedProduct)
	Sets the tipped product of the area fill Created in NX4.0.0.

NXOpen::Features::Feature *	TippedProduct ()
	Returns the tipped product of the area fill Created in NX4.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents an Area Fill feature
To create a new instance of this class, use Die::DieCollection::Fill

Created in NX4.0.0.

Member Function Documentation

double NXOpen::Die::FillBuilder::AngleTolerance ( )

Returns the angle tolerance of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

bool NXOpen::Die::FillBuilder::CopyAndMirror ( )

Returns the copy and mirror setting of the area fill
Created in NX4.0.1.

License requirements : die_engineering ("DIE ENGINEERING")

double NXOpen::Die::FillBuilder::DistanceTolerance ( )

Returns the distance tolerance of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

bool NXOpen::Die::FillBuilder::FillForAddendum ( )

Returns the fill for addendum setting of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

std::vector<NXOpen::Body *> NXOpen::Die::FillBuilder::GetFillShape ( )

Gets the fill shape of the area fill.

Returns: bodies
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

std::vector<NXOpen::IProfile *> NXOpen::Die::FillBuilder::GetRegionBounds ( NXOpen::Die::DirectionOption * direction )

Gets the region bounds of the area fill.

Returns: profile entries
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

direction Profile direction

NXOpen::ISurface* NXOpen::Die::FillBuilder::MirrorPlane ( )

Returns the plane to mirror the area fill about
Created in NX4.0.1.

License requirements : die_engineering ("DIE ENGINEERING")

NXOpen::Point* NXOpen::Die::FillBuilder::PointInRegion ( )

Returns the point in region of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

void NXOpen::Die::FillBuilder::SetAngleTolerance ( double angleTolerance )

Sets the angle tolerance of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

angleTolerance angle tolerance

void NXOpen::Die::FillBuilder::SetCopyAndMirror ( bool copyAndMirror )

Sets the copy and mirror setting of the area fill
Created in NX4.0.1.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

copyAndMirror = true - original sheet body will be copied in its current position and a copy will also be mirrored. the two sheet bodies will be sewn together on output = false - only mirrored copy will be produced

void NXOpen::Die::FillBuilder::SetDistanceTolerance ( double distanceTolerance )

Sets the distance tolerance of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

distanceTolerance distance tolerance

void NXOpen::Die::FillBuilder::SetFillForAddendum ( bool fillForAddendum )

Sets the fill for addendum setting of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

fillForAddendum = true - area fill is for addendum and will be called DIE_ADDENDUM_FILL

void NXOpen::Die::FillBuilder::SetFillShape ( const std::vector< NXOpen::Body * > & bodies )

Sets the fill shape of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

bodies bodies

void NXOpen::Die::FillBuilder::SetMirrorPlane ( NXOpen::ISurface * mirrorPlane )

Sets the plane to mirror the area fill about
Created in NX4.0.1.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

mirrorPlane mirror plane

void NXOpen::Die::FillBuilder::SetPointInRegion ( NXOpen::Point * pointInRegion )

Sets the point in region of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

pointInRegion point in region

void NXOpen::Die::FillBuilder::SetRegionBounds	(	NXOpen::Die::DirectionOption	direction,
		const std::vector< NXOpen::IProfile * > &	profileEntries
	)

Sets the region bounds of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

direction	Profile direction
profileEntries	profile entries

void NXOpen::Die::FillBuilder::SetTippedProduct ( NXOpen::Features::Feature * tippedProduct )

Sets the tipped product of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

tippedProduct tipped product

NXOpen::Features::Feature* NXOpen::Die::FillBuilder::TippedProduct ( )

Returns the tipped product of the area fill
Created in NX4.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

The documentation for this class was generated from the following file:

Die_FillBuilder.hxx
