Represents a WedmExtGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateWedmExtGeomBuilder
Created in NX5.0.0.
More...

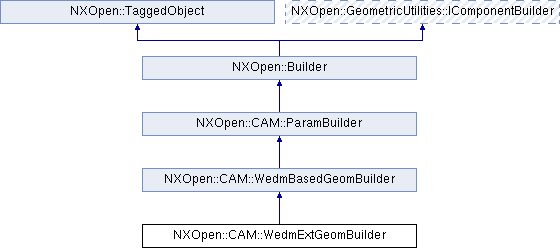

Inheritance diagram for NXOpen::CAM::WedmExtGeomBuilder:
Additional Inherited Members | |
 Public Types inherited from NXOpen::CAM::ParamBuilder | |
| enum | OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand } |
| Available types for Optimization Method in operation. More... | |
| Public Member Functions inherited from NXOpen::CAM::WedmBasedGeomBuilder | |
| int | BackburnPasses () |
| Returns the Backburn Passes Created in NX5.0.0. | |
| NXOpen::CAM::WedmCustomBoundaryDataBuilderList * | CustomBoundaryDataList () |
| Returns the Custom Boundary Data List Created in NX5.0.0. | |
| int | CutDirection () |
| Returns the Cut Direction Created in NX5.0.0. | |
| double | CutoffDistance () |
| Returns the Cutoff Distance Created in NX5.0.1. | |
| int | CutoffFlag () |
| Returns the Cutoff Flag Created in NX5.0.1. | |
| double | CutoffStock () |
| Returns the Cutoff Stock Created in NX5.0.1. | |
| int | FinishPasses () |
| Returns the Finish Passes Created in NX5.0.0. | |
| NXOpen::NXObject * | FromPoint () |
| Returns the From Point Created in NX5.0.0. | |
| int | FromPointStatus () |
| Returns the From Point Status Created in NX5.0.0. | |
| NXOpen::NXObject * | FromPointToolAxis () |
| Returns the From Point Tool Axis Created in NX5.0.0. | |
| NXOpen::NXObject * | GoHomePoint () |
| Returns the Go Home Point Created in NX5.0.0. | |
| int | GoHomePointStatus () |
| Returns the Go Home Point Status Created in NX5.0.0. | |
| NXOpen::NXObject * | GoHomePointToolAxis () |
| Returns the Go Home Point Tool Axis Created in NX5.0.0. | |
| double | Intol () |
| Returns the intol value Created in NX5.0.0. | |
| NXOpen::CAM::LayoutCiBuilder * | LayoutCiBuilder () |
| Returns the Save Layer/Layout builder Created in NX5.0.0. | |
| NXOpen::NXObject * | LeadInPoint () |
| Returns the Lead In Point Created in NX5.0.0. | |
| int | LeadInPointStatus () |
| Returns the Lead In Point Status Created in NX5.0.0. | |
| int | LeadOutPointStatus () |
| Returns the Lead Out Point Status Created in NX5.0.0. | |
| double | LowerPlane () |
| Returns the Lower Plane Created in NX5.0.0. | |
| int | NumTabs () |
| Returns the Tab Points Created in NX5.0.0. | |
| double | Outtol () |
| Returns the outtol value Created in NX5.0.0. | |
| int | RegionMethod () |
| Returns the Tab Points Region Method Created in NX5.0.0. | |
| NXOpen::NXObject * | RetractPoint () |
| Returns the Retract Point Created in NX5.0.0. | |
| int | RetractPointStatus () |
| Returns the Retract Point Status Created in NX5.0.0. | |
| NXOpen::NXObject * | RetractPointToolAxis () |
| Returns the Retract Point Tool Axis Created in NX5.0.0. | |
| int | RoughPasses () |
| Returns the Rough Passes Created in NX5.0.0. | |
| void | SetBackburnPasses (int backburnPasses) |
| Sets the Backburn Passes Created in NX5.0.0. | |
| void | SetCutDirection (int cutDirection) |
| Sets the Cut Direction Created in NX5.0.0. | |
| void | SetCutoffDistance (double cutoffDistance) |
| Sets the Cutoff Distance Created in NX5.0.1. | |
| void | SetCutoffFlag (int cutoffFlag) |
| Sets the Cutoff Flag Created in NX5.0.1. | |
| void | SetCutoffStock (double cutoffStock) |
| Sets the Cutoff Stock Created in NX5.0.1. | |
| void | SetFinishPasses (int finishPasses) |
| Sets the Finish Passes Created in NX5.0.0. | |
| void | SetFromPoint (NXOpen::NXObject *point) |
| Sets the From Point Created in NX5.0.0. | |
| void | SetFromPointStatus (int status) |
| Sets the From Point Status Created in NX5.0.0. | |
| void | SetFromPointToolAxis (NXOpen::NXObject *toolAxis) |
| Sets the From Point Tool Axis Created in NX5.0.0. | |
| void | SetGoHomePoint (NXOpen::NXObject *point) |
| Sets the Go Home Point Created in NX5.0.0. | |
| void | SetGoHomePointStatus (int status) |
| Sets the Go Home Point Status Created in NX5.0.0. | |
| void | SetGoHomePointToolAxis (NXOpen::NXObject *toolAxis) |
| Sets the Go Home Point Tool Axis Created in NX5.0.0. | |
| void | SetIntol (double intol) |
| Sets the intol value Created in NX5.0.0. | |
| void | SetLeadInPoint (NXOpen::NXObject *point) |
| Sets the Lead In Point Created in NX5.0.0. | |
| void | SetLeadInPointStatus (int status) |
| Sets the Lead In Point Status Created in NX5.0.0. | |
| void | SetLeadOutPointStatus (int status) |
| Sets the Lead Out Point Status Created in NX5.0.0. | |
| void | SetLowerPlane (double lowerPlane) |
| Sets the Lower Plane Created in NX5.0.0. | |
| void | SetNumTabs (int numTabs) |
| Sets the Tab Points Created in NX5.0.0. | |
| void | SetOuttol (double outtol) |
| Sets the outtol value Created in NX5.0.0. | |
| void | SetRegionMethod (int regionMethod) |
| Sets the Tab Points Region Method Created in NX5.0.0. | |
| void | SetRetractPoint (NXOpen::NXObject *point) |
| Sets the Retract Point Created in NX5.0.0. | |
| void | SetRetractPointStatus (int status) |
| Sets the Retract Point Status Created in NX5.0.0. | |
| void | SetRetractPointToolAxis (NXOpen::NXObject *toolAxis) |
| Sets the Retract Point Tool Axis Created in NX5.0.0. | |
| void | SetRoughPasses (int roughPasses) |
| Sets the Rough Passes Created in NX5.0.0. | |
| void | SetSmoothLeadinDistance (double leadInDistance) |
| Sets the Smooth Leadin Distance Created in NX5.0.0. | |
| void | SetSmoothLeadinFlag (int leadInFlag) |
| Sets the Smooth Leadin Flag Created in NX5.0.0. | |
| void | SetSmoothLeadoutDistance (double leadOutDistance) |
| Sets the Smooth Leadout Distance Created in NX5.0.0. | |
| void | SetSmoothLeadoutFlag (int leadOutFlag) |
| Sets the Smooth Leadout Flag Created in NX5.0.0. | |
| void | SetStopPointDistance (double stopPointDistance) |
| Sets the Stop Point Distance Created in NX5.0.0. | |
| void | SetStopPointFlag (int stopPointFlag) |
| Sets the Stop Point Flag Created in NX5.0.0. | |
| void | SetStopPointType (int stopPointType) |
| Sets the Stop Point Type Created in NX5.0.0. | |
| void | SetThreadHolePoint (NXOpen::NXObject *point) |
| Sets the Thread Hole Point Created in NX5.0.0. | |
| void | SetThreadHolePointStatus (int status) |
| Sets the Thread Hole Point Status Created in NX5.0.0. | |
| void | SetThreadHolePointToolAxis (NXOpen::NXObject *toolAxis) |
| Sets the Thread Hole Point Tool Axis Created in NX5.0.0. | |
| void | SetUpperPlane (double upperPlane) |
| Sets the Upper Plane Created in NX5.0.0. | |
| void | SetWireDiameter (double wireDiameter) |
| Sets the Wire Diameter Created in NX5.0.0. | |
| double | SmoothLeadinDistance () |
| Returns the Smooth Leadin Distance Created in NX5.0.0. | |
| int | SmoothLeadinFlag () |
| Returns the Smooth Leadin Flag Created in NX5.0.0. | |
| double | SmoothLeadoutDistance () |
| Returns the Smooth Leadout Distance Created in NX5.0.0. | |
| int | SmoothLeadoutFlag () |
| Returns the Smooth Leadout Flag Created in NX5.0.0. | |
| NXOpen::CAM::StepoverBuilder * | StepoverBuilder () |
| Returns the Stepover builder Created in NX6.0.0. | |
| double | StopPointDistance () |
| Returns the Stop Point Distance Created in NX5.0.0. | |
| int | StopPointFlag () |
| Returns the Stop Point Flag Created in NX5.0.0. | |
| int | StopPointType () |
| Returns the Stop Point Type Created in NX5.0.0. | |
| NXOpen::NXObject * | ThreadHolePoint () |
| Returns the Thread Hole Point Created in NX5.0.0. | |
| int | ThreadHolePointStatus () |
| Returns the Thread Hole Point Status Created in NX5.0.0. | |
| NXOpen::NXObject * | ThreadHolePointToolAxis () |
| Returns the Thread Hole Point Tool Axis Created in NX5.0.0. | |
| double | UpperPlane () |
| Returns the Upper Plane Created in NX5.0.0. | |
| double | WireDiameter () |
| Returns the Wire Diameter Created in NX5.0.0. | |
Detailed Description
Represents a WedmExtGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateWedmExtGeomBuilder
Created in NX5.0.0.
The documentation for this class was generated from the following file:
- CAM_WedmExtGeomBuilder.hxx
