Represents a WedmBasedGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateWedmBasedGeomBuilder

Created in NX5.0.0. More...

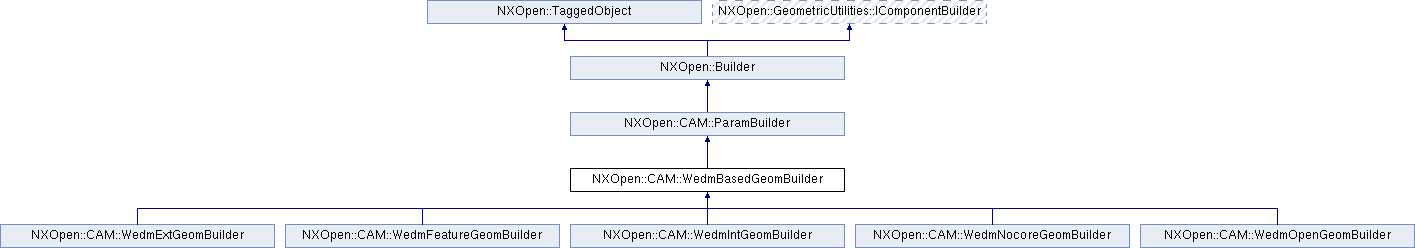

Inheritance diagram for NXOpen::CAM::WedmBasedGeomBuilder:

Public Member Functions
int	BackburnPasses ()
	Returns the Backburn Passes Created in NX5.0.0.

NXOpen::CAM::WedmCustomBoundaryDataBuilderList *	CustomBoundaryDataList ()
	Returns the Custom Boundary Data List Created in NX5.0.0.

int	CutDirection ()
	Returns the Cut Direction Created in NX5.0.0.

double	CutoffDistance ()
	Returns the Cutoff Distance Created in NX5.0.1.

int	CutoffFlag ()
	Returns the Cutoff Flag Created in NX5.0.1.

double	CutoffStock ()
	Returns the Cutoff Stock Created in NX5.0.1.

int	FinishPasses ()
	Returns the Finish Passes Created in NX5.0.0.

NXOpen::NXObject *	FromPoint ()
	Returns the From Point Created in NX5.0.0.

int	FromPointStatus ()
	Returns the From Point Status Created in NX5.0.0.

NXOpen::NXObject *	FromPointToolAxis ()
	Returns the From Point Tool Axis Created in NX5.0.0.

NXOpen::NXObject *	GoHomePoint ()
	Returns the Go Home Point Created in NX5.0.0.

int	GoHomePointStatus ()
	Returns the Go Home Point Status Created in NX5.0.0.

NXOpen::NXObject *	GoHomePointToolAxis ()
	Returns the Go Home Point Tool Axis Created in NX5.0.0.

double	Intol ()
	Returns the intol value Created in NX5.0.0.

NXOpen::CAM::LayoutCiBuilder *	LayoutCiBuilder ()
	Returns the Save Layer/Layout builder Created in NX5.0.0.

NXOpen::NXObject *	LeadInPoint ()
	Returns the Lead In Point Created in NX5.0.0.

int	LeadInPointStatus ()
	Returns the Lead In Point Status Created in NX5.0.0.

int	LeadOutPointStatus ()
	Returns the Lead Out Point Status Created in NX5.0.0.

double	LowerPlane ()
	Returns the Lower Plane Created in NX5.0.0.

int	NumTabs ()
	Returns the Tab Points Created in NX5.0.0.

double	Outtol ()
	Returns the outtol value Created in NX5.0.0.

int	RegionMethod ()
	Returns the Tab Points Region Method Created in NX5.0.0.

NXOpen::NXObject *	RetractPoint ()
	Returns the Retract Point Created in NX5.0.0.

int	RetractPointStatus ()
	Returns the Retract Point Status Created in NX5.0.0.

NXOpen::NXObject *	RetractPointToolAxis ()
	Returns the Retract Point Tool Axis Created in NX5.0.0.

int	RoughPasses ()
	Returns the Rough Passes Created in NX5.0.0.

void	SetBackburnPasses (int backburnPasses)
	Sets the Backburn Passes Created in NX5.0.0.

void	SetCutDirection (int cutDirection)
	Sets the Cut Direction Created in NX5.0.0.

void	SetCutoffDistance (double cutoffDistance)
	Sets the Cutoff Distance Created in NX5.0.1.

void	SetCutoffFlag (int cutoffFlag)
	Sets the Cutoff Flag Created in NX5.0.1.

void	SetCutoffStock (double cutoffStock)
	Sets the Cutoff Stock Created in NX5.0.1.

void	SetFinishPasses (int finishPasses)
	Sets the Finish Passes Created in NX5.0.0.

void	SetFromPoint (NXOpen::NXObject *point)
	Sets the From Point Created in NX5.0.0.

void	SetFromPointStatus (int status)
	Sets the From Point Status Created in NX5.0.0.

void	SetFromPointToolAxis (NXOpen::NXObject *toolAxis)
	Sets the From Point Tool Axis Created in NX5.0.0.

void	SetGoHomePoint (NXOpen::NXObject *point)
	Sets the Go Home Point Created in NX5.0.0.

void	SetGoHomePointStatus (int status)
	Sets the Go Home Point Status Created in NX5.0.0.

void	SetGoHomePointToolAxis (NXOpen::NXObject *toolAxis)
	Sets the Go Home Point Tool Axis Created in NX5.0.0.

void	SetIntol (double intol)
	Sets the intol value Created in NX5.0.0.

void	SetLeadInPoint (NXOpen::NXObject *point)
	Sets the Lead In Point Created in NX5.0.0.

void	SetLeadInPointStatus (int status)
	Sets the Lead In Point Status Created in NX5.0.0.

void	SetLeadOutPointStatus (int status)
	Sets the Lead Out Point Status Created in NX5.0.0.

void	SetLowerPlane (double lowerPlane)
	Sets the Lower Plane Created in NX5.0.0.

void	SetNumTabs (int numTabs)
	Sets the Tab Points Created in NX5.0.0.

void	SetOuttol (double outtol)
	Sets the outtol value Created in NX5.0.0.

void	SetRegionMethod (int regionMethod)
	Sets the Tab Points Region Method Created in NX5.0.0.

void	SetRetractPoint (NXOpen::NXObject *point)
	Sets the Retract Point Created in NX5.0.0.

void	SetRetractPointStatus (int status)
	Sets the Retract Point Status Created in NX5.0.0.

void	SetRetractPointToolAxis (NXOpen::NXObject *toolAxis)
	Sets the Retract Point Tool Axis Created in NX5.0.0.

void	SetRoughPasses (int roughPasses)
	Sets the Rough Passes Created in NX5.0.0.

void	SetSmoothLeadinDistance (double leadInDistance)
	Sets the Smooth Leadin Distance Created in NX5.0.0.

void	SetSmoothLeadinFlag (int leadInFlag)
	Sets the Smooth Leadin Flag Created in NX5.0.0.

void	SetSmoothLeadoutDistance (double leadOutDistance)
	Sets the Smooth Leadout Distance Created in NX5.0.0.

void	SetSmoothLeadoutFlag (int leadOutFlag)
	Sets the Smooth Leadout Flag Created in NX5.0.0.

void	SetStopPointDistance (double stopPointDistance)
	Sets the Stop Point Distance Created in NX5.0.0.

void	SetStopPointFlag (int stopPointFlag)
	Sets the Stop Point Flag Created in NX5.0.0.

void	SetStopPointType (int stopPointType)
	Sets the Stop Point Type Created in NX5.0.0.

void	SetThreadHolePoint (NXOpen::NXObject *point)
	Sets the Thread Hole Point Created in NX5.0.0.

void	SetThreadHolePointStatus (int status)
	Sets the Thread Hole Point Status Created in NX5.0.0.

void	SetThreadHolePointToolAxis (NXOpen::NXObject *toolAxis)
	Sets the Thread Hole Point Tool Axis Created in NX5.0.0.

void	SetUpperPlane (double upperPlane)
	Sets the Upper Plane Created in NX5.0.0.

void	SetWireDiameter (double wireDiameter)
	Sets the Wire Diameter Created in NX5.0.0.

double	SmoothLeadinDistance ()
	Returns the Smooth Leadin Distance Created in NX5.0.0.

int	SmoothLeadinFlag ()
	Returns the Smooth Leadin Flag Created in NX5.0.0.

double	SmoothLeadoutDistance ()
	Returns the Smooth Leadout Distance Created in NX5.0.0.

int	SmoothLeadoutFlag ()
	Returns the Smooth Leadout Flag Created in NX5.0.0.

NXOpen::CAM::StepoverBuilder *	StepoverBuilder ()
	Returns the Stepover builder Created in NX6.0.0.

double	StopPointDistance ()
	Returns the Stop Point Distance Created in NX5.0.0.

int	StopPointFlag ()
	Returns the Stop Point Flag Created in NX5.0.0.

int	StopPointType ()
	Returns the Stop Point Type Created in NX5.0.0.

NXOpen::NXObject *	ThreadHolePoint ()
	Returns the Thread Hole Point Created in NX5.0.0.

int	ThreadHolePointStatus ()
	Returns the Thread Hole Point Status Created in NX5.0.0.

NXOpen::NXObject *	ThreadHolePointToolAxis ()
	Returns the Thread Hole Point Tool Axis Created in NX5.0.0.

double	UpperPlane ()
	Returns the Upper Plane Created in NX5.0.0.

double	WireDiameter ()
	Returns the Wire Diameter Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Detailed Description

Represents a WedmBasedGeom Builder
To create a new instance of this class, use CAM::NCGroupCollection::CreateWedmBasedGeomBuilder

Created in NX5.0.0.
