Represents a TeachmodeTurningBuilder
To create a new instance of this class, use CAM::OperationCollection::CreateTeachmodeTurningBuilder
Created in NX7.5.0.
More...

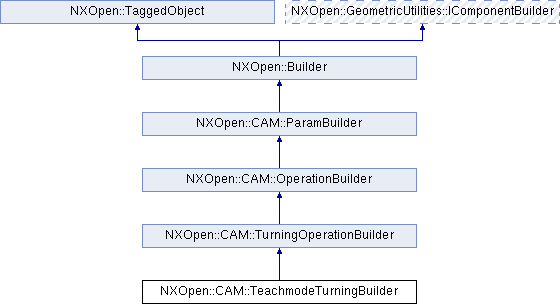

Inheritance diagram for NXOpen::CAM::TeachmodeTurningBuilder:
Public Member Functions | |
| NXOpen::CAM::NcmTurningBuilder * | NonCuttingBuilder () |
| Returns the non cutting builder Created in NX7.5.0. | |
 Public Member Functions inherited from NXOpen::CAM::TurningOperationBuilder | |
| NXString | AdditionalCommands () |
| Returns the Additional Commands Created in NX6.0.0. | |
| NXOpen::CAM::FeedsTurnBuilder * | FeedsBuilder () |
| Returns the feeds and speeds builder Created in NX6.0.0. | |
| bool | FlipToolAroundHolder () |
| Returns the Flip Tool Around Holder toggle Created in NX6.0.0. | |
| NXOpen::CAM::LayoutCiBuilder * | LayoutAndLayer () |
| Returns the Layer and Layout Created in NX6.0.0. | |
| NXString | MachineCycleSubroutineName () |
| Returns the machine cycle subroutine name Created in NX8.0.0. | |
| NXOpen::CAM::TurningOperationBuilder::MotionOutputOptions | MotionOutput () |
| Returns the motion output Created in NX6.0.0. | |
| bool | ReorientToolHolder () |
| Returns the Reorient Tool Holder toggle Created in NX6.0.0. | |
| bool | RotateTrackingPoint () |
| Returns the Rotate Tracking Point toggle | |
| void | SetAdditionalCommands (const NXString &additionalCommands) |
| Sets the Additional Commands Created in NX6.0.0. | |
| void | SetAdditionalCommands (const char *additionalCommands) |
| Sets the Additional Commands Created in NX6.0.0. | |
| void | SetFlipToolAroundHolder (bool machAAxis) |
| Sets the Flip Tool Around Holder toggle Created in NX6.0.0. | |
| void | SetMachineCycleSubroutineName (const NXString &machineCycleSubroutineName) |
| Sets the machine cycle subroutine name Created in NX8.0.0. | |
| void | SetMachineCycleSubroutineName (const char *machineCycleSubroutineName) |
| Sets the machine cycle subroutine name Created in NX8.0.0. | |
| void | SetMotionOutput (NXOpen::CAM::TurningOperationBuilder::MotionOutputOptions motionOutput) |
| Sets the motion output Created in NX6.0.0. | |
| void | SetReorientToolHolder (bool reorient) |
| Sets the Reorient Tool Holder toggle Created in NX6.0.0. | |
| void | SetRotateTrackingPoint (bool rotate) |
| Sets the Rotate Tracking Point toggle | |
| void | SetTrackingPointStatus (NXOpen::CAM::TurningOperationBuilder::TrackingPointType status) |
| Sets the tracking point status Created in NX8.5.0. | |
| void | SetUpdateIpw (bool updateIpwMode) |
| Sets the update IPW mode Created in NX6.0.0. | |
| void | SetUseMachineCycle (bool machineCycle) |
| Sets the Use Machine Cycle toggle Created in NX6.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | ToolHolderAngle () |
| Returns the Tool Holder Angle Created in NX6.0.0. | |
| NXOpen::CAM::TurningOperationBuilder::TrackingPointType | TrackingPointStatus () |
| Returns the tracking point status Created in NX8.5.0. | |
| bool | UpdateIpw () |
| Returns the update IPW mode Created in NX6.0.0. | |
| bool | UseMachineCycle () |
| Returns the Use Machine Cycle toggle Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::OperationBuilder | |
| NXString | ChannelName () |
| Returns the channel's name Created in NX7.5.0. | |
| NXString | Description () |
| Returns the description Created in NX9.0.0. | |
| NXOpen::CAM::PostEventsCiBuilder * | EndOfPath () |
| Returns the end event builder Created in NX5.0.1. | |
| NXOpen::CAM::UdeSet * | EndUdeSet () |
| Returns the end ude set Created in NX7.5.0. | |
| NXOpen::CAM::GeometryCiBuilder * | Geometry () |
| Returns the geometry builder Created in NX5.0.0. | |
| std::vector< double > | GetHoleAxisValues () |
| Get the Hole Axis values. | |
| bool | GougeChecking () |
| Returns the gouge checking flag Created in NX9.0.0. | |
| NXOpen::CAM::OperationBuilder::HoleAxisTypes | HoleAxisType () |
| Returns the Hole Axis Type Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | HoleDepth () |
| Returns the max depth distance builder Created in NX5.0.0. | |
| NXOpen::CAM::OperationBuilder::HoleDepthTypes | HoleDepthType () |
| Returns the Hole Depth Type Created in NX5.0.0. | |
| NXOpen::CAM::ArcOutputTypeCiBuilder * | MotionOutputBuilder () |
| Returns the motion output builder Created in NX8.0.0. | |
| NXOpen::CAM::Notes * | Notes () |
| Returns the notes builder Created in NX9.0.0. | |
| NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes | OptimizationBasedOn () |
| Returns the optimization based on in operation Created in NX5.0.0. | |
| NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes | OptimizationDistanceMethod () |
| Returns the optimization distance method in operation Created in NX5.0.0. | |
| NXOpen::CAM::OperationBuilder::OptimizationLevelTypes | OptimizationLevel () |
| Returns the optimization level in operation Created in NX5.0.0. | |
| NXOpen::CAM::OperationDisplayOptionsBuilder * | PathDisplayOptions () |
| Returns the path display options builder Created in NX6.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | RetractDistance () |
| Returns the Retract Distance builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | RetractDistanceOnToolAxisChange () |
| Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | SafeClearance () |
| Returns the safe clearance builder Created in NX6.0.0. | |
| bool | SelectToolFlag () |
| Returns the user selected tool Created in NX5.0.0. | |
| void | SetChannelName (const NXString &channel) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetChannelName (const char *channel) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetDescription (const NXString &description) |
| Sets the description Created in NX9.0.0. | |
| void | SetDescription (const char *description) |
| Sets the description Created in NX9.0.0. | |
| void | SetGougeChecking (bool gougeChecking) |
| Sets the gouge checking flag Created in NX9.0.0. | |
| void | SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types) |
| Sets the Hole Axis Type Created in NX5.0.0. | |
| void | SetHoleAxisValues (const std::vector< double > &holeAxis) |
| Set the Hole Axis values Created in NX5.0.0. | |
| void | SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types) |
| Sets the Hole Depth Type Created in NX5.0.0. | |
| void | SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn) |
| Sets the optimization based on in operation Created in NX5.0.0. | |
| void | SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance) |
| Sets the optimization distance method in operation Created in NX5.0.0. | |
| void | SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType) |
| Sets the optimization level in operation Created in NX5.0.0. | |
| void | SetSelectToolFlag (bool selToolFlag) |
| Sets the user selected tool Created in NX5.0.0. | |
| NXOpen::CAM::PostEventsCiBuilder * | StartOfPath () |
| Returns the start event builder Created in NX5.0.1. | |
| NXOpen::CAM::UdeSet * | StartUdeSet () |
| Returns the start ude set Created in NX7.5.0. | |
| NXOpen::CAM::ToolChangeCiBuilder * | ToolChangeSetting () |
| Returns the tool change builder Created in NX5.0.0. | |
| NXOpen::CAM::ToolPathSplitParametersBuilder * | ToolPathSplitParametersBuilder () |
| Returns the tool path split Parameters Created in NX9.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::ParamBuilder | |
| NXOpen::CAM::Ude * | CycleEvent () |
| Returns the cycle event Created in NX7.5.0. | |
| NXOpen::CAM::Cycle * | CycleTable () |
| Returns the cycle Created in NX9.0.0. | |
| NXOpen::CAM::ParamBuilder::OptimizationTypes | OptimizationMethod () |
| Returns the optim method Created in NX5.0.0. | |
| void | SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod) |
| Sets the optim method Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::CAM::TurningOperationBuilder | |
| enum | MotionOutputOptions { MotionOutputOptionsLinearOnly, MotionOutputOptionsCircular, MotionOutputOptionsMachineCycle } |
| The motion output options Created in NX6.0.0. More... | |
| enum | TrackingPointType { TrackingPointTypeFixed, TrackingPointTypeRotate, TrackingPointTypeAuto } |
| available types for tracking point More... | |
Detailed Description
Represents a TeachmodeTurningBuilder
To create a new instance of this class, use CAM::OperationCollection::CreateTeachmodeTurningBuilder
Created in NX7.5.0.
Member Function Documentation
| NXOpen::CAM::NcmTurningBuilder* NXOpen::CAM::TeachmodeTurningBuilder::NonCuttingBuilder | ( | ) |
Returns the non cutting builder
Created in NX7.5.0.
License requirements : None
The documentation for this class was generated from the following file:
- CAM_TeachmodeTurningBuilder.hxx
