Represents a SolidTracking Builder
To create a new instance of this class, use CAM::Tool::CreateSolidTrackingBuilder

Created in NX5.0.0. More...

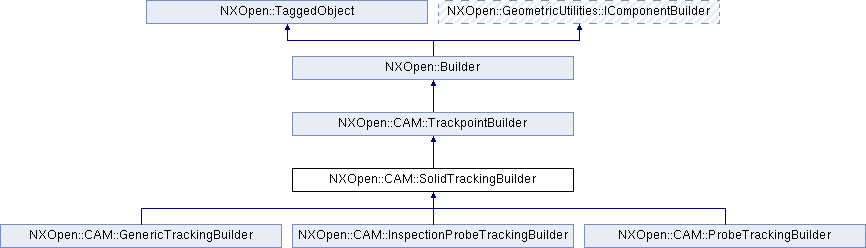

Inheritance diagram for NXOpen::CAM::SolidTrackingBuilder:

Public Member Functions
NXOpen::NXObject *	Location ()
	Returns the location Created in NX5.0.0.

void	SetLocation (NXOpen::NXObject *tpLocation)
	Sets the location Created in NX5.0.0.

void	SetTrackingXOff (double xoffValue)
	Sets the XOff value Created in NX5.0.0.

void	SetTrackingYOff (double yoffValue)
	Sets the YOff value Created in NX5.0.0.

void	SetTrackingZOff (double zoffValue)
	Sets the ZOff value Created in NX5.0.0.

double	TrackingXOff ()
	Returns the XOff value Created in NX5.0.0.

double	TrackingYOff ()
	Returns the YOff value Created in NX5.0.0.

double	TrackingZOff ()
	Returns the ZOff value Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::TrackpointBuilder
void	SetTlAdjReg (int tlAdjReg)
	Sets the adjust register Created in NX5.0.0.

void	SetTlCutcomReg (int tlCutcomReg)
	Sets the cutcom register Created in NX5.0.0.

void	SetTrackingName (const NXString &nameValue)
	Sets the Tracking Point name value Created in NX5.0.0.

void	SetTrackingName (const char *nameValue)
	Sets the Tracking Point name value Created in NX5.0.0.

int	TlAdjReg ()
	Returns the adjust register Created in NX5.0.0.

int	TlCutcomReg ()
	Returns the cutcom register Created in NX5.0.0.

NXString	TrackingName ()
	Returns the Tracking Point name value Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a SolidTracking Builder
To create a new instance of this class, use CAM::Tool::CreateSolidTrackingBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::NXObject* NXOpen::CAM::SolidTrackingBuilder::Location ( )

Returns the location
Created in NX5.0.0.

License requirements : None

void NXOpen::CAM::SolidTrackingBuilder::SetLocation ( NXOpen::NXObject * tpLocation )

Sets the location
Created in NX5.0.0.

License requirements : None

Parameters

tpLocation the tracking point tag

void NXOpen::CAM::SolidTrackingBuilder::SetTrackingXOff ( double xoffValue )

Sets the XOff value
Created in NX5.0.0.

License requirements : None

Parameters

xoffValue the xoff value

void NXOpen::CAM::SolidTrackingBuilder::SetTrackingYOff ( double yoffValue )

Sets the YOff value
Created in NX5.0.0.

License requirements : None

Parameters

yoffValue the yoff value

void NXOpen::CAM::SolidTrackingBuilder::SetTrackingZOff ( double zoffValue )

Sets the ZOff value
Created in NX5.0.0.

License requirements : None

Parameters

zoffValue the zoff value

double NXOpen::CAM::SolidTrackingBuilder::TrackingXOff ( )

Returns the XOff value
Created in NX5.0.0.

License requirements : None

double NXOpen::CAM::SolidTrackingBuilder::TrackingYOff ( )

Returns the YOff value
Created in NX5.0.0.

License requirements : None

double NXOpen::CAM::SolidTrackingBuilder::TrackingZOff ( )

Returns the ZOff value
Created in NX5.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAM_SolidTrackingBuilder.hxx
