Represents a Trackpoint Builder
This is an abstract class and can not be instantiated

Created in NX5.0.0. More...

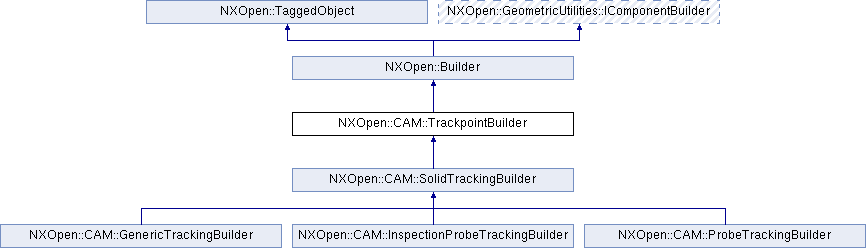

Inheritance diagram for NXOpen::CAM::TrackpointBuilder:

Public Member Functions
void	SetTlAdjReg (int tlAdjReg)
	Sets the adjust register Created in NX5.0.0.

void	SetTlCutcomReg (int tlCutcomReg)
	Sets the cutcom register Created in NX5.0.0.

void	SetTrackingName (const NXString &nameValue)
	Sets the Tracking Point name value Created in NX5.0.0.

void	SetTrackingName (const char *nameValue)
	Sets the Tracking Point name value Created in NX5.0.0.

int	TlAdjReg ()
	Returns the adjust register Created in NX5.0.0.

int	TlCutcomReg ()
	Returns the cutcom register Created in NX5.0.0.

NXString	TrackingName ()
	Returns the Tracking Point name value Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Trackpoint Builder
This is an abstract class and can not be instantiated

Created in NX5.0.0.

Member Function Documentation

void NXOpen::CAM::TrackpointBuilder::SetTlAdjReg ( int tlAdjReg )

Sets the adjust register
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

tlAdjReg The adjust register

void NXOpen::CAM::TrackpointBuilder::SetTlCutcomReg ( int tlCutcomReg )

Sets the cutcom register
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

tlCutcomReg The cutcom register

void NXOpen::CAM::TrackpointBuilder::SetTrackingName ( const NXString & nameValue )

Sets the Tracking Point name value
Created in NX5.0.0.

License requirements : None

Parameters

nameValue the name value

void NXOpen::CAM::TrackpointBuilder::SetTrackingName ( const char * nameValue )

Sets the Tracking Point name value
Created in NX5.0.0.

License requirements : None

Parameters

nameValue the name value

int NXOpen::CAM::TrackpointBuilder::TlAdjReg ( )

Returns the adjust register
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

int NXOpen::CAM::TrackpointBuilder::TlCutcomReg ( )

Returns the cutcom register
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXString NXOpen::CAM::TrackpointBuilder::TrackingName ( )

Returns the Tracking Point name value
Created in NX5.0.0.

License requirements : None
