Represents a OrientGeom Builder
This is an abstract class, and cannot be instantiated. More...

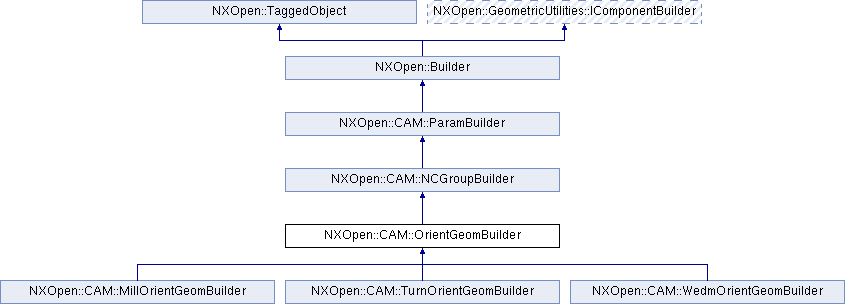

Inheritance diagram for NXOpen::CAM::OrientGeomBuilder:

Public Types
enum	CsysPurposeModes { CsysPurposeModesLocal, CsysPurposeModesMain }
	The CSYS purpose mode options Created in NX5.0.0. More...

enum	SpecialOutputModes { SpecialOutputModesNone, SpecialOutputModesUseMainMcs, SpecialOutputModesFixtureOffset, SpecialOutputModesCsysRotation }
	The special output mode options Created in NX5.0.0. More...

enum	ToolAxisModes { ToolAxisModesPositiveZOfMcs, ToolAxisModesFixedAxis, ToolAxisModesAllAxes }
	the tool axis mode options More...

Public Member Functions
NXOpen::CAM::InheritableIntBuilder *	FixtureOffsetBuilder ()
	Returns the Fixture Offset builder Created in NX5.0.0.

NXOpen::CAM::OrientGeomBuilder::CsysPurposeModes	GetCsysPurposeMode ()
	Returns the CSYS purpose.

NXOpen::CAM::OrientGeomBuilder::SpecialOutputModes	GetSpecialOutputMode ()
	Returns the Special Output.

NXOpen::CAM::OrientGeomBuilder::ToolAxisModes	GetToolAxisMode ()
	Returns the tool axis mode.

NXOpen::CAM::LayoutCiBuilder *	LayoutCiBuilder ()
	Returns the Save Layer/Layout builder Created in NX5.0.0.

bool	LinkRcsToMcs ()
	Returns the link RCS to MCS Created in NX5.0.0.

NXOpen::CartesianCoordinateSystem *	Mcs ()
	Returns the MCS Created in NX5.0.0.

NXOpen::CartesianCoordinateSystem *	Rcs ()
	Returns the RCS Created in NX5.0.0.

void	SetCsysPurposeMode (NXOpen::CAM::OrientGeomBuilder::CsysPurposeModes csysPurposeMode)
	Sets the CSYS purpose Created in NX5.0.0.

void	SetLinkRcsToMcs (bool linkRcsToMcs)
	Sets the link RCS to MCS Created in NX5.0.0.

void	SetMcs (NXOpen::CartesianCoordinateSystem *mcs)
	Sets the MCS Created in NX5.0.0.

void	SetRcs (NXOpen::CartesianCoordinateSystem *rcs)
	Sets the RCS Created in NX5.0.0.

void	SetSpecialOutputMode (NXOpen::CAM::OrientGeomBuilder::SpecialOutputModes specialOutputMode)
	Sets the Special Output Created in NX5.0.0.

void	SetToolAxisMode (NXOpen::CAM::OrientGeomBuilder::ToolAxisModes toolAxisMode)
	Sets the tool axis mode Created in NX5.0.0.

void	SetToolAxisVector (NXOpen::NXObject *toolAxisVector)
	Sets the tool axis vector Created in NX5.0.0.

NXOpen::NXObject *	ToolAxisVector ()
	Returns the tool axis vector Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a OrientGeom Builder
This is an abstract class, and cannot be instantiated.

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::OrientGeomBuilder::CsysPurposeModes

The CSYS purpose mode options
Created in NX5.0.0.

Enumerator:

CsysPurposeModesLocal	CSYS purpose mode: Local.
CsysPurposeModesMain	CSYS purpose mode: Main.

enum NXOpen::CAM::OrientGeomBuilder::SpecialOutputModes

The special output mode options
Created in NX5.0.0.

Enumerator:

SpecialOutputModesNone	Special output mode: None.
SpecialOutputModesUseMainMcs	Special output mode: Use main MCS.
SpecialOutputModesFixtureOffset	Special output mode: Fixture offset.
SpecialOutputModesCsysRotation	Special output mode: CSYS rotation.

enum NXOpen::CAM::OrientGeomBuilder::ToolAxisModes

the tool axis mode options

Enumerator:

ToolAxisModesPositiveZOfMcs	Tool axis mode: +Z of MCS.
ToolAxisModesFixedAxis	Tool axis mode: Fixed axis.
ToolAxisModesAllAxes	Tool axis mode: All axes.

Member Function Documentation

NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::OrientGeomBuilder::FixtureOffsetBuilder ( )

Returns the Fixture Offset builder
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::OrientGeomBuilder::CsysPurposeModes NXOpen::CAM::OrientGeomBuilder::GetCsysPurposeMode ( )

Returns the CSYS purpose.

Returns: the CSYS purpose mode
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::OrientGeomBuilder::SpecialOutputModes NXOpen::CAM::OrientGeomBuilder::GetSpecialOutputMode ( )

Returns the Special Output.

Returns: the special output mode
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::OrientGeomBuilder::ToolAxisModes NXOpen::CAM::OrientGeomBuilder::GetToolAxisMode ( )

Returns the tool axis mode.

Returns: the integer value
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::LayoutCiBuilder* NXOpen::CAM::OrientGeomBuilder::LayoutCiBuilder ( )

Returns the Save Layer/Layout builder
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

bool NXOpen::CAM::OrientGeomBuilder::LinkRcsToMcs ( )

Returns the link RCS to MCS
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CartesianCoordinateSystem* NXOpen::CAM::OrientGeomBuilder::Mcs ( )

Returns the MCS
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CartesianCoordinateSystem* NXOpen::CAM::OrientGeomBuilder::Rcs ( )

Returns the RCS
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

void NXOpen::CAM::OrientGeomBuilder::SetCsysPurposeMode ( NXOpen::CAM::OrientGeomBuilder::CsysPurposeModes csysPurposeMode )

Sets the CSYS purpose
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

csysPurposeMode the CSYS purpose mode

void NXOpen::CAM::OrientGeomBuilder::SetLinkRcsToMcs ( bool linkRcsToMcs )

Sets the link RCS to MCS
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

linkRcsToMcs the link RCS to MCS value

void NXOpen::CAM::OrientGeomBuilder::SetMcs ( NXOpen::CartesianCoordinateSystem * mcs )

Sets the MCS
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

mcs the MCS

void NXOpen::CAM::OrientGeomBuilder::SetRcs ( NXOpen::CartesianCoordinateSystem * rcs )

Sets the RCS
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

rcs the MCS

void NXOpen::CAM::OrientGeomBuilder::SetSpecialOutputMode ( NXOpen::CAM::OrientGeomBuilder::SpecialOutputModes specialOutputMode )

Sets the Special Output
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

specialOutputMode the special output mode

void NXOpen::CAM::OrientGeomBuilder::SetToolAxisMode ( NXOpen::CAM::OrientGeomBuilder::ToolAxisModes toolAxisMode )

Sets the tool axis mode
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

toolAxisMode the integer value

void NXOpen::CAM::OrientGeomBuilder::SetToolAxisVector ( NXOpen::NXObject * toolAxisVector )

Sets the tool axis vector
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

toolAxisVector the vector tag

NXOpen::NXObject* NXOpen::CAM::OrientGeomBuilder::ToolAxisVector ( )

Returns the tool axis vector
Created in NX5.0.0.

License requirements : cam_base ("CAM BASE")

The documentation for this class was generated from the following file:

CAM_OrientGeomBuilder.hxx
