Represents a CMM Inspection Curve Feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionSurfaceFeatureBuilder

Created in NX7.0.0. More...

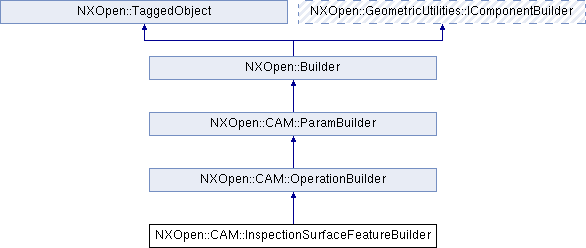

Inheritance diagram for NXOpen::CAM::InspectionSurfaceFeatureBuilder:

Public Types
enum	PointDataDefinitionType { PointDataDefinitionTypeNone, PointDataDefinitionTypePointSet, PointDataDefinitionTypeIndividualPoints }
	The method used to define point data. More...

enum	StartEndModeType { StartEndModeTypePercentage, StartEndModeTypeDistance }
	the method used to define the start and end points More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
double	EndUDistance ()
	Returns the end distance in the U direction Created in NX8.5.1.

double	EndUPercent ()
	Returns the end percent in the U direction Created in NX8.5.1.

double	EndVDistance ()
	Returns the end distance in the V direction Created in NX8.5.1.

double	EndVPercent ()
	Returns the end percent in the V direction Created in NX8.5.1.

void	ErasePointDefinitionDisplay ()
	Erases display of point definition data Created in NX9.0.0.

bool	IsPointDefinitionChanged ()
	Returns the point data definition changed flag Created in NX9.0.0.

NXString	Name ()
	Returns the name Created in NX7.0.0.

int	NumberOfUPoints ()
	Returns the number of U points Created in NX8.5.1.

int	NumberOfVPoints ()
	Returns the number of V points Created in NX8.5.1.

NXOpen::CAM::InspectionSurfaceFeatureBuilder::PointDataDefinitionType	PointDataDefinition ()
	Returns the point data definition type Created in NX8.5.1.

NXOpen::SelectPointList *	PointSelector ()
	Returns the user specified point selector Created in NX8.5.1.

void	PreviewPointData (bool showExisting)
	Creates preview of point definition data Created in NX9.0.0.

bool	ReverseDirection ()
	Returns the reverse direction Created in NX7.0.0.

NXOpen::SelectFace *	SelectedFace ()
	Returns the selected face Created in NX7.0.0.

void	SetEndUDistance (double endUDistance)
	Sets the end distance in the U direction Created in NX8.5.1.

void	SetEndUPercent (double endUPercent)
	Sets the end percent in the U direction Created in NX8.5.1.

void	SetEndVDistance (double endVDistance)
	Sets the end distance in the V direction Created in NX8.5.1.

void	SetEndVPercent (double endVPercent)
	Sets the end percent in the V direction Created in NX8.5.1.

void	SetName (const NXString &name)
	Sets the name Created in NX7.0.0.

void	SetName (const char *name)
	Sets the name Created in NX7.0.0.

void	SetNumberOfUPoints (int numberOfUPoints)
	Sets the number of U points Created in NX8.5.1.

void	SetNumberOfVPoints (int numberOfVPoints)
	Sets the number of V points Created in NX8.5.1.

void	SetPointDataDefinition (NXOpen::CAM::InspectionSurfaceFeatureBuilder::PointDataDefinitionType pointDataDefinition)
	Sets the point data definition type Created in NX8.5.1.

void	SetPointDefinitionChanged (bool isChanged)
	Sets the point data definition changed flag Created in NX9.0.0.

void	SetReverseDirection (bool reverseDirection)
	Sets the reverse direction Created in NX7.0.0.

void	SetStartUDistance (double startUDistance)
	Sets the start distance in the U direction Created in NX8.5.1.

void	SetStartUPercent (double startUPercent)
	Sets the start percent in the U direction Created in NX8.5.1.

void	SetStartVDistance (double startVDistance)
	Sets the start distance n the V direction Created in NX8.5.1.

void	SetStartVPercent (double startVPercent)
	Sets the start percent n the V direction Created in NX8.5.1.

void	SetUStartEndMode (NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartEndModeType uStartEndMode)
	Sets the U start end mode Created in NX8.5.1.

void	SetVStartEndMode (NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartEndModeType vStartEndMode)
	Sets the V start end mode Created in NX8.5.1.

double	StartUDistance ()
	Returns the start distance in the U direction Created in NX8.5.1.

double	StartUPercent ()
	Returns the start percent in the U direction Created in NX8.5.1.

double	StartVDistance ()
	Returns the start distance n the V direction Created in NX8.5.1.

double	StartVPercent ()
	Returns the start percent n the V direction Created in NX8.5.1.

NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartEndModeType	UStartEndMode ()
	Returns the U start end mode Created in NX8.5.1.

NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartEndModeType	VStartEndMode ()
	Returns the V start end mode Created in NX8.5.1.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CMM Inspection Curve Feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionSurfaceFeatureBuilder

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionSurfaceFeatureBuilder::PointDataDefinitionType

The method used to define point data.

Enumerator:

PointDataDefinitionTypeNone	No point data is defined.
PointDataDefinitionTypePointSet	A set of points are defined using parameters.
PointDataDefinitionTypeIndividualPoints	Individual points are defined.

enum NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartEndModeType

the method used to define the start and end points

Enumerator:

StartEndModeTypePercentage	Percent.
StartEndModeTypeDistance	Distance.

Member Function Documentation

double NXOpen::CAM::InspectionSurfaceFeatureBuilder::EndUDistance ( )

Returns the end distance in the U direction
Created in NX8.5.1.

License requirements : None

double NXOpen::CAM::InspectionSurfaceFeatureBuilder::EndUPercent ( )

Returns the end percent in the U direction
Created in NX8.5.1.

License requirements : None

double NXOpen::CAM::InspectionSurfaceFeatureBuilder::EndVDistance ( )

Returns the end distance in the V direction
Created in NX8.5.1.

License requirements : None

double NXOpen::CAM::InspectionSurfaceFeatureBuilder::EndVPercent ( )

Returns the end percent in the V direction
Created in NX8.5.1.

License requirements : None

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::ErasePointDefinitionDisplay ( )

Erases display of point definition data
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

bool NXOpen::CAM::InspectionSurfaceFeatureBuilder::IsPointDefinitionChanged ( )

Returns the point data definition changed flag
Created in NX9.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionSurfaceFeatureBuilder::Name ( )

Returns the name
Created in NX7.0.0.

License requirements : None

int NXOpen::CAM::InspectionSurfaceFeatureBuilder::NumberOfUPoints ( )

Returns the number of U points
Created in NX8.5.1.

License requirements : None

int NXOpen::CAM::InspectionSurfaceFeatureBuilder::NumberOfVPoints ( )

Returns the number of V points
Created in NX8.5.1.

License requirements : None

NXOpen::CAM::InspectionSurfaceFeatureBuilder::PointDataDefinitionType NXOpen::CAM::InspectionSurfaceFeatureBuilder::PointDataDefinition ( )

Returns the point data definition type
Created in NX8.5.1.

License requirements : None

NXOpen::SelectPointList* NXOpen::CAM::InspectionSurfaceFeatureBuilder::PointSelector ( )

Returns the user specified point selector
Created in NX8.5.1.

License requirements : None

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::PreviewPointData ( bool showExisting )

Creates preview of point definition data
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

showExisting showexisting

bool NXOpen::CAM::InspectionSurfaceFeatureBuilder::ReverseDirection ( )

Returns the reverse direction
Created in NX7.0.0.

License requirements : None

NXOpen::SelectFace* NXOpen::CAM::InspectionSurfaceFeatureBuilder::SelectedFace ( )

Returns the selected face
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetEndUDistance ( double endUDistance )

Sets the end distance in the U direction
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

endUDistance endudistance

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetEndUPercent ( double endUPercent )

Sets the end percent in the U direction
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

endUPercent endupercent

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetEndVDistance ( double endVDistance )

Sets the end distance in the V direction
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

endVDistance endvdistance

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetEndVPercent ( double endVPercent )

Sets the end percent in the V direction
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

endVPercent endvpercent

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetName ( const NXString & name )

Sets the name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetName ( const char * name )

Sets the name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetNumberOfUPoints ( int numberOfUPoints )

Sets the number of U points
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

numberOfUPoints numberofupoints

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetNumberOfVPoints ( int numberOfVPoints )

Sets the number of V points
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

numberOfVPoints numberofvpoints

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetPointDataDefinition ( NXOpen::CAM::InspectionSurfaceFeatureBuilder::PointDataDefinitionType pointDataDefinition )

Sets the point data definition type
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

pointDataDefinition pointdatadefinition

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetPointDefinitionChanged ( bool isChanged )

Sets the point data definition changed flag
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

isChanged ischanged

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetReverseDirection ( bool reverseDirection )

Sets the reverse direction
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

reverseDirection reversedirection

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetStartUDistance ( double startUDistance )

Sets the start distance in the U direction
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

startUDistance startudistance

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetStartUPercent ( double startUPercent )

Sets the start percent in the U direction
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

startUPercent startupercent

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetStartVDistance ( double startVDistance )

Sets the start distance n the V direction
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

startVDistance startvdistance

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetStartVPercent ( double startVPercent )

Sets the start percent n the V direction
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

startVPercent startvpercent

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetUStartEndMode ( NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartEndModeType uStartEndMode )

Sets the U start end mode
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

uStartEndMode ustartendmode

void NXOpen::CAM::InspectionSurfaceFeatureBuilder::SetVStartEndMode ( NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartEndModeType vStartEndMode )

Sets the V start end mode
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

vStartEndMode vstartendmode

double NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartUDistance ( )

Returns the start distance in the U direction
Created in NX8.5.1.

License requirements : None

double NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartUPercent ( )

Returns the start percent in the U direction
Created in NX8.5.1.

License requirements : None

double NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartVDistance ( )

Returns the start distance n the V direction
Created in NX8.5.1.

License requirements : None

double NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartVPercent ( )

Returns the start percent n the V direction
Created in NX8.5.1.

License requirements : None

NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartEndModeType NXOpen::CAM::InspectionSurfaceFeatureBuilder::UStartEndMode ( )

Returns the U start end mode
Created in NX8.5.1.

License requirements : None

NXOpen::CAM::InspectionSurfaceFeatureBuilder::StartEndModeType NXOpen::CAM::InspectionSurfaceFeatureBuilder::VStartEndMode ( )

Returns the V start end mode
Created in NX8.5.1.

License requirements : None

The documentation for this class was generated from the following file:

CAM_InspectionSurfaceFeatureBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
