Represents a CMM inspection sphere feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionSphereFeatureBuilder

Created in NX7.0.0. More...

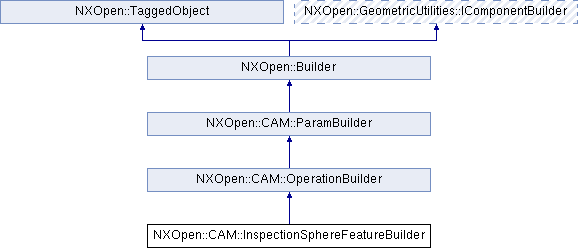

Inheritance diagram for NXOpen::CAM::InspectionSphereFeatureBuilder:

Public Member Functions
double	CenterPointX ()
	Returns the sphere center point X coordinate Created in NX7.0.0.

double	CenterPointY ()
	Returns the sphere center point Y coordinate Created in NX7.0.0.

double	CenterPointZ ()
	Returns the sphere center point Z coordinate Created in NX7.0.0.

NXOpen::CAM::CamInspectionOperationCsysreferencetypes	CsysRefType ()
	Returns the csys ref type Created in NX7.0.0.

double	Diameter ()
	Returns the sphere diameter Created in NX7.0.0.

NXOpen::CAM::CamInspectionOperationInneroutertypes	InnerOuterType ()
	Returns the inner outer type (spherical hole or spherical boss) Created in NX7.0.0.

NXString	Name ()
	Returns the sphere inspection feature name Created in NX7.0.0.

NXOpen::SelectNXObject *	SelectSphere ()
	Returns the selected sphere Created in NX7.0.0.

void	SetCenterPointX (double centerPointX)
	Sets the sphere center point X coordinate Created in NX7.0.0.

void	SetCenterPointY (double centerPointY)
	Sets the sphere center point Y coordinate Created in NX7.0.0.

void	SetCenterPointZ (double centerPointZ)
	Sets the sphere center point Z coordinate Created in NX7.0.0.

void	SetCsysRefType (NXOpen::CAM::CamInspectionOperationCsysreferencetypes csysRefType)
	Sets the csys ref type Created in NX7.0.0.

void	SetDiameter (double diameter)
	Sets the sphere diameter Created in NX7.0.0.

void	SetInnerOuterType (NXOpen::CAM::CamInspectionOperationInneroutertypes innerOuterType)
	Sets the inner outer type (spherical hole or spherical boss) Created in NX7.0.0.

void	SetName (const NXString &name)
	Sets the sphere inspection feature name Created in NX7.0.0.

void	SetName (const char *name)
	Sets the sphere inspection feature name Created in NX7.0.0.

void	UpdateParams ()
	Updates sphere inspection feature characteristic parameters based on selected geometry Created in NX7.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Detailed Description

Represents a CMM inspection sphere feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionSphereFeatureBuilder

Created in NX7.0.0.

Member Function Documentation

double NXOpen::CAM::InspectionSphereFeatureBuilder::CenterPointX ( )

Returns the sphere center point X coordinate
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionSphereFeatureBuilder::CenterPointY ( )

Returns the sphere center point Y coordinate
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionSphereFeatureBuilder::CenterPointZ ( )

Returns the sphere center point Z coordinate
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::CamInspectionOperationCsysreferencetypes NXOpen::CAM::InspectionSphereFeatureBuilder::CsysRefType ( )

Returns the csys ref type
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionSphereFeatureBuilder::Diameter ( )

Returns the sphere diameter
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::CamInspectionOperationInneroutertypes NXOpen::CAM::InspectionSphereFeatureBuilder::InnerOuterType ( )

Returns the inner outer type (spherical hole or spherical boss)
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionSphereFeatureBuilder::Name ( )

Returns the sphere inspection feature name
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::CAM::InspectionSphereFeatureBuilder::SelectSphere ( )

Returns the selected sphere
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionSphereFeatureBuilder::SetCenterPointX ( double centerPointX )

Sets the sphere center point X coordinate
Created in NX7.0.0.
