Represents a CMM Inspection Pattern Feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionPatternFeatureBuilder

Created in NX7.0.0. More...

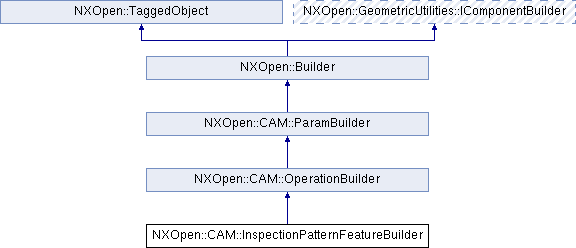

Inheritance diagram for NXOpen::CAM::InspectionPatternFeatureBuilder:

Public Types
enum	FeatureFilterTypes { FeatureFilterTypesNone, FeatureFilterTypesPoints, FeatureFilterTypesLines, FeatureFilterTypesPlanes, FeatureFilterTypesCurves, FeatureFilterTypesHoles, FeatureFilterTypesPins, FeatureFilterTypesSpheres, FeatureFilterTypesSurfaces }
	Filter for the list of available inspection features for inclusion in the pattern. More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
NXOpen::CAM::InspectionPatternFeatureBuilder::FeatureFilterTypes	FeatureFilter ()
	Returns the feature filter used to filter the list of available features Created in NX7.0.0.

std::vector< NXString >	GetSubFeatures ()
	Returns the current subfeatures.

NXString	Name ()
	Returns the pattern feature name Created in NX7.0.0.

NXOpen::SelectNXObjectList *	SelectFeatures ()
	Returns the select features button used to select features from the screen Created in NX7.0.0.

void	SetFeatureFilter (NXOpen::CAM::InspectionPatternFeatureBuilder::FeatureFilterTypes featureFilter)
	Sets the feature filter used to filter the list of available features Created in NX7.0.0.

void	SetName (const NXString &name)
	Sets the pattern feature name Created in NX7.0.0.

void	SetName (const char *name)
	Sets the pattern feature name Created in NX7.0.0.

void	SetSubFeatures (std::vector< NXString > &subFeatures)
	Sets the current subfeatures.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CMM Inspection Pattern Feature builder
To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionPatternFeatureBuilder

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionPatternFeatureBuilder::FeatureFilterTypes

Filter for the list of available inspection features for inclusion in the pattern.

Enumerator:

FeatureFilterTypesNone	All inspection features will be listed.
FeatureFilterTypesPoints	Only point inspection features will be listed.
FeatureFilterTypesLines	Only line inspection features will be listed.
FeatureFilterTypesPlanes	Only plane inspection features will be listed.
FeatureFilterTypesCurves	Only curve inspection features will be listed.
FeatureFilterTypesHoles	Only inner circle, cylinder, and cone inspection features will be listed.
FeatureFilterTypesPins	Only outer circle, cylinder, and cone inspection features will be listed.
FeatureFilterTypesSpheres	Only sphere inspection features will be listed.
FeatureFilterTypesSurfaces	Only surface inspection features will be listed.

Member Function Documentation

NXOpen::CAM::InspectionPatternFeatureBuilder::FeatureFilterTypes NXOpen::CAM::InspectionPatternFeatureBuilder::FeatureFilter ( )

Returns the feature filter used to filter the list of available features
Created in NX7.0.0.

License requirements : None

std::vector<NXString> NXOpen::CAM::InspectionPatternFeatureBuilder::GetSubFeatures ( )

Returns the current subfeatures.

Returns: Current subfeatures
Created in NX7.5.3.

License requirements : None

NXString NXOpen::CAM::InspectionPatternFeatureBuilder::Name ( )

Returns the pattern feature name
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::CAM::InspectionPatternFeatureBuilder::SelectFeatures ( )

Returns the select features button used to select features from the screen
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionPatternFeatureBuilder::SetFeatureFilter ( NXOpen::CAM::InspectionPatternFeatureBuilder::FeatureFilterTypes featureFilter )

Sets the feature filter used to filter the list of available features
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

featureFilter featurefilter

void NXOpen::CAM::InspectionPatternFeatureBuilder::SetName ( const NXString & name )

Sets the pattern feature name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionPatternFeatureBuilder::SetName ( const char * name )

Sets the pattern feature name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

name name

void NXOpen::CAM::InspectionPatternFeatureBuilder::SetSubFeatures ( std::vector< NXString > & subFeatures )

Sets the current subfeatures.

Created in NX7.5.3.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

subFeatures Current subfeatures
NOTE: The full Unicode character set is not supported for this parameter.

The documentation for this class was generated from the following file:

CAM_InspectionPatternFeatureBuilder.hxx
